Quicksilver 88688A23 Installation, Operation And Maintenance Instructions page 4

Starboard Side Control
Module Cable Installation
All MerCruiser Models
(Except MIE) and Outboard
Models (250 HP 3 Litre and
Below)
IMPORTANT: Control modules are stamped port and
starboard and control cables must be installed ac-
cordingly.
Before tightening cable fastener locknut, be sure that
pin on end of cable fastener is completely thru cable
end and shift/throttle lever. A pin, that is partially thru
cable and lever, may cause fastener to bend when
locknut is tightened.

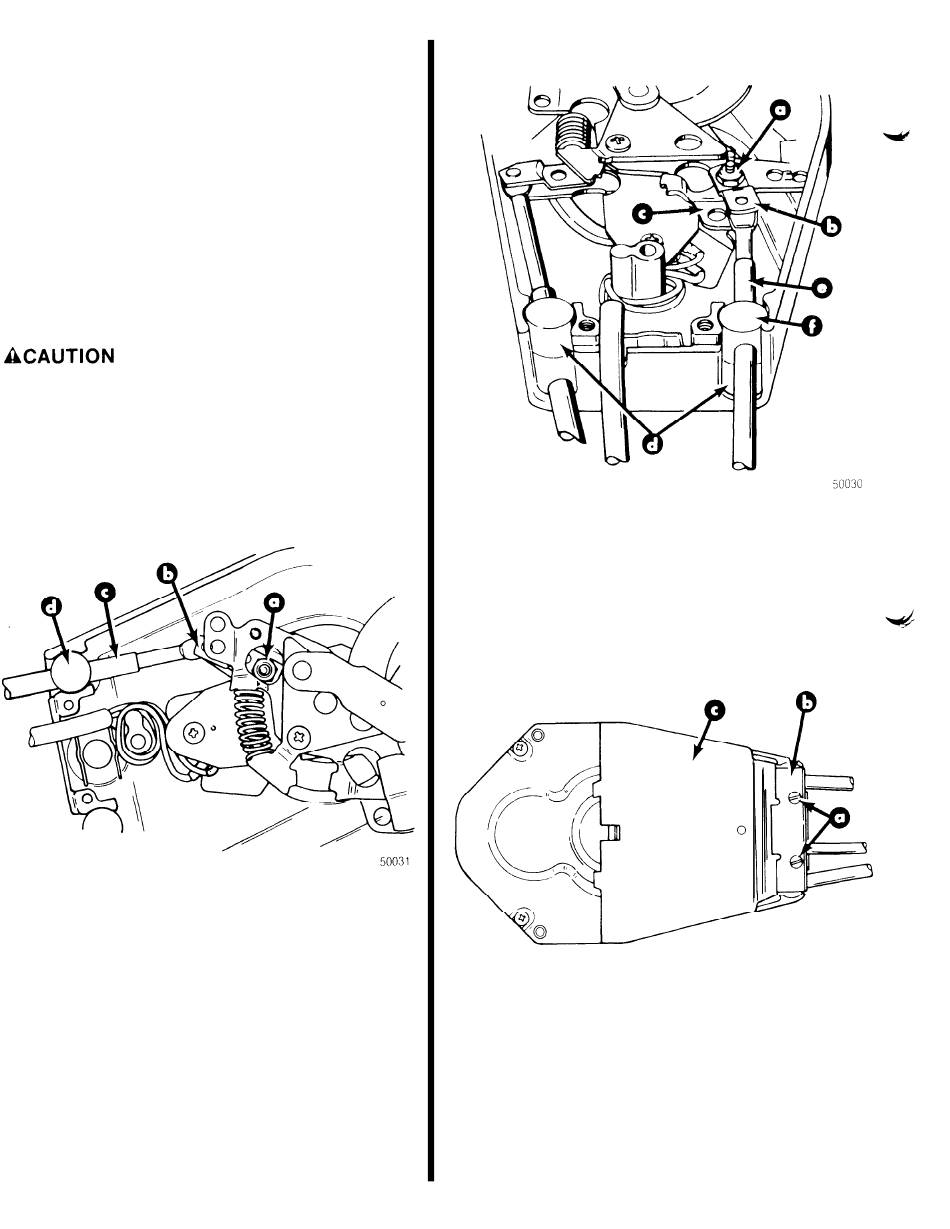

Shift Cable
a - Cable Fastener Locknut
b - Cable Fastener
c - Shift Cable
d - Cable Anchor Barrel
Torque shift cable fastener locknut to 20 to 25 Ibs. in.
(2.3 to 2.8 N.m.)
Throttle Cable
a - Cable Fastener Locknut
b - Cable Fastener
c Throttle Lever
d - Spacers (From Parts Bag)
-
e Throttle Cable
f Cable Anchor Barrel
Torque throttle cable fastener locknut to 20 to 25 lbs.
in. (2.3 to 2.8 N.m.)
a - S c r e w s
b - Cable Retainer
c - Access Cover
Position access cover and cable retainer onto back
side of control and secure both using 2 screws. Torque
screws to 60 Ibs. in. (7 N m )
