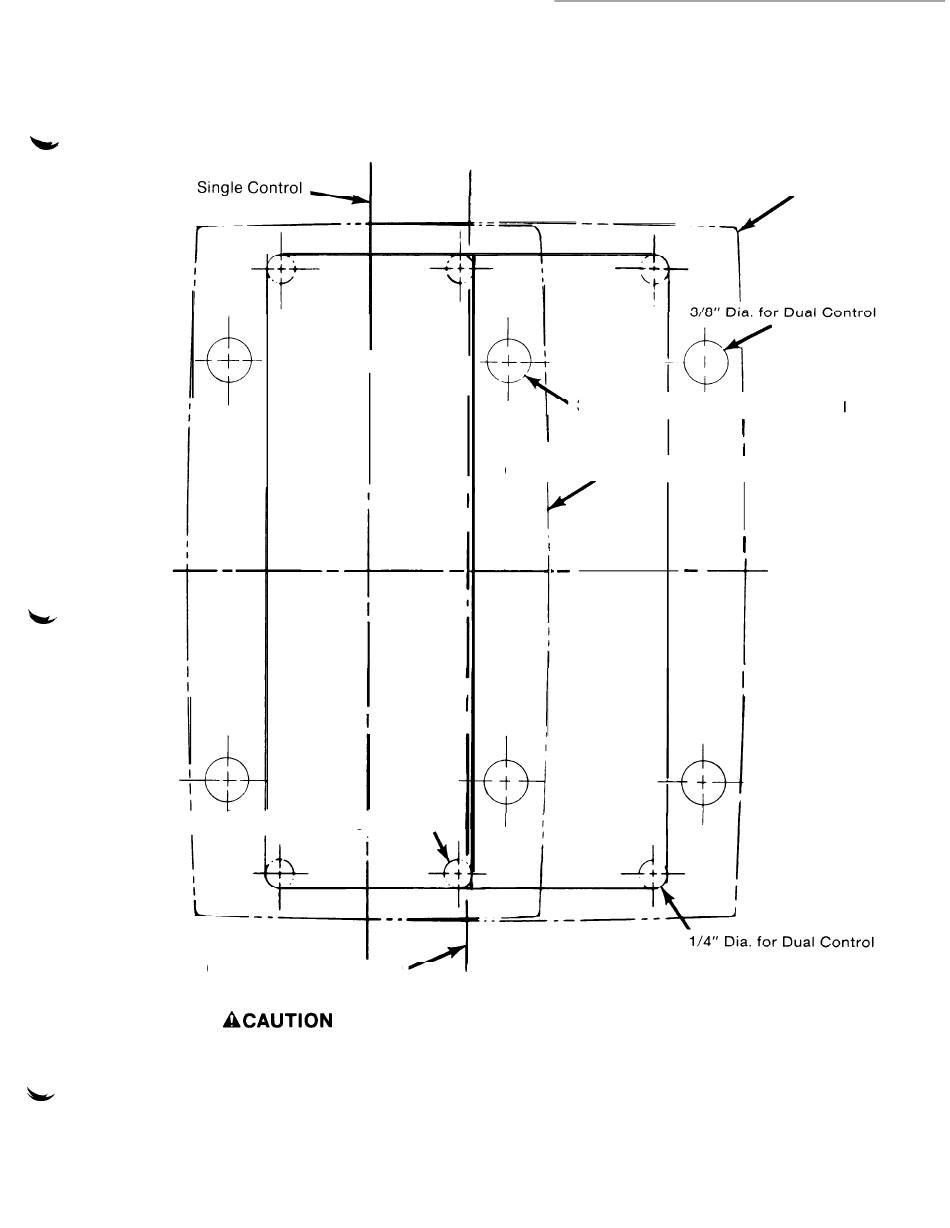

Template for Dual and Single
Console Controls
Outline of Remote Control Cover for Dual Control
Centerline for
a - l
3/8" (9.53mm) Dia. for Single Control
Outline of Remote Control Cover for Single Control
1/4" (.25" or 6.35mm) Dia. for Single Control
Centerline for Dual Control
Area (located directly under mounting panel) must be free from obstructions
and must allow cables to form a gradual bend when routed toward stern of
boat.
