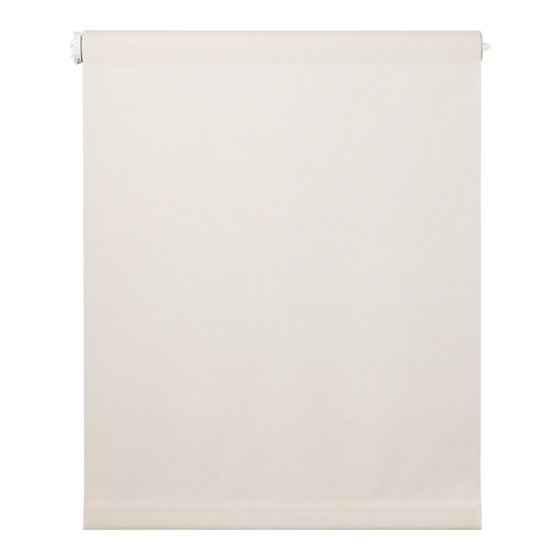

- Page 1 Owner’s Manual RTS Motorized Shades...
-
Page 2: Table Of Contents
Table of Contents About Your Motorized Shade ..................... 3 Basic Shade Control ....................3 Control Features ....................... 4 Shade Adjustments ......................5 Adjusting Your Shade’s Default Upper Limit ............5 Adjusting Your Shade’s Default Lower Limit ............. 5 Adjusting Your Shade’s “MY” Position ..............6 Adding Additional Controls .................... -
Page 3: About Your Motorized Shade
Please be sure to read and remove the securing tape and label before operating your motorized shade. Remove securing tape and Power Power cable position Motor RF antenna wire Antenna cable Antenna and power cable away from wire wire roller tube (see A) or outside of headrail (see B &... -
Page 4: Control Features
Control Features Operate your shade with your hand held remote or wireless wall switch control. Your controls have been programmed by Springs Window Fashions to control your shade. The upper and lower limits and “MY” position have already been set. If you are not satisfied with any default upper, lower or “MY”... -
Page 5: Shade Adjustments
Shade Adjustments Adjusting your Shade’s Default Upper Limit (OPTIONAL) If you would like to adjust your shade’s default upper limit *PRODUCT SAFETY NOTE: • For Cellular, Pleated, Classic Roman, Soft Roman and Woven Wood - Adjusting the motor too tight can cause the motor to fail and/or break/fray the internal cording. •... -
Page 6: Adjusting Your Shade's "My" Position
Adjusting your Shade’s “MY” Position (OPTIONAL) Your control has been programmed by Springs Window Fashions to control your shade. The “MY” position has been set and you may choose to adjust this setting. When adjusting the “MY” position on your product sharing a channel, it is important to adjust each individually. -
Page 7: Adding A Control Or Channel
Adding a Control or Channel Do not press the Programming Button outside of this sequence unless otherwise instructed by a Customer Service Agent. Button Programming Programming Programming Button Button Button Remote must be open to access programming button Start with the control or channel that currently operates the shade. TO COPY: Using a paperclip or similar item, press and hold the programming button until the shade jogs. -
Page 8: Deleting A Control Or Channel
Deleting a Control or Channel Start with the control or channel that you intend to keep and currently operates the shade. TO COPY: Using a paperclip or similar item, press and hold the programming button until the shade jogs. A jog is a brief up and down movement of the shade. -
Page 9: Creating Group Control
Creating Group Control NOTE: Use the programming sequence below to control multiple shades with one control, also known as “creating a group.” Be sure to review and understand “Adding a Control” before moving on to this programming sequence. You can also review the online video “Copy and Paste Part 1 and Part 2”... -
Page 10: Helpful Tips And Faqs
Helpful Tips and FAQs Please see below for helpful hints and suggestions should you encounter issues with your motorized shades. “How-To” videos including how to adjust your shades upper and lower limits, set a ‘MY’ position, or Copy and Paste. For video tutorials and the most up-to-date troubleshooting information, visit our Motorization Knowledge Base at www.motorization.support... -
Page 11: Additional Troubleshooting
FAQ: My motorized shade does not travel to/stop to the desired upper or lower limit. • The motorized shade upper and/or lower limit may need to be adjusted to reach your preferred positions. Page 5 explains how to adjust the upper and lower limits of your shade. - Page 12 For video tutorials and additional help, visit www.motorization.support Customer Service 1-800-221-6352 motorization.support@springswindowfashions.com SWF 95-0203-01 © Copyright Somfy Systems, Inc 06/2018...
