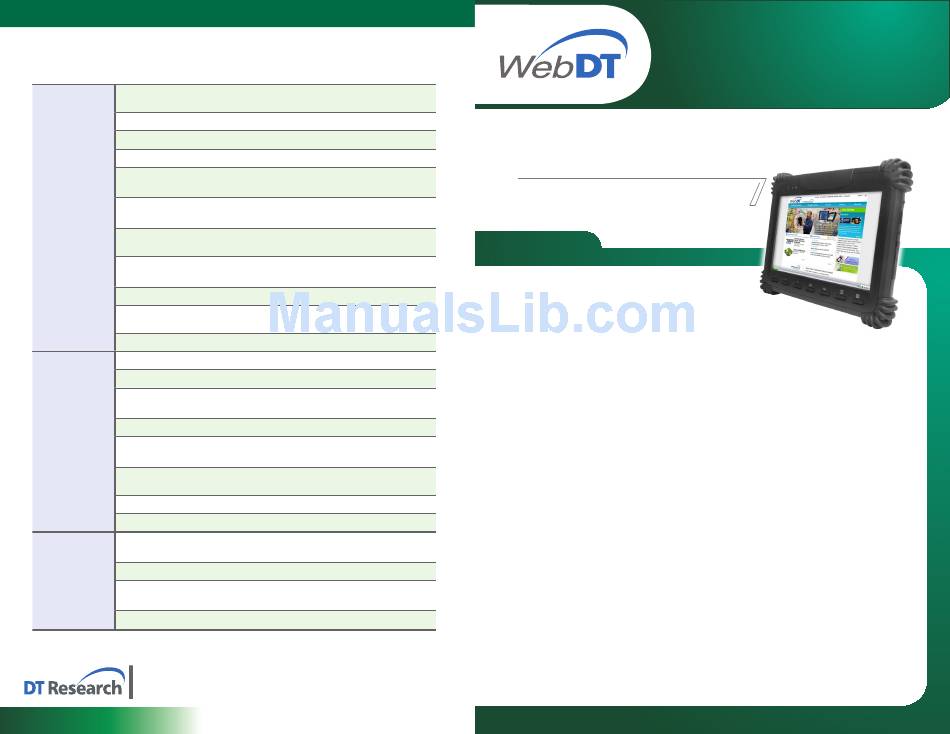

WebDT 390 Basic Operation Manual

THE WebDT 390
SPECIFICATIONS
Display
Display Resolution
Processor
Memory (RAM)
Storage
Operating Systems
System
Bluetooth
Input and Control
Buttons
Indicator
Input/Output Ports
Audio
Enclosure
Protective Grips
Dimensions
(H x W x D)
Weight
Mechanical
Battery Pack
AC/DC Adapter
Power Cords
Stylus
Water and Dust
Resistance
Regulatory
Environmental
Operating
Temperature
Humidity
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2010, DT Research, Inc. All Rights Reserved.
DT Research and WebDT are registered trademarks of DT Research, Inc.
8
ENGLISH signage dtri com
8.9" (diag.) TFT LCD with Resistive Touch and LED
backlight; outdoor-viewable option
1024 x 600 (WSVGA)
Intel Atom™ processor Z530 1.6GHz
®
1GB to 2GB DDR2 533MHZ
2GB to 16GB Internal Flash Module,
32GB to 64GB SSD
Windows XP Embedded;
®
Windows XP Professional or Linux
®
YES; Bluetooth 2.1 with EDR Class 2 (eGM-A1E)
(USB interface)
1 Power button, 7 Front buttons and
1 Trigger button
1 Power/ Battery status LED and 1 WLAN active LED
1 DC-in Jack; 1 Microphone-in and
1 Headphone-out Jacks; 1 USB 2.0 port
Built-in speakers
ABS + PC Plastic
Rubber with handstrap
7.7 x 10 x 1.25 (in);
196 x 256 x 32 (mm)
2.43 lbs (1.1 kg)
Internal (2S2P; 7.4V, 3760mAh)
Optional: External (2S2P; 7.4V, 3760mAh)
Input: 100 – 240VAC
Output: 18.5VDC@2.4A
North America, EU, UK, China and Japan
Non-electronic tip
IP54
FCC Class B, CE, C-Tick, RoHS compliant
Operation: 0°C - 40°C
Storage: 0°C - 60°C
0% - 90% non-condensing
http://www.dtresearch.com
BOG060810DT390ENG
Mobile Tablet
WebDT 390
BASIC OPERATION GUIDE
ENGLISH
INTRODUCTION
Thank you for acquiring the latest addition to DT
Research's line of mobile tablets— the WebDT 390.
Featuring an IP54-rated, slim yet robust enclosure, the
two-pound WebDT 390 with 8.9" TFT display is powered by the Intel
offering optimal combinations of performance and power savings. An external battery
expansion option provides approximately 3-4 hours of additional battery operation for up
to eight hours of mobile usage.
The WebDT 390 is available with Windows
or Linux operating systems. Each software operating system features web browser,
client/server computing software, media player, accessories, and applications support.
PACKAGE CONTENTS
• WebDT 390 with Internal Battery Pack, Stylus and Bumpers
• AC-DC Power Adapter with Power Cord
• Mini USB to USB Cable
• Basic Operation Guide
Major options, depending on configuration:
• Desktop Charging Cradle with DC-in Power Jack and Ethernet/VGA/USB Ports
• External Battery Pack
• External Battery Charger Kit
• Vehicle/ Wall Mount Cradle
• 5-System Gang Charger
* If your WebDT 390 contains MSR, camera or scanner module, please refer to the POS
module operation guide for detailed operation.
Atom™ processor,
®
XP Embedded, Windows XP Professional
® ®
