OCCUPATION OF THE XLR-CONNECTION

DMX OUTPUT

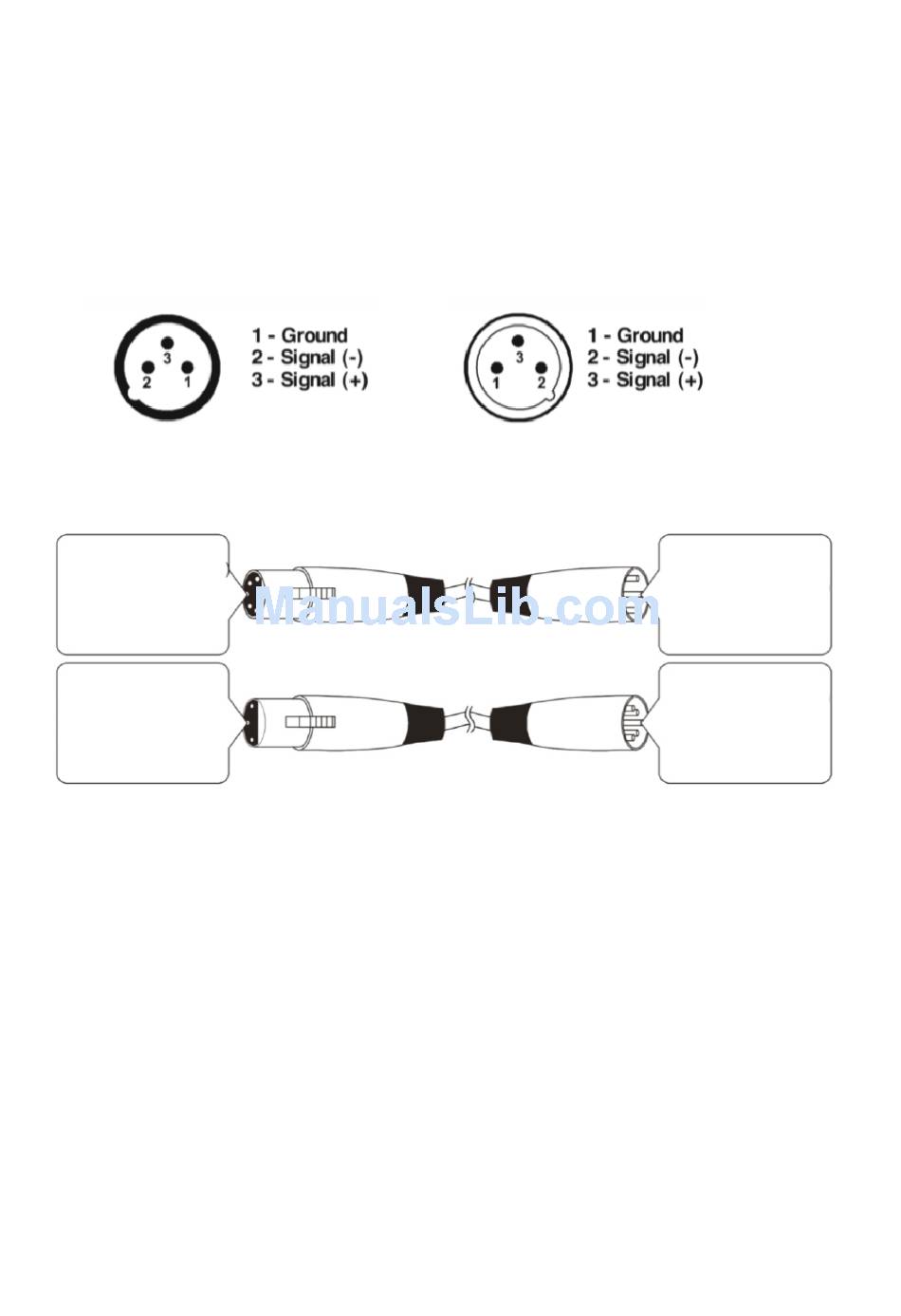

XLR mounting-socket
The transformation of the controller line of 3 pins and 5 pins (plug and socket)
5 pins canon (socket)
Pin 1: GND screen
Pin 2: Signal
Pin 3: Signal +
Pin 4: N/C
Pin 5: N/C
3-pins canon (SOCKET)
Pin 1: GND screen
Pin 2: Signal
Pin 3: Signal +
this process to link the second, third, and fourth
units.
5. Supply electric power: Plug electric mains
power cords into each unit's IEC socket, then
plug the other end of the mains power cord into
proper electric power supply sockets, starting
with the first unit. Do not supply power before
the whole system is set up and connected
properly.

DMX INPUT

XLR mounting-plug
3-Pins canon (PLUG)
Pin 1: GND screen
Pin 2: Signal
Pin 3: Signal +
5 pins canon (PLUG)
Pin 1: GND screen
Pin 2: Signal
Pin 3: Signal +
Pin 4: N/C
Pin 5: N/C
