After switching on, the Stratus fazer will automat-
ically detect whether DMX 512 data is received or
not. If there is no data received, the problem may be:
• The XLR cable from the controller is not con-
nected with the input of the Stratus fazer.
• The controller is switched off or defective, the
cable or connector is detective, or the signal
wires are swapped in the input connector.

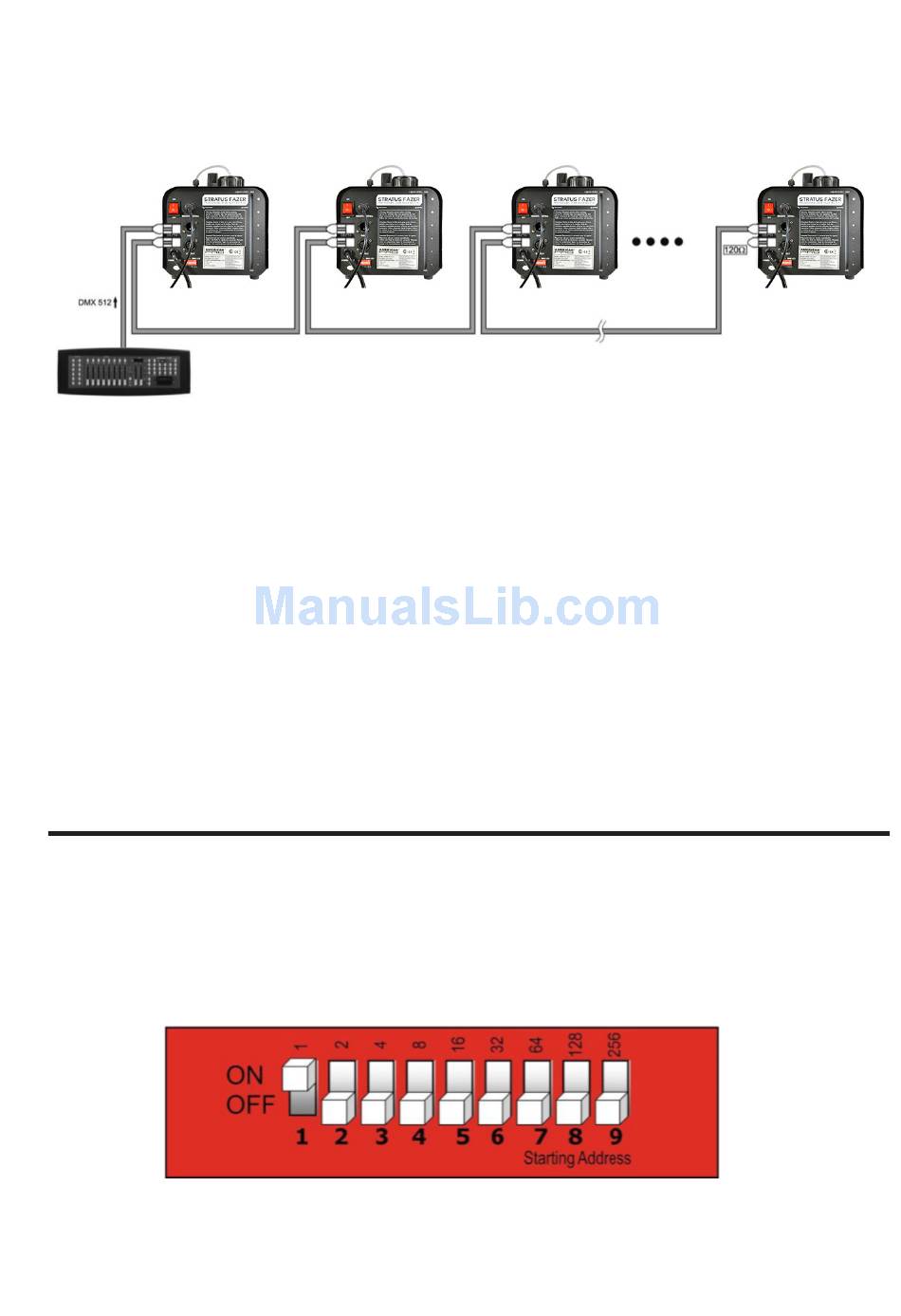

Note: It's necessary to insert a XLR termination
plug (with 120 Ohm) in the last fixture in order to
ensure proper transmission on the DMX data link.

8. DIPSWITCH SETTING FOR DMX MODE

• DMX products must have their own "address" to
receive DMX signals.
• Addresses on the controller are set by flipping
the appropriate DMX dip switches #1 - #9.
P. 10
Tecshow Stratus Fazer | English version
Note : Link all cables and set dip switches before connecting electric power.
