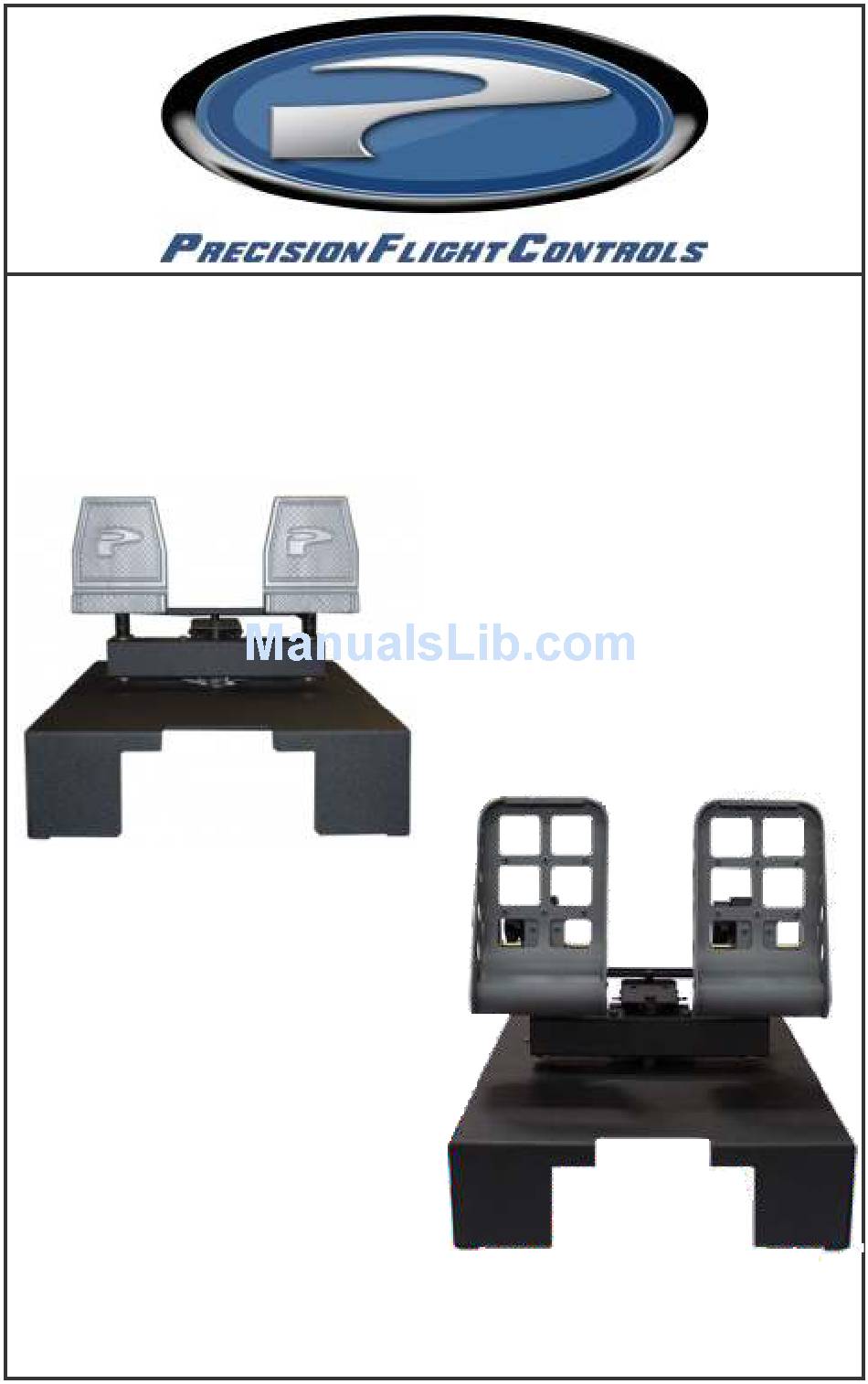

- Page 1 Cirrus Rudder Pedals User Guide GENERAL AVIATION BOEING STYLE...

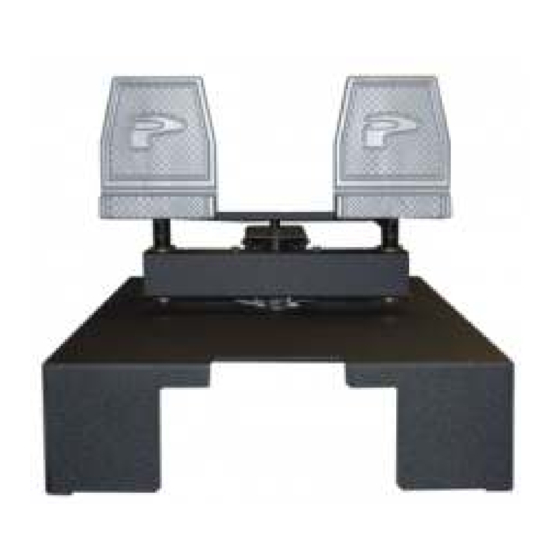

- Page 2 Introduction Congratulations on your purchase of the PFC USB Rudder Pedals. The Cirrus Pedals GA Style Made with powder coated solid aluminum base. The mechanism is a reinforced steel tiller bar design. Our rudder pedals are equipped with potentiometers for proportional toe braking.
- Page 3 USB Rudder Pedals Connection THE BACK OF YOUR COMPUTER a/c power plug Keyboard/Mouse USB Cable on/off switch USB ports Left Brake Right Brake com/serial one com/serial two (X-axis) (Y-axis) printer port (Rudder Axis) Windows 10, Windows 8 or Windows 7 Installation Requirements PC running Windows 10, 8 or 7 —...
- Page 4 PFC USB Rudder Pedals Windows Calibration Windows 10 and Windows 8 Game Controller Calibration 1. Click on Start on the Windows® Taskbar and then select Devices and Printers. 2. In the Devices and Printers windows, Right Click on PFC USB Pedals 2 3.
- Page 5 Macintosh Installation Requirements OS 10.6 or later — One open USB Port (additional ports for each additional device) — USB Compatible software. — Notes The Cirrus and Professional pedals do not require any driver. — PFC USB Rudder Pedals Macintosh Calibration 1.
- Page 6 14. Click on OK to go back to the Settings screen. 15. From the main setting screen, click on the Sensitivities icon. 16. Next click on the drop arrow called Joystick Type. The drop-menu list, choose PFC USB Pedals 2. 17.
- Page 7 14. Now, click on the Calibration Tab. 15. From the calibration screen, click on the drop arrow called Controller Type. The drop-menu list, choose PFC USB Pedals 2. 16. On the screen, you will see Simple and Advanced buttons, select the Advanced 17.
- Page 8 Limited Warranty Precision Flight Controls, Inc. (PFC) warrants, to the original owner, that its products are free from defects in materials and workmanship. PFC will, at its option, either repair or replace any part of its products that prove defective by reason of improper workmanship or materials.
