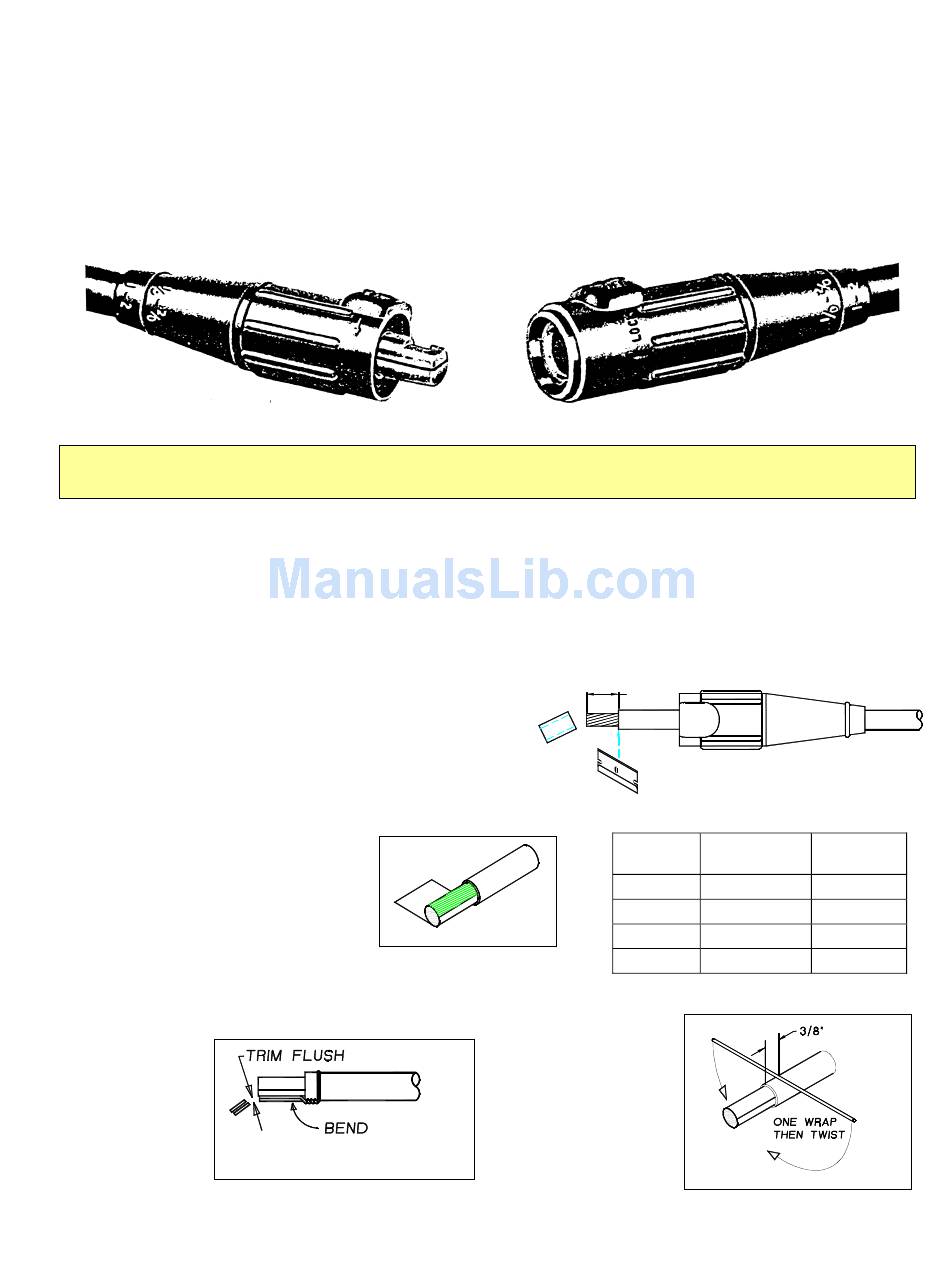

ASSEMBLY INSTRUCTIONS
E1012 ATTACHABLE CONNECTORS

ASSEMBLY PROCEDURE

1. Cut off cable end of insulator to match cable diameter.
2. Coat cable and ID of sleeve at the cable end with a little liquid soap, or cable pulling
compound to make assembly easier. Do not coat contacts or ID of sleeve where
contact fits, as this will cause the contact to slip within sleeve. Push cable
through insulator from rear of sleeve
3. Strip cable jacket 1 1/8". Wrap bare
conductor with copper shim. See Table 1
for quantity of copper shim.
4. The length of bare copper wire is included
for cable jacket retention. Wrap the wire
tightly around the cable
jacket 3/8"-1/2" from the
end of the jacket. Bend
the ends down against the
conductor and squeeze
twisted portion tightly against cable jacket so that it
will clear inside of insulator during assembly. Cut
loose ends of wire off flush with end of conductor.
c a m - l o k
NOTE: Use copper (CU) wire only.
®
1 1/ 8"

COPPER SHIM SELECTION

Contact
Cable Size
Dia
AWG
7/8"
#1, #2
7/8"
1/0, 2/0
1"
2/0
1"
3/0, 4/0
Table 1
EB 8
Number
of Shims
2
1
2
1
