E1015 ATTACHABLE CONNECTORS
NOTE
1. Use copper (CU) wire only.
2. Use #8--#4 AWG wire.
3. Connectors rated 105°C, 600 V
GENERAL
The insulator sleeve has a plastic ring
inside of the sleeve to prevent contact
pushing back too far to prevent rotation of
contact. The ring has a "U" shaped
groove in the front edge under the rib on
the OD of the sleeve.
The contacts have a rivet head
which mates with this "U" shaped
groove to position the contact.
ASSEMBLY STEPS
1. Cut off cable end of insulator to match
cable diameter. The first section fits
cable OD of .250 up to .359 diameter.
The second section fits cable OD of
.375 through .468 diameter
2. Coat cable and ID of sleeve at the
cable end with a little liquid soap, or
cable pulling compound to make
assembly easier. DO NOT COAT
CONTACTS OR ID OF SLEEVE
WHERE CONTACT FITS, AS THIS
WILL CAUSE THE CONTACT TO
SLIP WITHIN SLEEVE.

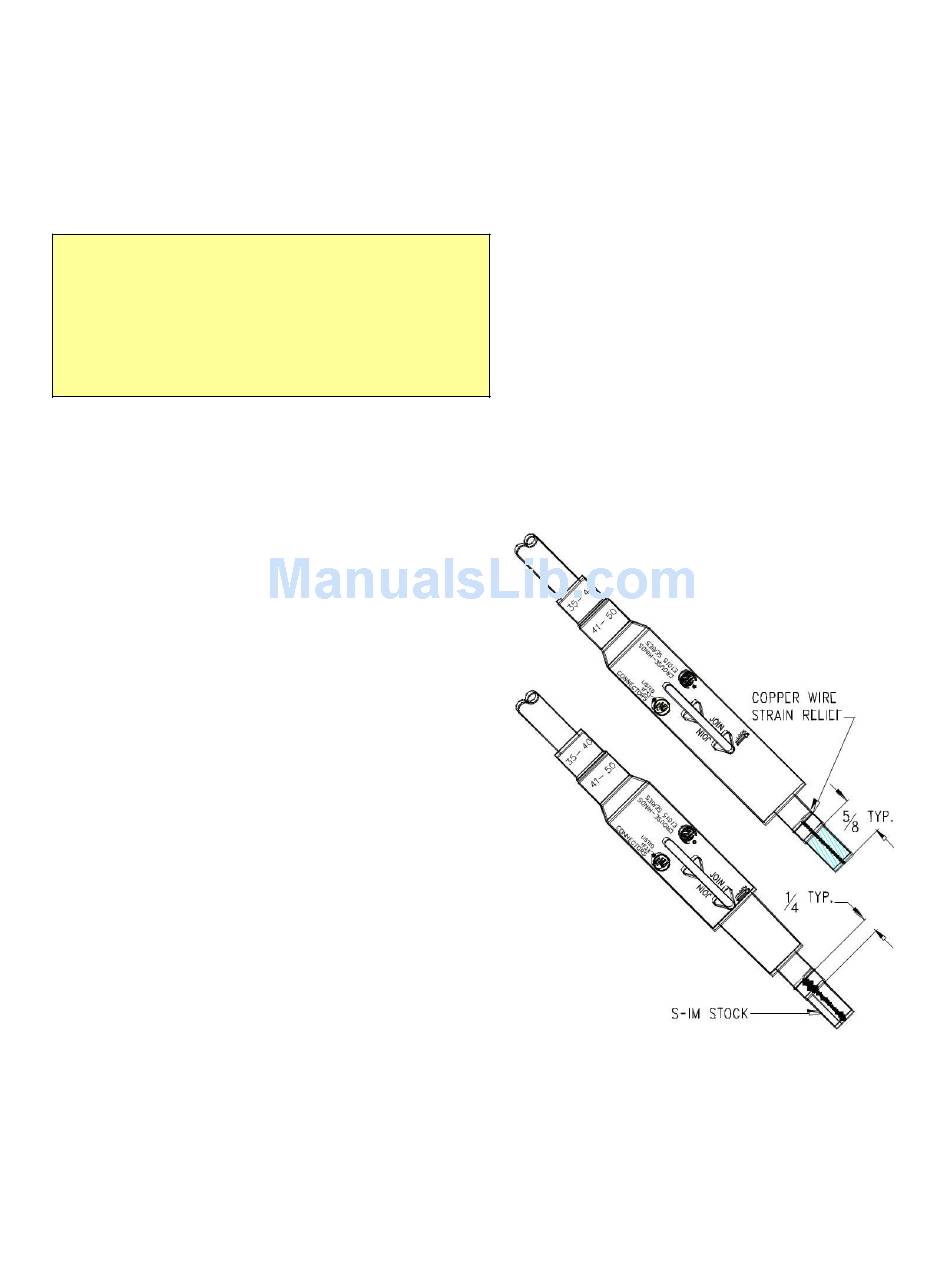

3. Push cable through from rear of
sleeve and remove 5/8" length of
jacket. Wrap bare conductor with
shim stock. See chart for quantity of
REV B: IC-ECN004493
c a m - l o k
ASSEMBLY INSTRUCTIONS
®
shim stock. Using the length of
bare copper wire included as a
strain relief, wrap the wire tightly
around the cable jacket ¼" from the
end of the jacket. Bend the ends
down against the conductor and
squeeze twisted portion tightly
against cable jacket so that it will
clear inside of insulator during
assembly. Cut loose ends of wire
off flush with end of conductor.
SHIM STOCK SELECTION
#8, #6 AWG Cable—2 pcs. 5/8 x 1 ¼"
#4 AWG Cable—1 pc. 5/8 x 1 ¼"
EB 88
Page 1 of 2
