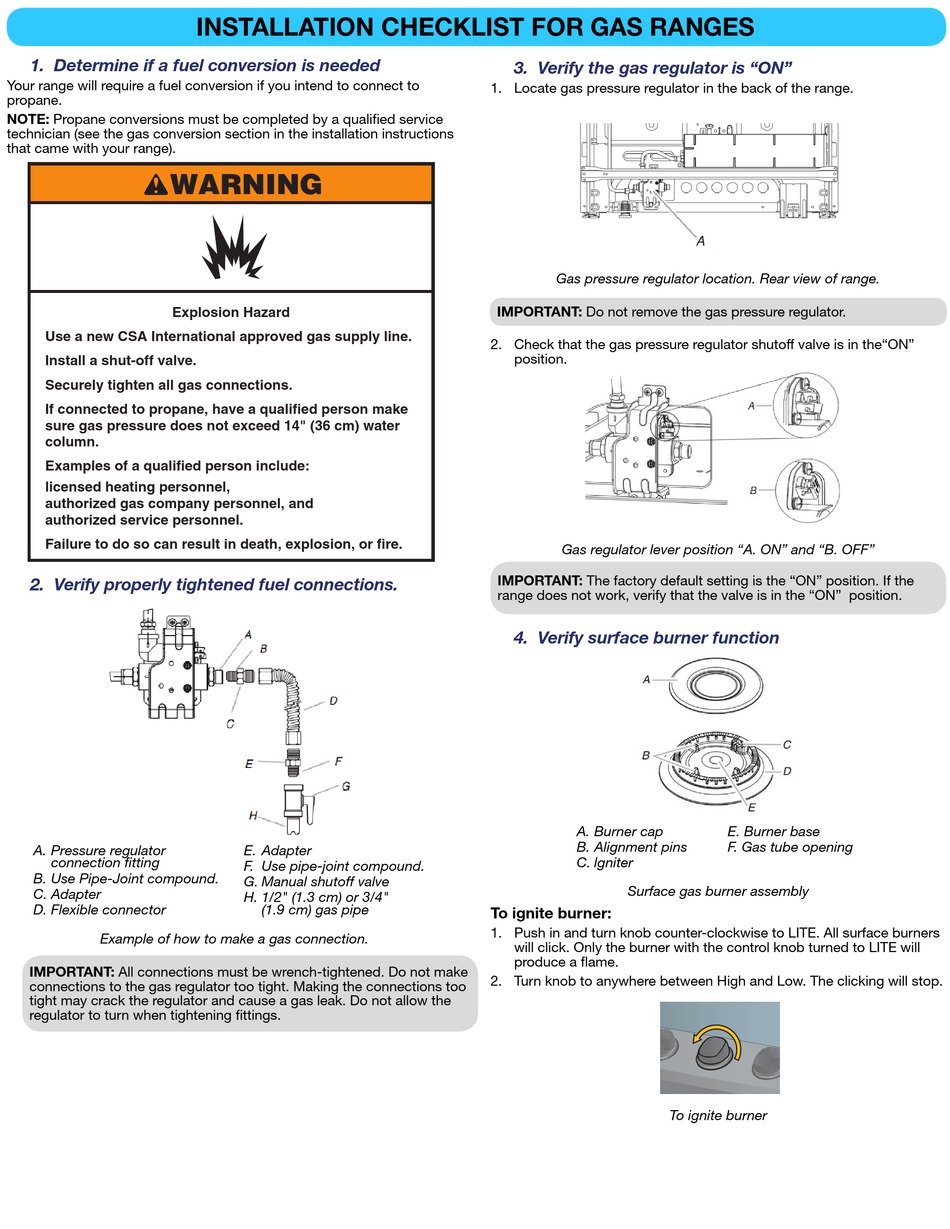

Whirlpool WFG320M0BB Installation Checklist

1. Determine if a fuel conversion is needed

Your range will require a fuel conversion if you intend to connect to
propane.
NOTE: Propane conversions must be completed by a qualified service
technician (see the gas conversion section in the installation instructions
that came with your range).
WARNING
Explosion Hazard
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to propane, have a qualified person make
sure gas pressure does not exceed 14" (36 cm) water
column.
Examples of a qualified person include:
licensed heating personnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death, explosion, or fire.

2. Verify properly tightened fuel connections.

A. Pressure regulator
connection fitting
B. Use Pipe-Joint compound.
C. Adapter
D. Flexible connector
Example of how to make a gas connection.
IMPORTANT: All connections must be wrench-tightened. Do not make
connections to the gas regulator too tight. Making the connections too
tight may crack the regulator and cause a gas leak. Do not allow the
regulator to turn when tightening fittings.

INSTALLATION CHECKLIST FOR GAS RANGES

E. Adapter
F. Use pipe-joint compound.
G. Manual shutoff valve
H. 1/2" (1.3 cm) or 3/4"
(1.9 cm) gas pipe
3. Verify the gas regulator is "ON"
1. Locate gas pressure regulator in the back of the range.
Gas pressure regulator location. Rear view of range.
Figure D: Gas pressure regulator location. Rear view of range.
IMPORTANT: Do not remove the gas pressure regulator.
2. Check that the gas pressure regulator shutoff valve is in the"ON"
position.
Gas regulator lever position "A. ON" and "B. OFF"
IMPORTANT: The factory default setting is the "ON" position. If the
range does not work, verify that the valve is in the "ON" position.

4. Verify surface burner function

A. Burner cap
B. Alignment pins
C. lgniter
Surface gas burner assembly
To ignite burner:
1. Push in and turn knob counter-clockwise to LITE. All surface burners
will click. Only the burner with the control knob turned to LITE will
produce a flame.
2. Turn knob to anywhere between High and Low. The clicking will stop.
To ignite burner
E. Burner base
F. Gas tube opening
