Before installing this product, read and follow all warning notices and instructions which are included. Failure to
follow safety warnings and instructions can result in severe injury, death, or property damage.
Call (800) 831-7133 for additional free copies of these instructions.
Attention Installer.
This manual contains important information about the installation, operation and safe use of this
product. This information should be given to the owner/operator of this equipment.
1. Open Load Center.
Fold down Outdoor
Control Panel.
2. Plug Valve Module into
Personality PCB.
3. Attach Actuators. If
necessary, shut-off
power and remove
High Voltage Cover
Panel to feed cable up
Low Voltage Raceway.
4. Install High Voltage
Cover Panel. Fold up
Outdoor Control Panel.
Close Load Center.
Turn on power.
5. Configure system.
(See Reverse side.)
Pentair Pool Products
1620 Hawkins Ave., Sanford, NC 27330 • (919) 566-8000
10951 West Los Angeles Ave., Moorpark, CA 93021 • (805) 523-2400
Rev. A 2-19-03
IntelliTouch
Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Important Notice
®
Valve Module
WARNING

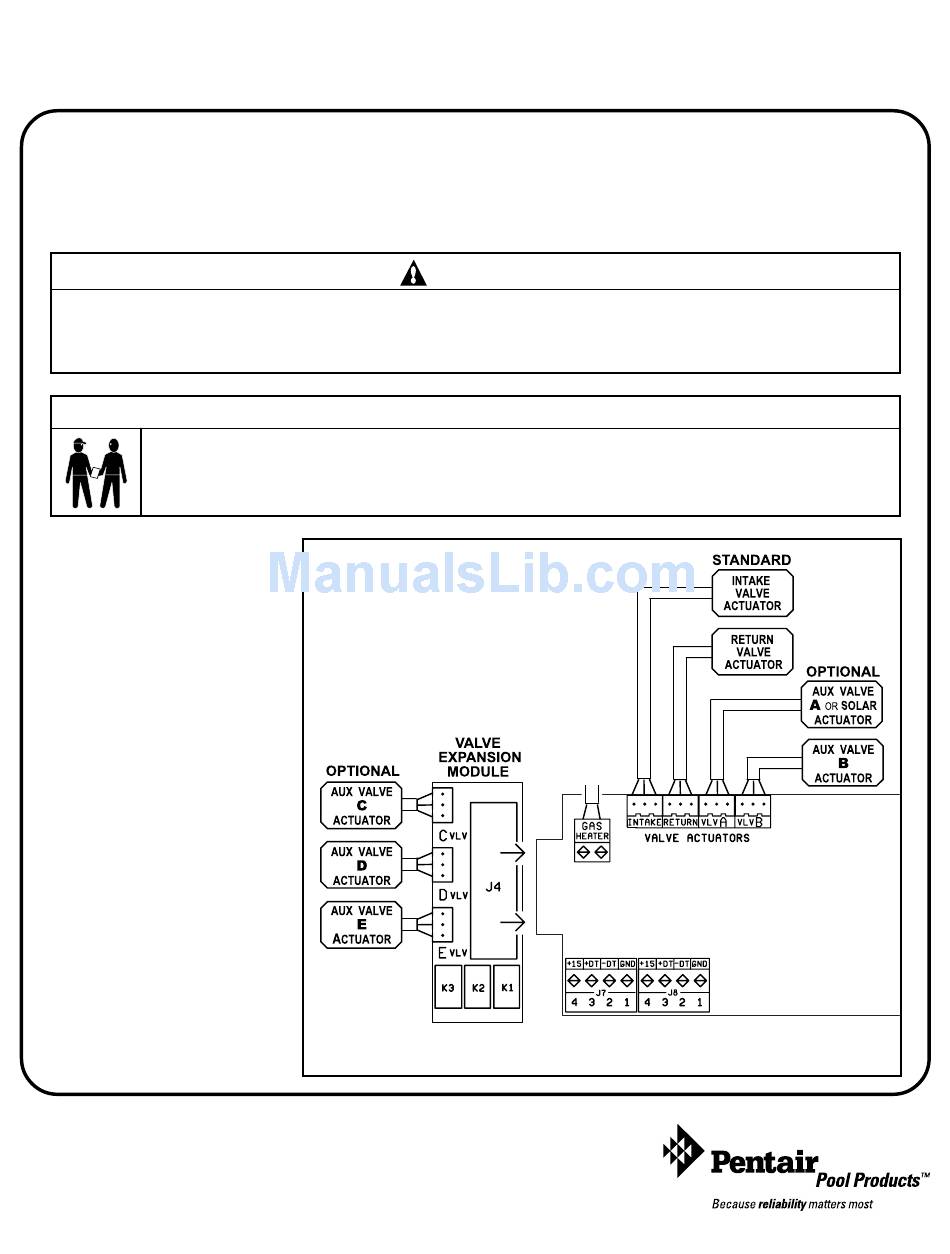

Figure 1.
1
PERSONALITY
PERSONALITY
PCB AT
LOAD CENTER
P/N 520294
