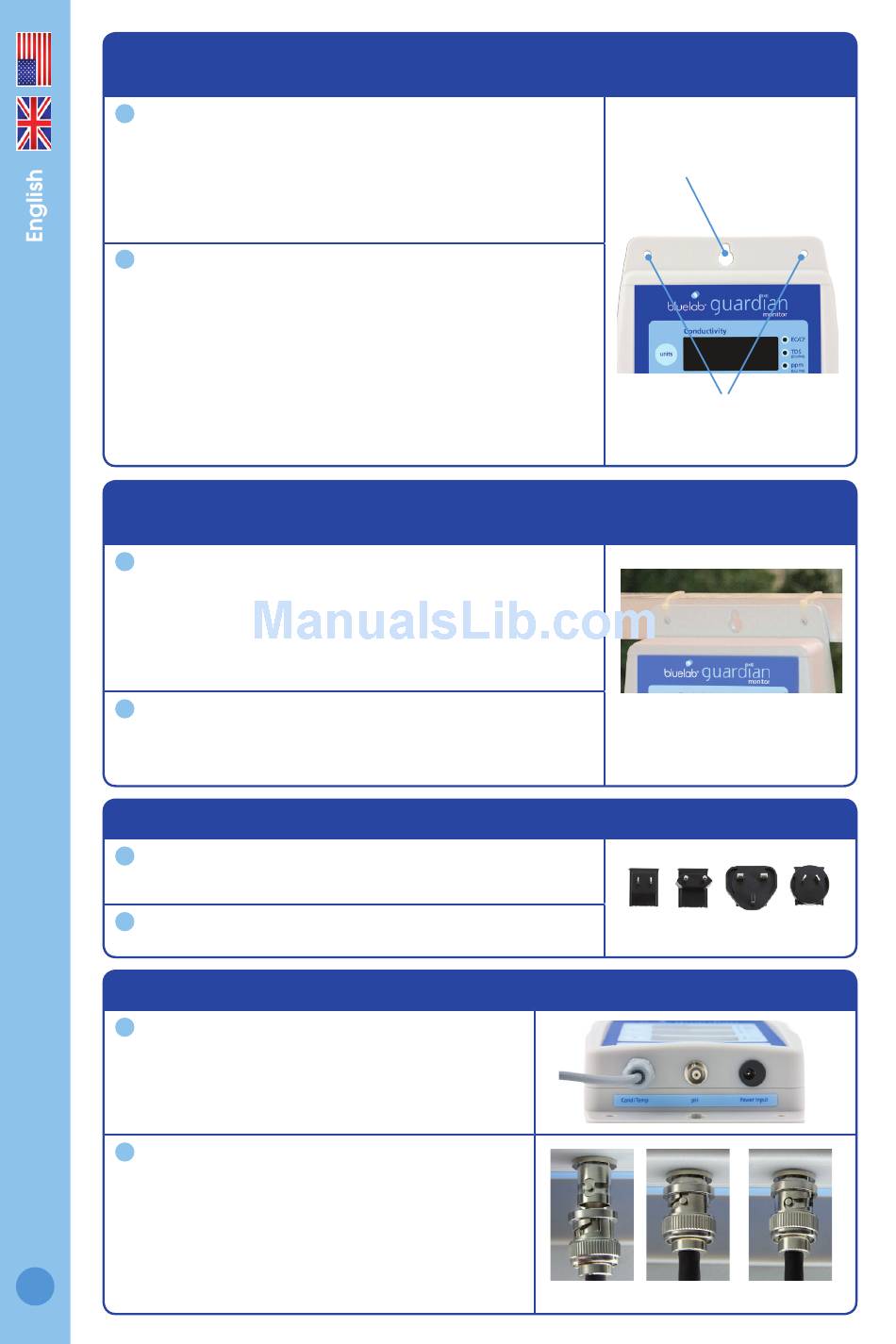

3.0 Mounting the Bluelab Guardian Monitor -
if wall mounting
Select a suitable location that is less than 2 meters
1
from your reservoir, and less than 1.5 meters from an
electrical mains outlet.
NOTE: Avoid placing the Guardian Monitor where it can
be damaged by direct sunlight, water or nutrient salts.
Option 1
2
a) Install two fasteners (top and bottom) to the wall
172mm / 6.¾" apart.
b) Slide the Guardian Monitor onto the fasteners
using the keyholes.
Option 2
a) Fix the four fasteners through each mounting hole
in each corner of the case.
3.1 Mounting the Bluelab Guardian Monitor -
if mounting on a support or bar
Select a suitable location that is less than 2 meters
1
from your reservoir, and less than 1.5 meters from an
electrical mains outlet.
NOTE: Avoid placing the Guardian Monitor where it can
be damaged by direct sunlight, water or nutrient salts.
Fix each of the cable ties provided through the small
2
mounting holes in the top of the case and wrap
around the support or bar and secure.
4.0

Install correct plug adaptor

Select the appropriate mains plug adaptor for your
1
country.
Connect the plug adaptor to the power supply.
2
5.0

Connect power adaptor and Bluelab pH Probe

Connect the power adaptor into the base of
1
the Guardian Monitor where 'Power Input' is
labelled. Plug the adaptor into mains power
supply.
Connect the pH probe to the Guardian Monitor
2
by lining up the lugs of the BNC fittings.
Fasten securely by pushing the pH probe
connector on and twisting one quarter turn.
6
Option 1
Mounting keyholes
top and bottom
Option 2
Mounting holes
top and bottom
Cable ties fixed through small
mounting holes around a
support or bar.
Inserting Twisting Attached
