bluelab Guardian Monitor Care And Use Manual
Hide thumbs
Also See for Guardian Monitor:
- Instruction manual (16 pages) ,
- Care and use manual (12 pages)
Related Manuals for bluelab Guardian Monitor
Summary of Contents for bluelab Guardian Monitor

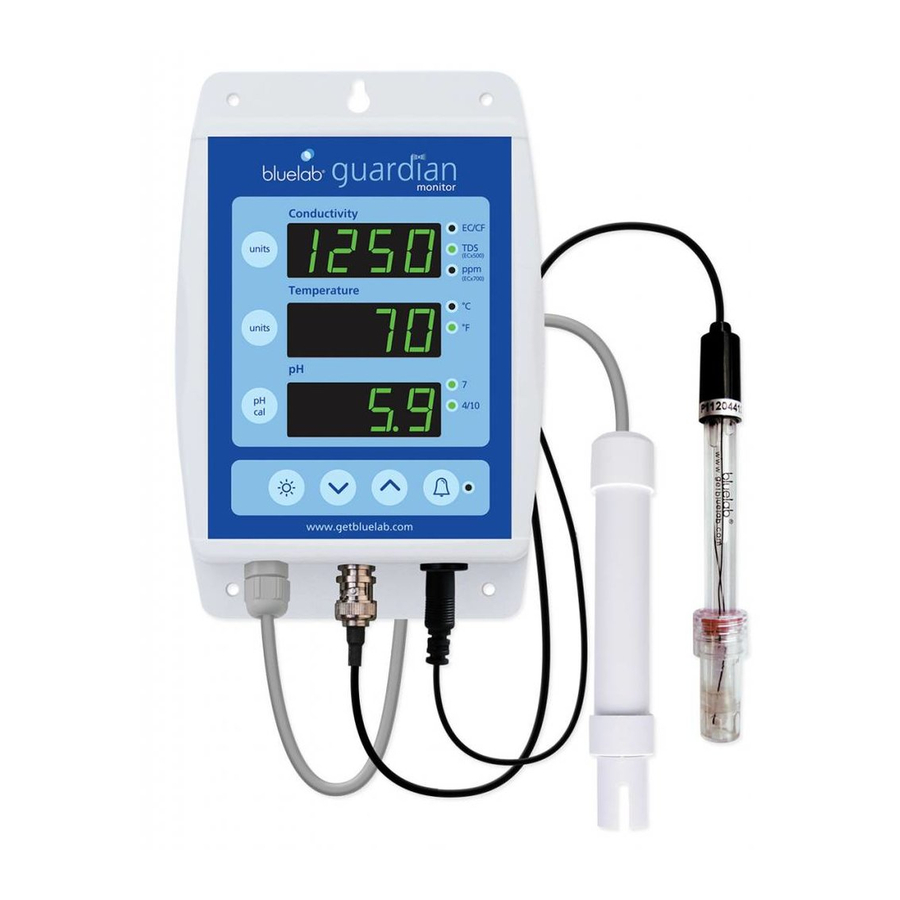

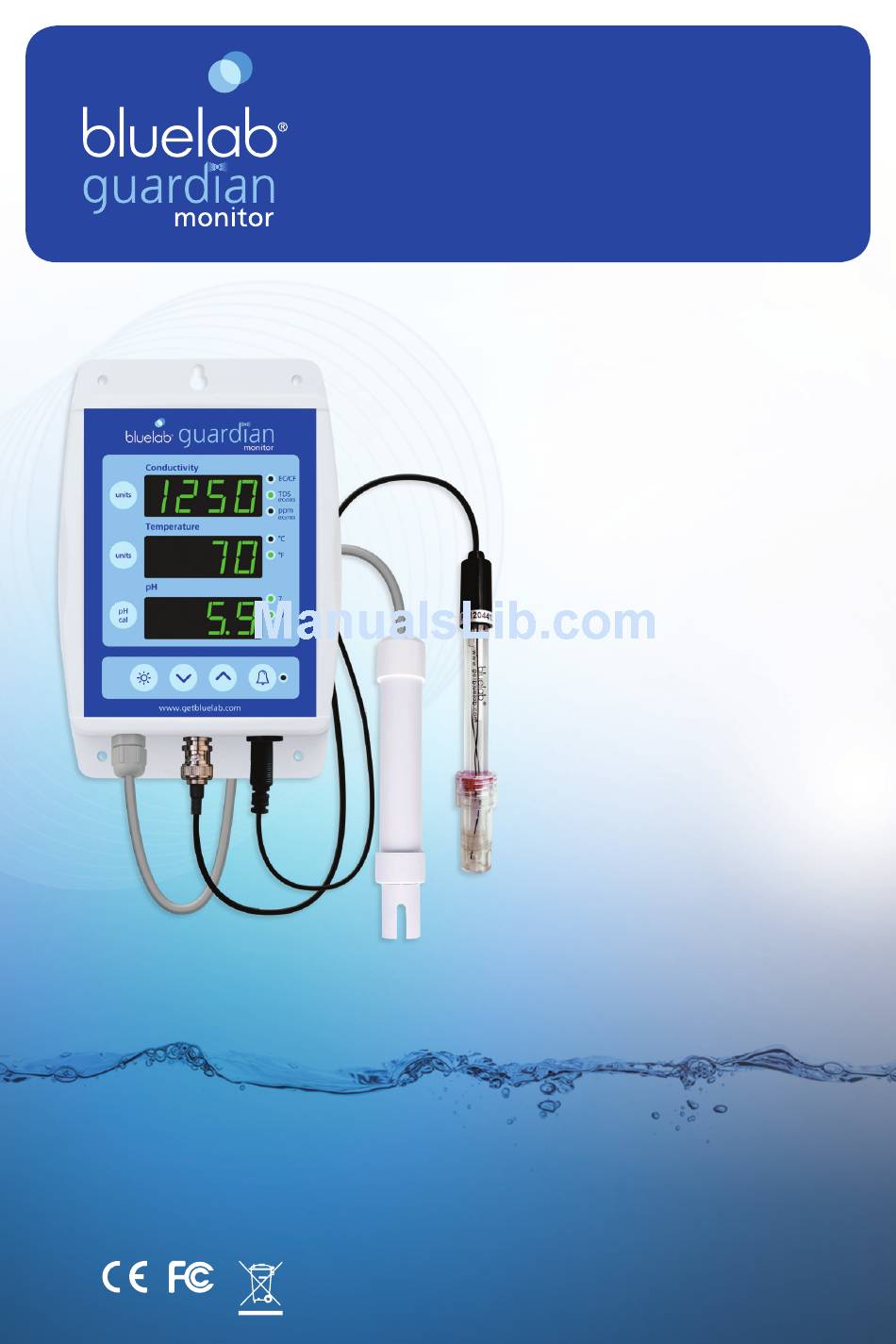

- Page 1 Care and use guide In just one glance the Bluelab Guardian Monitor magically measures all 3 critical parameters for successful growth: pH, conductivity AND temperature bluelab.com...
-
Page 2: Table Of Contents
Contact details Congratulations on purchasing the Bluelab Guardian Monitor The Bluelab Guardian Monitor is a continuous indicator of the current levels of EC, pH and temperature of your nutrient solution, enabling you to optimise these parameters as your crop progresses through... -
Page 3: Features
Settings retained when power lost Replaceable double junction pH probe (non volatile memory) What is Plant Safe? Green LED’s are safe for continued growth during a plant’s fruiting stage when hours of darkness are required. Bluelab Guardian Monitor Bluelab Conductivity/ Temperature Probe... -
Page 4: What's In The Box
NZ / Australian plug adaptor Bluelab pH Probe with storage cap UK plug adaptor Bluelab Conductivity/Temperature Probe European plug adaptor Bluelab pH Probe holder with suction cup 4 x mounting fasteners 5V DC power supply 2 x cable ties North American plug adaptor pH 7.0, pH 4.0 and EC 2.77 single... -
Page 5: Important - Bluelab Ph Probe Care
IMPORTANT - Bluelab pH Probe care The Bluelab pH Probe is the only part of the Bluelab Guardian Monitor that should ever require replacing. pH probes DO NOT last forever. They age through normal use and will eventually fail. The life time of a pH probe depends on the environment it is used in and the way that it is treated. -
Page 6: Mounting The Bluelab Guardian Monitor - If Wall Mounting
1.5 meters from an Mounting keyholes electrical mains outlet. top and bottom NOTE: Avoid placing the Guardian Monitor where it can be damaged by direct sunlight, water or nutrient salts. Option 1 a) Install two fasteners (top and bottom) to the wall 172mm / 6.¾”... -
Page 7: Power Up
3 LEDs next to the conductivity window. When the EC/CF LED is on, the Guardian Monitor is displaying conductivity in units of EC or CF. If there is a decimal point present in the conductivity display, the units are EC. If there is no decimal point the units are CF. -
Page 8: Ph Calibration
If a reading below pH 7.0 is expected, use pH 7.0 and pH 4.0 calibration solutions. If a reading above pH 7.0 is expected, use pH 7.0 and pH 10.0 calibration solutions. Follow the steps on the following page for Guardian Monitor pH calibration. Storage and use of calibration solutions •... - Page 9 7.0 calibration a) Prepare a small amount of pH 7.0 clean the pH probe calibration solution in a container. b) Ensure the Guardian Monitor is plugged pH 7.0 in and in operation mode. calibration c) Rinse EC and pH probe tips in fresh...
-
Page 10: Placement Of Probes
4/10 was never calibrated. 11.0 Placement of probes Both the Bluelab pH Probe and Bluelab Conductivity/Temperature Probe require submersion in the liquid for a measurement to occur. • Do not pour concentrated nutrient solution or pH adjuster directly onto probes when in the reservoir, as very strong acid may damage the probes or your alarms (if set) may trigger. -
Page 11: Set Alarms (Optional)
12.0 Set alarms (optional) The alarm function warns you when the solution deviates from the desired levels you have chosen for each measurement. When an alarm condition is present, the display of the affected measurement will flash. If the measurement changes back to within the limits you have chosen, the flashing will stop. - Page 12 Set the low alarm values the same way as you did the high alarms. Press the alarm button. SAVE is briefly displayed in the conductivity window and the Guardian Monitor will return to its normal monitoring mode. NOTES: To review current alarm settings without changing the values, repeatedly press the alarm button to step through the high and low alarms.
-
Page 13: Cleaning The Conductivity/Temperature Probe
Cleaning the Bluelab Conductivity/Temperature Probe Cleaning the conductivity/temperature probe periodically ensures accurate readings. The conductivity/temperature probe is cleaned using the Bluelab Conductivity Probe Cleaner, or “Jif” a trade name for a liquid scourer cream used in home bathrooms and kitchens. Similar products are called “Liquid Vim”, “Soft Scrub”, “Cif cream”, or “Viss”. -
Page 14: Cleaning The Ph Probe
The storage cap must always be put back on after cleaning. Always ensure it contains enough Bluelab pH Probe KCl Storage Solution to cover the probe tip. Remove storage cap from pH probe. -
Page 15: Troubleshooting Guide
Solution < 0.0 pH. pH displays ‘or’ Over range pH. Check pH probe connection. pH probe Under range pH. pH displays ‘ur’ could be faulty. Guardian Monitor could be wet inside. temp displays Solution >51 °C / 122 °F. ‘or’ Over range temperature. -
Page 16: Technical Specifications
17.0 Technical specifications Specifications Conductivity Temperature 0 – 5.0 EC, 0 – 50 CF, 0 – 50 °C 0 – 2500 TDS Range 0.0 – 14.0 pH (ECx500), 32 - 122 °F 0 – 3500 ppm (ECx700) 0.1 EC, 1 CF, 1 °C Resolution 0.1 pH... -
Page 17: Bluelab Ph Probe Replacement
Bluelab Probe Care Kits - available in: › Bluelab Probe Care Kit - pH › Bluelab Probe Care Kit - Conductivity Kits contain instructions and all the tools you need to clean Bluelab probes or pens. Bluelab pH Probe KCl Storage Solution The perfect solution to store and hydrate your Bluelab pH products. -
Page 18: Product Guarantee
(if applicable), or ingress of moisture into the product. NO RESPONSIBILITY will be accepted by Bluelab or any of its agents or resellers should any damage or unfavourable conditions result from the use of this product, should it be faulty or incorrectly operated.
