- Page 1 DApps-NIC User’s Manual USM Ver 1.2...
-
Page 2: Foreword
Copyright Copyright © 2018 Xtramus Technologies, all rights reserved. The information contained in this document is the property of Xtramus Technologies. No part of this publication shall be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, without the prior written permission of Xtramus Technologies. -
Page 3: Revision History
Revision History Date USM Version History 2012/07/17 First Draft Version 1. Deleting the description of DApps-NIC supports 2012/09/10 operation system Windows 2000.(Page 5) 1. Modify NuDOG-101T speed LED description.(Page 2018/02/06... -
Page 4: Table Of Contents
2.5. NuDOG-301C LED Status ....................10 3. NuDOG-801 Descriptions ......................11 3.1. NuDOG-801 OVERVIEW ....................11 3.2. Features & Advantages of NuDOG-801 ................. 12 3.3. NuDOG-801 Applications in Different Modes ..............12 3.4. NuDOG-801 Interface Ports .................... 14 3.5. NuDOG-801 LED Status ....................15 4. -
Page 5: Dapps-Nic Overview
10GB of available hard disk space ＊Note: Large amount of data will be generated while running DApps-NIC. It is recommended to preserve enough available Hard-Disk space to store these data. Please see the sections down below for detailed information regarding to NuDOG-301C, NuDOG-801, and NuDOG-101T. -
Page 6: Nudog-301C Descriptions

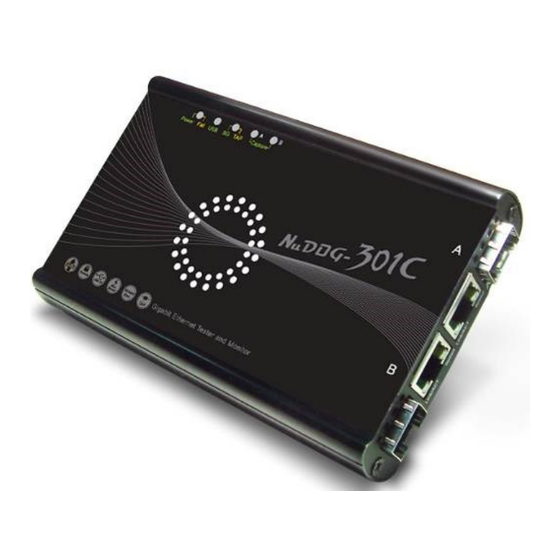

2. NuDOG-301C Descriptions 2.1. NuDOG-301C Overview NuDOG-301C is a handheld device with two Gigabit ports for Ethernet testing. The main functions of NuDOG-301C include multi-streams generation, TAP/Loopback test, and NIC emulation. Connecting NuDOG-301C to its mini-USB port makes it possible for system configurations and managements. NuDOG-301C is an ideal device for in-field testing. -
Page 7: Features & Advantages Of Nudog-301C
2.2. Features & Advantages of NuDOG-301C Hardware based wirespeed streams generation, analysis, network TAP and NIC High precision performance for measuring throughput, latency, packet loss and disordered sequence Wirespeed traffic capturing with programmable filter and trigger criteria ... - Page 8 TAP/Loopback Mode TAP Mode Loopback Mode In TAP mode, NuDOG-301C can monitor any data that flows through it. Network TAP is a method of monitoring network’s situation dynamically without interference. NuDOG-301C can tap bi-directional or uni-directional traffic from different sides (port A and port B) and also provides abundant packet counters. In Loopback mode, NuDOG-301C resends the incoming streams back to the source.
-
Page 9: Nudog-301C Interface Ports
2.4. NuDOG-301C Interface Ports NuDOG-301C Hardware Overview LEDs LEDs that displays NuDOG-301C’s status. 5 Pin Mini-B Receptacle USB Port. You can manage, configure, or update firmware/FPGA when connecting NuDOG-301C to your PC. Mini-USB Port* While under TAP mode, this mini-USB port can also re-direct tapped packets to PC. -
Page 10: Nudog-301C Led Status
2.5. NuDOG-301C LED Status Status Description Green Blinking Power is ON and working properly Power/Fail Yellow Blinking System failed Green Blinking USB of this device is linked to PC Green NuDOG-301C is working under Stream Generation Mode SG/TAP Yellow NuDOG-301C is working under TAP Mode NuDOG-301C is working under NIC (Network Interface Card) mode Capture A/B Green... -
Page 11: Nudog-801 Descriptions
RFC 2889 and RFC 2544. With these utilities, NuDOG-801 is able to conduct throughput test, latency test, error filtering test, forwarding test, and so on. Xtramus’ utility software provides a user-friendly interface for different test configurations when setting test parameters and criteria. More optional software is available for extended test requirements. -
Page 12: Features & Advantages Of Nudog-801
In Streams Generation mode, NuDOG-801 generates bi-directional network streams for test requirements as the illustration above. Both NuDOG-801’s Port A and Port B can generate and receive test streams. The test streams are sent and returned to the same NuDOG-801 for DUT (device under test) analysis. - Page 13 TAP Mode Loopback Mode In TAP mode, NuDOG-801 can monitor any data that flows through it. Network TAP is a method of monitoring network’s situation dynamically without interference. NuDOG-801 can tap bi-directional or uni-directional traffic from different sides (port A and port B) and also provides abundant packet counters.
-
Page 14: Nudog-801 Interface Ports
Fan hole with internal fan for ventilation. Diagnostic Port 8-Pin Mini-DIN Receptacle Diagnostic Port 10 Gigabit Wirespeed 10 Gigabit Wirespeed SFP+ Port SFP + Port *Please note that when connecting NuDOG-801 with PC via its USB port, DO NOT use a USB hub... -
Page 15: Nudog-801 Led Status
Yellow Blinking CRC error or packet loss is occurring Error/Loss No CRC error or packet loss is occurring Capture A/B Green Port A/B is under Capturing Mode Green ON The RJ45 Port is connected to DUT/Network Link/ACT Green Blinking NuDOG-801 is transmitting or receiving data... -
Page 16: Nudog-101T Descriptions
4. NuDOG-101T Descriptions 4.1. NuDOG-101T OVERVIEW NuDOG-101T is a handheld device with two ports for Ethernet testing. The main functions of NuDOG-101T include multi-streams generation, TAP/Loopback test, and NIC emulation. Connecting NuDOG-101T to its mini-USB port makes it possible for system configurations and managements. -
Page 17: Features & Advantages Of Nudog-101T
4.2. Features & Advantages of NuDOG-101T Hardware based wirespeed streams generation, analysis, network TAP and NIC High precision performance for measuring throughput, latency, packet loss and disordered sequence Wirespeed traffic capturing with programmable filter and trigger criteria ... - Page 18 TAP/Loopback Mode TAP Mode Loopback Mode In TAP mode, NuDOG-101T can monitor any data that flows through it. Network TAP is a method of monitoring network’s situation dynamically without interference. NuDOG-101T can tap bi-directional or uni-directional traffic from different sides (port A and port B) and also provides abundant packet counters. In Loopback mode, NuDOG-101T resends the incoming streams back to the source.
-
Page 19: Nudog-101T Interface Ports
4.4. NuDOG-101T Interface Ports NuDOG-101T Hardware Overview A Mini-USB Port for connecting NuDOG-101T to PC or for power supply. B LEDs that display NuDOG-101T’s system status. C Interface Port A/B for connecting NuDOG-101T to DUT or network. -
Page 20: Nudog-101T Led Status
4.5. NuDOG-101T LED Status Status Description Green Blinking Power is ON and working properly Power Yellow Blinking System failed Green Blinking USB of this device is linked to PC Green NuDOG-101T is working under Packet Generation Mode PG/TAP Yellow NuDOG-101T is working under TAP Mode NuDOG-101T is working under NIC (Network Interface Card) mode Capture A/B Green... -
Page 21: Software Installation And Uninstallation For Dapps-Nic
5. Software Installation and Uninstallation for DApps-NIC Please follow the steps down below to install DApps-NIC: Installing DApps-NIC Double-click DApps-NIC installation program and start the installation process. InstallShield Wizard is starting to install DApps-NIC. If you would like to cancel installation, click “Cancel”. - Page 22 Installing DApps-NIC Click “I accept the terms in the license agreement”, and click “Next” to continue. You can set your User Name and Organization here, and click “Next” to continue. You can select the Complete option to install all program feature for running DApps-NIC, or select Custom option to choose the program feature to be installed.
- Page 23 Installing DApps-NIC DApps-NIC InstallShield Wizard will start installing momentarily. Click Install button if the information is correct. InstallShield Wizard is installing DApps-NIC. DApps-NIC installation completes. Click Finish button to exit.
- Page 24 Installing DApps-NIC 10. WinPcap Installer appears. Click Next button to get ready to install, or click Cancel button to stop. 11. WinPcap is preparing to install, or click Cancel button to stop at any time. 12. Review the license agreement before installing.
- Page 25 Installing DApps-NIC 13. WinPcap is installing. 14. WinPcap installation completes. Click Finish button to close the wizard.
- Page 26 You can uninstall DApps-NIC by: Click Start → Programs → Xtramus → DApps-NIC → Uninstall DApps-NIC Go to the Control Panel, choose DApps-NIC from installed program list, and click “Remove” to uninstall as well.
-
Page 27: Dapps-Nic Overview
6. DApps-NIC Overview 6.1. Hardware Installation Before starting DApps-NIC, your PC and NuDOG-301C/NuDOG-801/NuDOG-101T shall be connected properly. The figure down below illustrates connecting PC and NuDOG-301C. You can connect NuDOG-801 and NuDOG-101T with PC in the same manner. 6.2. Starting DApps-NIC Before starting DApps-NIC, the DUT, your PC, and NuDOG-301C/801/101T shall be connected as shown in “6.1. - Page 28 If your PC is not connected with NuDOG-301C/801/101T, you can still run DApps-NIC under Demo mode. Almost all DApps-NIC’s functions are available under Demo Mode. However, please note that Demo Mode is for system demo purposes only, and does not serve any testing purposes at all.
-
Page 29: Dapps-Nic/Nuserver Main Window Overview
6.3. DApps-NIC/NuServer Main Window Overview DApps-NIC Main Window DApps-NIC Functions Overview The Menu Bar allows you to switch between counter of port A or port B, to enable or disable flow control, to upgrade the FPGA and License of your Menu Bar NuDOG-301C/801/101T, change language displayed, view the version of the software/NuDOG-301C/801/101T and system requirement. -
Page 30: Menu Bar
6.4. Menu Bar DApps-NIC Menu Bar includes configuration options such as File, Config, Tool, Language, and Help. Please refer to the sections down below for detail information regarding to each configuration option. 6.4.1. File File A prompt pop-up window will ask if you are sure to exit DApps-NIC. Click YES to exit Exit DApps-NIC, or click NO to cancel. -
Page 31: Language
6.4.4. Language Language English/ DApps-NIC has 2 different languages for its UI available. You can set the language of UI to Japanese English or Japanese. 6.4.5. Help Help An “About” window will pop up and show About… detailed system information. A “System Requirements”... -
Page 32: Tool Bar
The Tool Bar allows you to reconnect your PC to your NuDOG-301C/801/101T, clear counter window of port A or B and save the counter result. Tool Bar If the USB connection between your PC and NuDOG-301C/NuDOG-801/NuDOG-101T is down, a “Disconnected” icon will be shown in “System Connection Status”. -
Page 33: Counter Window
6.7. Counter Window The Counter Window shows the status of the packets transmission of Port A and Port B of your NuDOG series, when it performs simulation of Network Interface Card (NIC). For more details about simulation of Network Interface Card (NIC), please refer to the 8. Simulation of Network Interface Card (NIC). -
Page 34: Fpga And License Upgrade
7. FPGA and License upgrade You can upgrade the FPGA and License of your NuDOG series from DApps-NIC. Please connect your NuDOG series on your PC as shown on the figure of 6.1. Hardware Installation. 7.1. Upgrade FPGA Upgrading FPGA Choose from the Menu Bar the option Tool →... -
Page 35: Upgrade Firmware (For Nudog-801)
7.2. Upgrade Firmware (for NuDOG-801) DApps-NIC provides NuDOG-801 the option for upgrading Firmware, please refer to the steps below: Upgrading Firmware Choose from the Menu Bar the option Tool → System Upgrade → Firmware Upgrade. A window will pop up to warn if your NuDOG series is connected or not with your PC. -
Page 36: Upgrade License
NuDOG to start the updated License. You can confirm the license of other Xtramus softwares by clicking the software name on System Info/Software License. A Software License window will pop up showing the detail information of the selected software. -
Page 37: Simulation Of Network Interface Card (Nic)
8. Simulation of Network Interface Card (NIC) DApps-NIC is a software that allows NuDOG series to perform simulation of Network Interface Card (NIC). Please connect your NuDOG series on your PC as shown on the figure below: Through DApps-NIC, the network traffic status is showed based on Tx/Rx, CRC error, alignment error, dribble bit, packet size statistics, layer 2 packet counters and network layer conditions, please refer to the figure below:... -
Page 38: Appendix - Other Utility Softwares For Nudog Series
Comprehensive statistics give users an in-depth analysis of the DUT performance. DApps-NIC: Network Interface Card Simulation Suite NuDOG-301C/NuDOG-801/NuDOG-101T has a mini-USB port for PC connection. In addition to network TAP, system control and system upgrade functions. NuDOG-301C/NuDOG-801/NuDOG-101T can also be used as a network interface card. - Page 39 Note: Information and specifications contained in this document are subject to change without notice. All products and company names are trademarks of their respective corporations. Copyright © 2018 Xtramus Technologies, all rights reserved. Do not reproduce, redistribute or repost without written permission from Xtramus. Doc # USM_DApps-NIC_V1.2_ENG _20180802...
