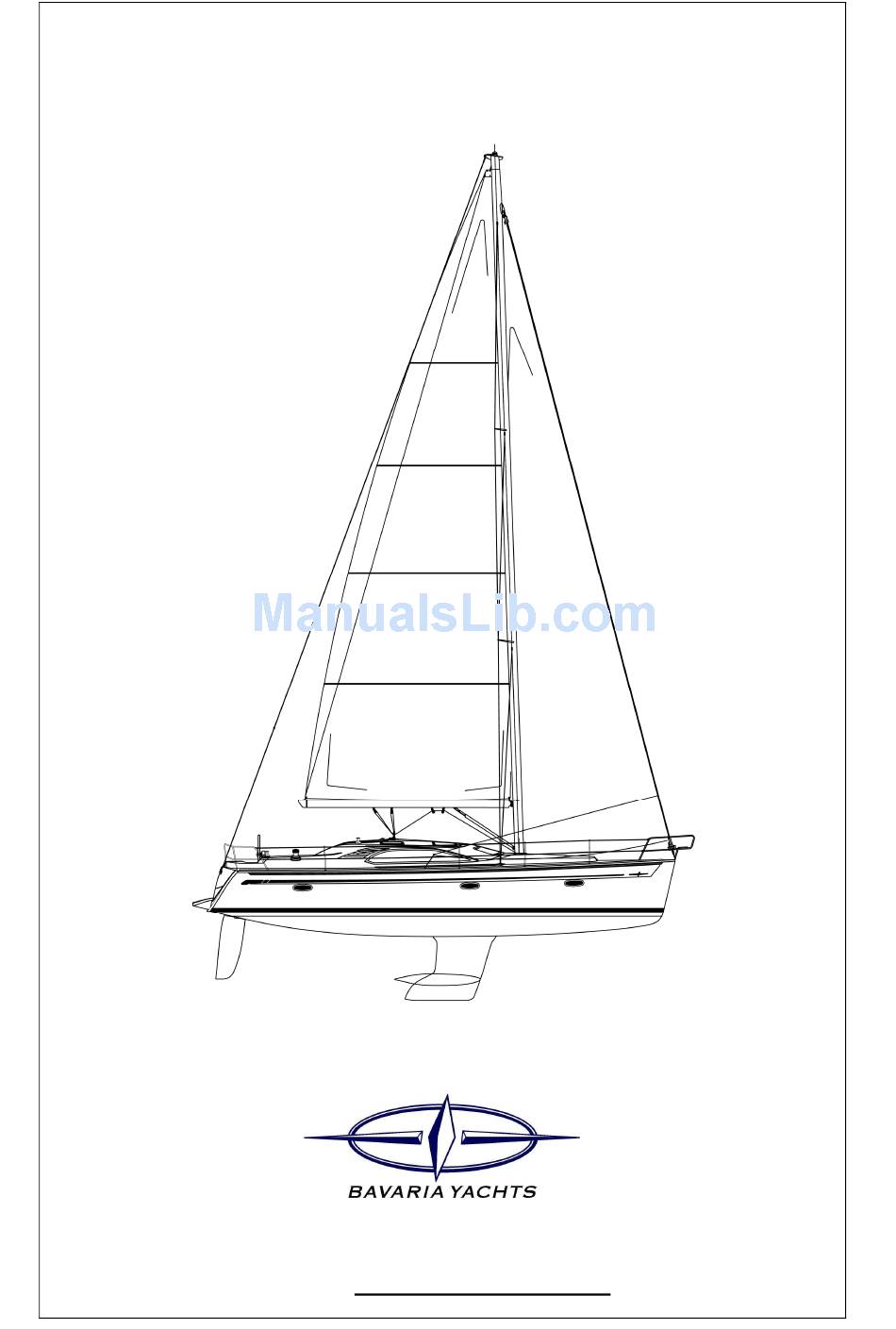

- Page 1 Manual for owners and skippers Sailing yacht „BAVARIA 40vision“ Bavaria Yachtbau GmbH • • • • Bavariastr. 1 • • • • D – 97232 Giebelstadt Tel.: +49 (0) 9334 942 – 0; Fax: +49 (0)9334 942 – 116 E-Mail : info@bavaria-yachtbau.com...
-
Page 2: Table Of Contents
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH Introduction ....................................4 Certification ....................................5 Identification ....................................5 Builder’s plate ..................................... 5 Warnings ..................................... 6 Declaration of Conformity ................................7 1. Description of the yacht ................................ 11 1.1 Main particulars ................................11 1.1.1 Principal dimensions .............................. - Page 3 Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 3.3 Sound ....................................35 3.4 Swell ....................................35 3.5 Exhaust gas ..................................35 3.6 Antifouling coatings ................................ 35 3.7 Varnish removers ................................35 4 . Ma i nte n a nce ..................................36 4.1 Maintenance, cleaning ..............................
-
Page 4: Introduction
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH Introduction This manual will help you to handle your yacht safely and with pleasure. Apart from information about the yacht itself and installed or additionally supplied fittings the manual also contains information on operation and maintenance. -
Page 5: Certification
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH Category of design Following the European Recreational Craft Directive each boat has to be classified according to a category of design. All sailing yachts of BAVARIA belong to the category of design A, Designed for extended voyages where conditions may exceed wind force 8 (Beaufort scale) and significant wave heights of 4 m and above but excluding abnormal conditions, and vessels largely self-sufficient. - Page 6 Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH Warnings Many chapters of this manual will support a trouble free operation, maintenance or draw your attention to signs of dangers. To find them more easily they are especially marked (in boxes or in bold). We advise you to study them carefully although the experienced skipper might be quite familiar with many of them.
- Page 7 Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 9 of 43...
- Page 8 Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 10 of 43...
-
Page 9: Description Of The Yacht
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 1. Description of the yacht 1.1 Main particulars 1.1.1 Principal dimensions Length overall 12.70 m Length of hull 11.99 m Length on waterline 10.60 m Breadth max. 3.99 m Draught - normal keel abt 1.75 m... -
Page 10: General Arrangement
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 1.2 General arrangement 1.2.1 Rigging plan Reference The valid measuring of the foresail reefing gear are on the enclosure note at the carton of the Furlex-foresail reefing gear Caution! Do not enter the front salon windows and the deck hatch. Slip hazard! -
Page 11: Deck Arrangement
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 1.2.2 Deck arrangement 13 of 43... - Page 12 Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH Bow navigation light Zweifarbenleuchte Bow fitting Bugbeschlag Bow pulpit Bugkorb Guard lines Relingsdurchzüge Water inlet Wasser Einfüllstutzen Anchor chain bail Ankerkasten Mooring cleats Belegklampe Stanchion Relingstütze Foot stop Fussreling Stanchion base Relingfuss Hooking point...
-
Page 13: Accommodation Plan
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 1.2.3. Accommodation plan Steering gear Ruderanlage Double berth Doppelbett Shelf Schrank Companion way / engine room Niedergang / Motorraum Head Shower Dusche Cooling Kühlbox Gas cooker with oven Gasbackofen Sink Spüle Hanging locker Hängeschrank... -
Page 14: Drive Systems
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 1.3 Drive systems 1.3.1 Sails The SY Bavaria 40vision is equipped with the following standard sails: Main sail - fully-battened abt 39,60 sqm Main sail “ - mast reefing gear abt 34,40 sqm... - Page 15 Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH Engine plant Engine Volvo Motor Volvo Engine exhaust system Motorabgassystem Exhaust water lock Abgaswassersammler Engine fuel intake Kraftstoffeinfüllstutzen Feed back fuel Kraftstoffrückführleitung Fuel tank filling hose Kraftstoffeinfüllschlauch Fuel tank ventilator Tankentlüftung Fuel filter...
-
Page 16: Installations And Circuits
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 2. Installations and circuits 2.1 Tanks and piping - water 2.1.1 Fresh water, drinking water –cold The yacht has two water tanks with a capacity of altogether about 460 l. Fresh water is supplied via a water inlet at the transom, port side and on the forecastle near the chain locker. -
Page 17: Wc -Installation: See Enclosed Directions For Use
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 2.1.3 WC –installation: see enclosed directions for use Attention If you are not aboard you should close all sea-valves. Components: WC-flushing: Outlet Borddurchlass Toilet water drain valve Kugelhahn Eingang WC Toilet drain Ausgang WC Waste water tank venting Fäkalientankentlüftung... -
Page 18: Tanks And Piping - Fuel
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 2.2 Tanks and piping - fuel Storage tank There is a 150 l plastic diesel tank with an inspection opening on starboard-side below the aft berths. It is filled via a fuel inlet with a chrome cover (marked with DIESEL) at the transom of the yacht. The tank pickup is situated on the tank. - Page 19 Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH Attention Remove timing gear while using the emergency tiller Attention Please ensure a suitable bearing lubrication of the necessary parts of the rudder installation with water-proof lubricants (or Teflon). Bearing clearance has to be avoided and can be adjusted at the top bearing.
-
Page 20: Bilge Pumps, Bilge Pipes
The chain locker is made watertight against the yacht. It is self-bailing through two holes in the skin. All BAVARIA yachts have got a self-bailing cockpit, too. The Water in the cockpit runs by the abaft trim to the back through the aperture. -
Page 21: The Electric Installation
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH Components of the bilge pumping installation: See pic. 2.1.3 2.5 The electric installation 2.5.1 The AC-installation (230 Volt) The yacht has got a shore connection (option) by which it can be supplied with electric power from ashore when being berthed in a port. -
Page 22: Important Warnings On The Dc-Installation (12 Volt)
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 2.5.4 Important warnings on the DC-installation (12 Volt) Never a) work on electric installation while the system is energized b) modify the craft’s electrical system or relevant drawings: installation, alterations and maintenance should be performed by a competent marine electrical technician. -
Page 23: Distribution Of Electric Devices (3 Cabins)
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 2.5.6.1 Distribution of electric devices (3 Cabins) 25 of 43... - Page 24 Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 1 Navigation light Zweifarbenleuchte 2 Electric windlass Elektrische Ankerwinde 3 Windlass switch Bedienteil Ankerwinde 4 Fresh water gauge Frischwassertankgeber 5 Echo sounder Echolot Geber 6 Log Sumlog Geber 7 Light Halogenleuchten 8 Neon lamp...
-
Page 25: Distribution Of Electric Devices (2 Cabins)
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 2.5.6.2 Distribution of electric devices (2 Cabins) 27 of 43... - Page 26 Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 1 Navigation light Zweifarbenleuchte 2 Electric windlass Elektrische Ankerwinde 3 Windlass switch Bedienteil Ankerwinde 4 Fresh water gauge Frischwassertankgeber 5 Echo sounder Echolot Geber 6 Log Sumlog Geber 7 Light Halogenleuchten 8 Neon lamp...
-
Page 27: Wiring Plans
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 2.5.7 Wiring plans 2.5.8 Distribution plans 2.5.9 AC-distribution See provided e-documentation 2.6 L.P.G. installation The gas installation for the stove meets the European norm EN 10239. The test-certificate is attached. The gas pipe leading to the stove from the standard 3 kg–gas cylinder is an 8 mm copper pipe. It is placed into a self-bailing casing moulded into the deck in the rear cockpit area. -
Page 28: Operation
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 2.6.2 Operation Gas installations require care. That’s why you should follow this sequence: Attention Open the stop valve in the gas cylinder casing Open the valve before the stove Open a stove valve and lighten the gas Keep the valve open until the glow timer allows further burning. - Page 29 Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH As the owner of the yacht you should keep this state and pay attention to the following advice: Attention: Keep the bilge clean and check regularly if there is a smell of fuels or gas.
-
Page 30: Anchor (Option)
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH Caution Test the fire extinguishers regularly! Train yourself as regards fire fighting. Always obey seaman’s duty! 2.8 Anchor (option) The bower anchor (plough anchor), about 21 kg, hot-galvanised, is known for its high holding power. It lays ready-to-fall in the bow fitting. -
Page 31: Ventilation/Airing
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH Attention A regular Inspection if saltwater comes out of the exhaust is urgently advisable. 2.11 Ventilation/Airing We have taken the following measures for a proper ventilation of all rooms: Chain locker Certain ventilation is achieved through the hawser port in the cover of the chain locker and through its bilge holes. -
Page 32: Generator (Option For 44Vision, 50Vision, 50 Cruiser)
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH Board ducts Cooling water strainer Kühlwasserfilter Sink drain Ausgang Spüle Waste water drain Ausgang Fäkalientank Toilet water drain Eingang WC Shower drain punmp Ausgang Duschpumpe Echo sounder Echolot Geschwindigkeitsmesser 2.13 Generator (Option for 44vision, 50vision, 50 Cruiser) Attention For maintenance and care on a regularly basis of e.g. -
Page 33: Environmental Protection
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 3. Environmental protection BAVARIA YACHTBAU has already met the legal requirements referring to exhaust gas regulations with its choice for the inboard diesel installed. An exhaust gas type-examination certificate can be handed in or sent on later. -
Page 34: Maintenance
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 4. Maintenance 4.1 Maintenance, cleaning Mast and rigging See: Notes of the manufacturer Sails The sails are made of Dacron. This material is very robust and resistant. Thus the sails keep their form for a very long time. -
Page 35: Wearing- And Spare Parts
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH Stainless steel The corrosion resistance of all fittings is based on their ability to constitute a thin skin together with the air occident, which makes a positive electrical potential. Specialists call it a CR-passive (CR is standing for chrome).But chrome is in the galvanic contact series negative and a bit less valuable than iron. - Page 36 Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH Advice: Before wintering you should pay special attention to the following parts and protect them correspondingly: Rinse and clean the transmitters of the speedometer and echo sounder. Maintain the electrical systems and clean them with suitable materials.
-
Page 37: Final Remarks And Notes
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH 5. Final remarks and notes This manual is in conformity with the directives of the harmonised European Norm EN 10240. Much of it might go without saying for you. Nevertheless we hope that dealing with the different chapters of this manual will help you to understand the technical systems and the ideas behind them.
