Seametrics FT415 Instructions Manual
Ft400 series
rate/total indicator
Hide thumbs
Also See for FT415:
- Instructions (4 pages) ,
- Instructions manual (12 pages) ,
- Instructions manual (12 pages)
Related Manuals for Seametrics FT415
Summary of Contents for Seametrics FT415

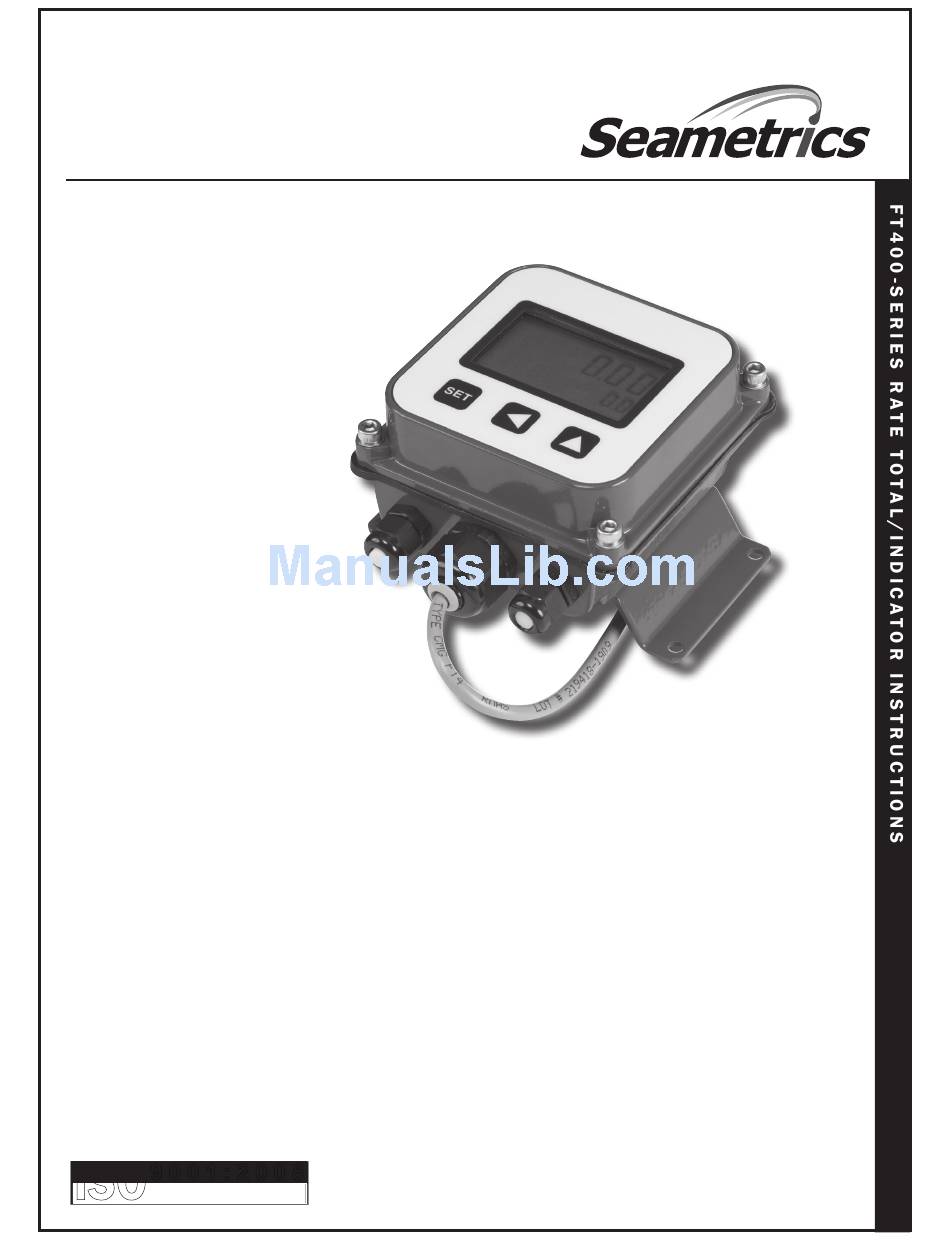

- Page 1 FT400-Series RATE/TOTAL INDICATOR INSTRUCTIONS • FT415 • FT420 9 0 0 1 : 2 0 0 8 CERTIFIED COMPANY...
- Page 2 K-Factor, Reading in Other Units ........................Page 8 Set K, Set P/Flow Alarm, Set 20 mA, Set Decimal Point, Set Time Unit ............Page 8 Operation Resettable Totalizer; 4-20 mA Output, Pulse Output, FT415 Battery Change ..........Page 9 Troubleshooting Problems, Probable Causes, to Try ......................Back Page TABLES AND DIAGRAMS Features, Specifications .............................
- Page 3 Operating Temperature -30˚ to 65˚ C (-22˚ to 148˚ F) -30˚ to 65˚ C (-22˚ to 148˚ F) Environmental NEMA 4X, IP66 NEMA 4X, IP66 *Specifications subject to change • Please consult our website for current data (www.seametrics.com). Page 1...
- Page 4 INSTALLATION Wall Mount. To mount an FT400-Series indicator to the Meter Mount wall, hold the unit in the desired position, mark the holes in the mounting feet, drill and mount with screws. With the Sensor Wires FT420W-65 option, first remove the front cover to gain access to the mounting screw holes.
- Page 5 INSTALLATION Connections. To connect the FT400-Series flow computer CAUTION: If output is being used to to a flow sensor or an external device such as a chemical control an external device, such as a metering pump, follow the Standard Connections diagrams metering pump, do not connect the on pages 4-6.
- Page 6 CONNECTION DIAGRAMS FT415 Standard Connections Pulse Responsive Metering Pump Caution: Do not apply external power to the FT415. Battery Type: Micropower Lithium "C, 3V, replaceable Sensor Current sinking polarity-sensitive (Passes flow sensor pulse on to White another control without scaling)
- Page 7 CONNECTION DIAGRAMS Connections for FT420-98 (Dual Relay Output Option) Electronic NOTE: Outputs may be paralleled Metering Pumps to switch up to 200 mA AC/DC Isolated Contact White Black Flow Sensor Relay Board white wire wire (Passes flow sensor pulse on to another control without scaling) Connections for FT420/EX Magmeter...
- Page 8 When running the FT420 with a magmeter (which requires power), the FT420 must be connected to two power supplies, one for the magmeter and one for the 4-20 mA loop. You may either use a dual power supply (available from Seametrics as the PC42), or two single power supplies (one of which may be the 4-20 mA loop itself).
- Page 9 Find it on the fitting 00001.000 (800-Series) or chart (100/200-Series) or on the Seametrics website. SET K P is the number of gallons per pulse desired on the scalable pulse output. (Example: P=1 is one pulse 0000010.0...
- Page 10 Please contact your Distributor for assistance.) The K-factor on any Seametrics flow sensor fitting or in-line Set P/Flow Alarm. At this screen you may select between pulse output (P) or flow alarm (A) functions. If the pulse output and meter can be found on the model-serial label.
- Page 11 Troubleshooting, back page. ordered with a non-resettable totalizer, contact your distributor.) FT415 Battery Change. The expected average life of the bat- tery ranges between 3-5 years depending on the frequency of the input. The battery is easily pulled and replaced. When the battery is removed, all of the settings will be retained.
- Page 12 Check for minimum 12 Vdc at power terminals Short in sensor circuit Disconnect sensor, see if display returns (zero flow rate) Battery dead or loose (FT415 only) Wiggle battery, replace if over three years old Display missing segments Damaged display module Contact distributor for return/replacement Display reading meaningless Unit’s microcontroller crashed...
