SSD Drives 650V Quick Start

C
L O N I N G
650V drives may be cloned using the 6514
Clone option that plugs into the keypad port. Set-
tings include to/from, I/O configuration and full/
part transfer.
S C
E R I A L O M M S
The Serial Communication option is factory in-
stalled and must be ordered with the drive. It can
be used to exchange information between the
Master and Slave drives in RS485/232 format.
Up to 32 units can be connected together.
A F
D VA N C E D E AT U R E S
The 650V has additional features which can be ac-
cessed via the drive menu or using CE_Lite. Refer
to the product manual for details.
Flycatching - When enabled, lets the drive start
into a spinning load by doing a frequency search.
Skip Frequencies – Two selectable avoidance fre-
quencies and associated window for each.
PID – Provides closed loop process control
S-Ramp – When enabled, introduces a second
order slope to the ramp for smoother transitions.
Configurable Outputs – The digital outputs on the
650 can be configured to pick one of 6 parameters.
The outputs on the 650V are totally configurable.
Auto Restart - After a fault, the drive attempts a
number of restarts after a settable delay.
Custom Screens - Allows the use of a Custom pa-
rameter to be displayed.
Encoder – Terminals 12 &13 can be used for a
quadrature (not complementary) encoder input for
steady-state speed feedback.
Associated Literature
650V Installation Manual HA467652Uxxx
650V Software Manual HA466358Uxxx
6 5 0 V
6 5 0 V
Q u i c k S t a r t
Q u i c k S t a r t
Sensorless Vector
Volts/Hertz
Inverters
f r a m e s C - F
f r a m e s C - F
1 5 - 1 5 0 H P
1 5 - 1 5 0 H P
7 . 5 - 9 0 k W
7 . 5 - 9 0 k W
Visit us at www.ssddrives.com
USA: (704) 588-3246 UK: +44 (0)1903 737000
HA470679U200 Issue 4
*HA470679U200*
B Y S
E F O R E O U TA R T
This document covers the steps necessary
for a basic start up of the 690+ drive. Drive
start ups should be performed by qualified
electrical technicians who are familiar with
AC drives and their applications. For de-
tailed installation and safety information
refer to the Installation Manual. For ad-
vanced features and applications, refer to
the Software Manual.
Ensure that all local electric codes are met
while installing the drive. Check that all live
parts are covered to protect against electric
shock and that unexpected rotation of the
motor will not result in bodily harm or injury.
This document expects that the drive is
already installed in its intended location
and that all relevant installation procedures
have been followed. Please ensure that the
drive has adequate ventilation so that am-
bient temperature does not exceed 45°C
(112°F) under normal operating conditions.
To access the terminals, loosen the two
retaining screws at the bottom of the drive,
pull up gently on the terminal cover and
slide it off.
C M
O N T R O L O D E S
Volts/Hertz mode – Basic open loop
operation, used in fans/pumps and multi-
motor applications.
Sensorless Vector mode – Tight speed
regulation with good transient torque
capability, without the need for speed
feedback.
P C
O W E R O N N E C T I O N S
~ ~ ~ ~
braking braking
braking braking
resistor resistor
3 phase power 3 phase power 3 phase power 3 phase power motor motor motor motor resistor resistor thermistor thermistor thermistor thermistor

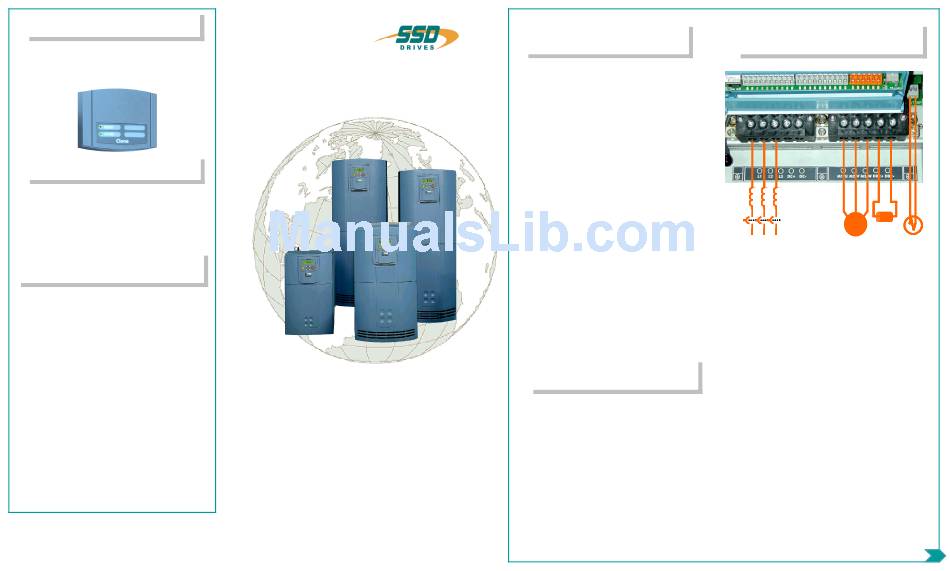

The power terminals shown are for frame D.
Although other frames may vary slightly in
appearance, their terminal designations and
functionality are identical. However, the
Frame F unit requires an auxiliary supply for
the cooling fan. Refer to Chapter 3.
•
3-phase supply to L1, L2, L3.
•
Motor connections to M1, M2, M3
•
Brake resistor between DBR+, DBR-
•
Motor thermistor to MOT TEMP
•
Common Bus to DC+, DC-
•
Frame F only: 115/230V fan supply to
L,N
Ground lugs have been provided for each
of the power circuits. Follow proper ground-
ing and shielding methods as described in
chapter 3 of the Installation Manual,
If the stop time is expected to be less than
the natural coasting time of the load, order
the factory mounted braking module option
on frames D through F. Frame C has a
built-in braking module. Connect the brak-
ing resistor across DBR+ and DBR-.
