Summary of Contents for Netafim FERTIKIT 3G
- Page 1 FERTIKIT 3G SPLIT (SP) NPT USER MANUAL...
- Page 2 DOCUMENTATION, THEY MAY STILL INCLUDE FAULTS. NETAFIM WILL NOT ACCEPT RESPONSIBILITY FOR DAMAGE RESULTING FROM THE USE OF NETAFIM'S PRODUCTS OR THE USE OF THIS MANUAL. NETAFIM RESERVES THE RIGHT TO MAKE CHANGES AND IMPROVEMENTS .TO ITS PRODUCTS AND/OR ASSOCIATED DOCUMENTATION WITHOUT PRIOR NOTICE...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Symbols ..................5 Introduction Safety Instructions ..............6 When Using Acid/Chemicals ..........7 Description Introduction ................8 Advantages ................8 Specifications ................8 Basic Functions ................ 9 Operating Principle ..............9 Service ..................9 Add-ons ..................9 SP .................... - Page 4 4 FERTIKIT USER MANUAL...
-
Page 5: Symbols
SYMBOLS The symbols used in this manual refer to the following: WARNING The following text contains instructions aimed at preventing bodily injury or direct damage to the crops, the FERTIKIT and/or the infrastructure. CAUTION The following text contains instructions aimed at preventing unwanted system operation, installation or conditions that, if not followed, might void the warranty. -
Page 6: Introduction
INTRODUCTION Safety Instructions • All safety regulations must be applied. • Ensure that the installation is carried out in a manner that prevents leaks from the FERTIKIT, the fertilizer/acid tanks and lines, the peripherals and the accessories, contaminating the environment, soil or ambient area. •... -
Page 7: When Using Acid/Chemicals
Substances such as chemicals for pest/disease control might be corrosive and damage the FERTIKIT. When using any substance other than fertilizers or acids not exceeding the concentrations in the table above, always observe the manufacturer's instructions for corrosivity. In case of any doubt, consult your Netafim representative. FERTIKIT USER MANUAL 7... -
Page 8: Description

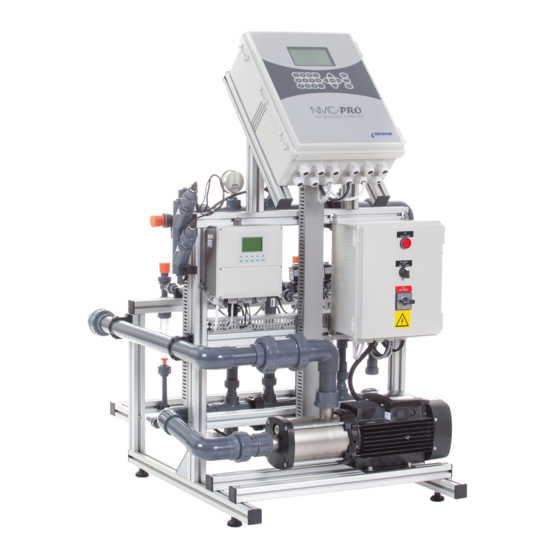

The FERTIKIT 3G is a fully configurable, highly cost-effective solution for precise Nutrigation The FERTIKIT 3G maximizes the usage of available water flow rates and pressures on the main irrigation line ensuring the highest efficiency with minimum investment. The FERTIKIT 3G can operate under various modes and accommodate a variety of dosing channels, dosing boosters, controllers, peripherals and accessories to meet a vast range of applications and infrastructure constraints. -
Page 9: Basic Functions
FERTIKIT booster pump creates the pressure differential to drive the dosing channels. Service Servicing the FERTIKIT 3G is a prompt and simple process. The dealer keeps a small quantity of interchangeable components on hand, for replacement on site within a few minutes. - Page 10 DESCRIPTION For applications where the main line pressure is between 15 and 60 psi and is sufficient for irrigation with no excess. The pressure differential required to generate fertilizer suction via the Venturis is produced by a boost pump integrated in the Fertikit. This mode of operation, where the system pump is installed upstream from the Venturis, permits the use of a smaller pump, reducing the investment required and saving energy.
-
Page 11: Typical Setup
DESCRIPTION Typical Setup pressure reducing valve (PRV) pressure sustaining valve (PSNO) FERTIKIT USER MANUAL 11... - Page 12 DESCRIPTION Typical Setup Required Proportions For optimal operation of the FERTIKIT, piping must be installed while maintaining the following proportions. 12 FERTIKIT USER MANUAL...
-
Page 13: Dimensions
DESCRIPTION Dimensions Without Controller With Controller FERTIKIT external dimensions (W/D/H*) Package dimensions (W/D/H**) Configuration Without controller 33/40.5/36" 39.5/45.5/39.5" With controller 33/40.5/53" 39.5/45.5/63.5" *The height varies by ±0.5" **The package height includes the according to the adjustment of the legs. pallet height of 4". Weights With dosing booster 4HM9... -
Page 14: Operation & Maintenance
OPERATION & MAINTENANCE Maintenance CAUTION When opening or closing any manual valve, always do it gradually, to prevent damage to the system by water hammer. To prevent failures and extend the life cycle of the FERTIKIT, the user must carry out regular maintenance. •... -
Page 15: Winterization
OPERATION & MAINTENANCE Winterization CAUTION When opening or closing any manual valve, always do it gradually, to prevent damage to the system by water hammer. In areas susceptible to freezing temperatures, if the system is not required for irrigation during the winter (mainly in open field applications) perform the following procedure to avoid damage caused by freezing when the FERTIKIT is idle for the winter period: At the beginning of winter:... -
Page 16: Troubleshooting
The controller settings regarding the field valves are correct (see the Controller Manual). Perform the actions in their order of appearance until the malfunction is fixed. If you identify faulty parts - consult your Netafim representative. CAUTION Only qualified electricians are permitted to perform electrical installations and repairs! -
Page 17: Symptoms For A Single Dosing Channel
If it is clogged - it should be dismantled and thoroughly cleaned (see the Dosing Booster Manual). If after implementing all the above steps the malfunction is still not fixed - consult your local Netafim Dealer. Symptoms For a Single Dosing Channel... - Page 18 (internal deformation). If internal deformation is present - replace the Venturi (consult your Netafim Dealer). If after implementing all the above steps the malfunction is still not fixed - consult your Netafim Dealer. 18 FERTIKIT USER MANUAL...
-
Page 19: Symptoms While Idle
10) If the malfunction is still not fixed - replace the dosing valve. If after implementing all the above steps the malfunction is still not fixed - consult your Netafim Dealer. Switchboard Warning If the following symptom occurs during operation, perform the actions listed below: Switchboard Warning Light •... -
Page 20: Calibration
CALIBRATION The process of calibrating the FERTIKIT is carried out in three stages: 1. Calculation of Dosing Channels Opening Percentage To finely calibrate the FERTIKIT in order to achieve homogeneous and stable dosing, perform the following calculation for each dosing channel (fertilizers and acid) to determine the amount of suction reduction needed to attain the required fertilizer/acid flow rate. - Page 21 CALIBRATION Note the required dosing ratio of each fertilizer solution and the dosing ratio of the acid solution (if used). Fill a bucket with 2 gallons of the client's supply water (without fertilizer or acid). Measure the EC and the pH levels of the water in the bucket using calibrated portable sensors. EXAMPLE Supply water (without fertilizer or acid) Using a measuring tube or a syringe, take a dose from each fertilizer solution and from the acid solution (if used)
-
Page 22: Calibration Of Fertikit While Irrigating
CALIBRATION 3. Calibration of the FERTIKIT While Irrigating WARNING Extreme EC or pH values may damage the crop. Perform the following procedure only after completing stage 2 above (Simulation test with a 2 gallon bucket of water) with satisfactory results. NOTE The following steps explain the operations to be performed, regardless of the type of controller used. - Page 23 After completing the calibration process, fill out the FERTIKIT Hydraulic Conditions Checklist in three copies. Make sure to fill out all the boxes of the reference row. Keep one copy as reference for future calibration of the FERTIKIT and send one copy to your Netafim Dealer. FERTIKIT USER MANUAL 23...
-
Page 24: Warranty
The above does not apply to EC and pH sensors, since they are wearable. Netafim will warrant these items to be free of defects in material and workmanship for 3 months from the date of installation, provided the installation has been reported to Netafim within 30 days, or 6 months from date of production if installation was not reported or was reported later than 30 days from the date of installation. -
Page 25: Fertikit Parts
FERTIKIT PARTS FERTIKIT USER MANUAL 25... - Page 26 FERTIKIT PARTS FertiKit SP Parts Part Description Notes Item Number Inlet to CM15-2 60Hz SCH80 33241-009030 Inlet to MTX5-3 60Hz SCH80 33241-009040 Outlet from CM15-2 60Hz SCH80 33241-009050 Outlet from MTX5-3 60Hz SCH80 33241-009060 Upper manifold SCH80 33241-009080 Outlet from Venturi 33241-009070 Venturi PP M100GPH SCH80 33241-009090...
- Page 27 FERTIKIT USER MANUAL 27...
- Page 28 NETAFIM USA 5470 E. HOME AVE. FRESNO, CA 93727 CS 888 638 2346 www.netafimusa.com V 001.005 12/16...
