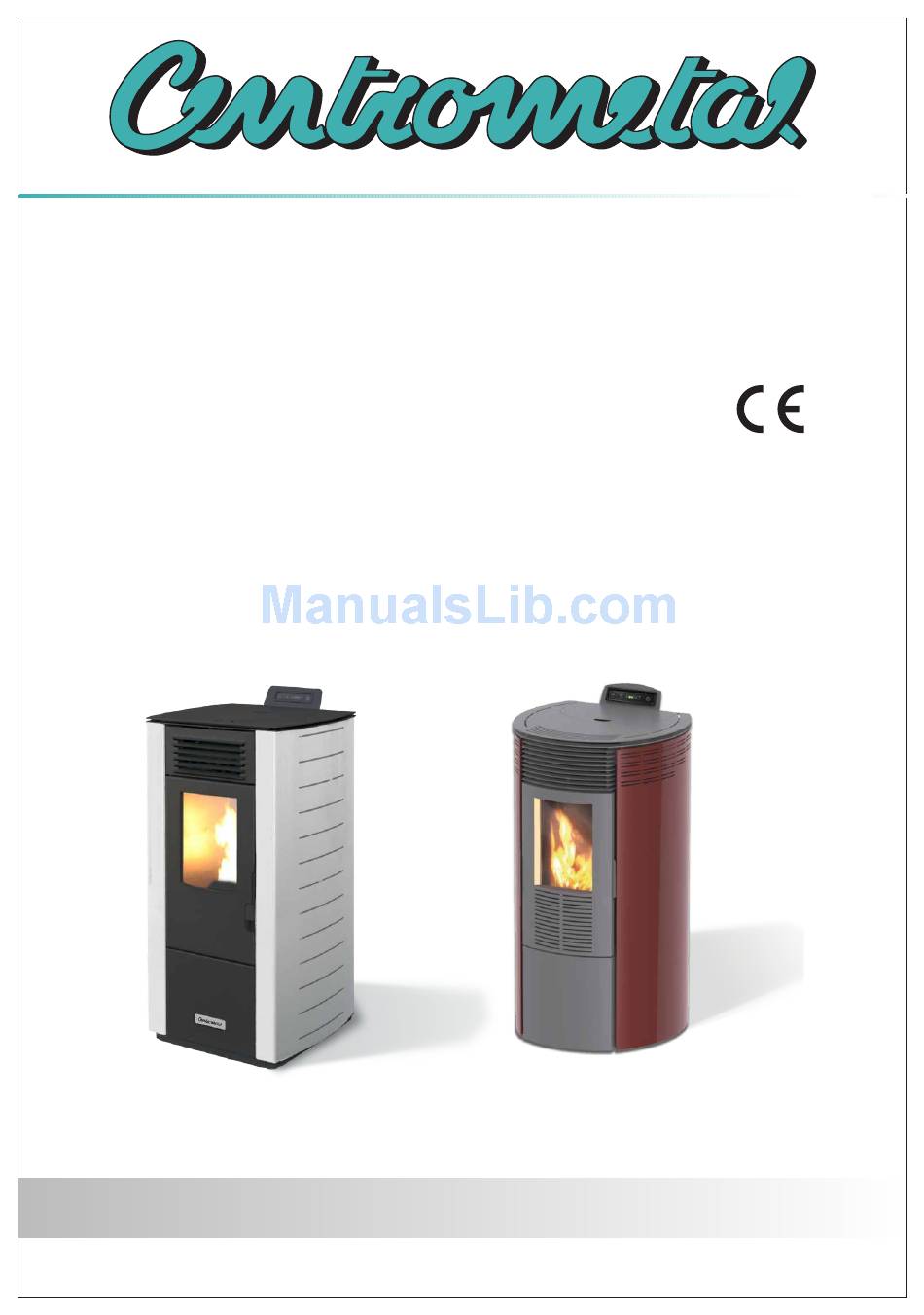

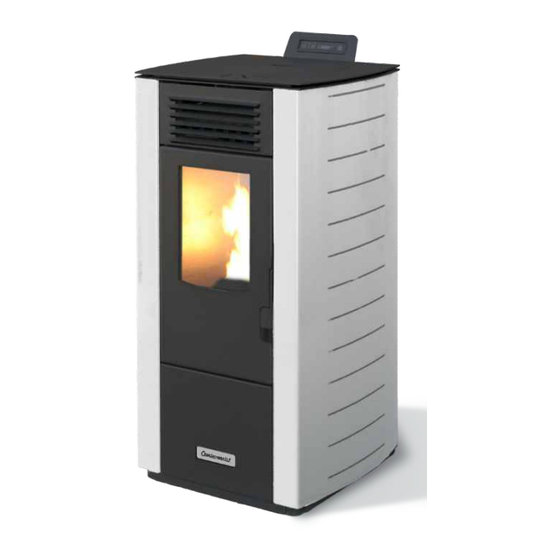

- Page 1 HEATING TECHNIQUE Centrometal d.o.o. - Glavna 12, 40306 Macinec, Croatia, tel: +385 40 372 600, fax: +385 40 372 611 TECHNICAL INSTRUCTIONS for installation, use and maintenance of pellet stove CentroPelet Z8,Z12,ZR12 TUZENG-10-2016-HR...
- Page 2 WARNING !!! Before installing the stove call a authorised service by Centrometal to analyze needs of the first start-up. - In case of breakage or poor operation please contact authorised service ; The stove contains parts whose maintenance must be done by the authorised service.
-
Page 3: Installation
Standards and declarations of conformity Legislation: Responsibility: • Our company declares that the stove conforms The manufacturer does not accept any direct to the following standards for the European or indirect, civil or criminal responsibility due to: Directive on CE marking. •... - Page 4 Installation • Every device must have its own flue with a • The chimney cap must be positioned in such a diameter equal to or larger than the stove's way as to guarantee the adequate dispersion and smoke clearing tube and a height not less than dilution of the products of combustion and, in all that declared.
- Page 5 Dimensions Smoke discharge Figure 3. Internal flue installations that must be carried out in accordance with regulations The discharge system must be for the stove only (it is not permissible to discharge into flues in common with other devices). The smoke discharge takes place through the 8 cm diameter tube placed at the back.
- Page 6 Flue tubes examples Silicone rosette Flue elbow Flue tube 0,5 m Flue tube 1 m T-connector Cover of T-connector (to collect condensate and smoke particulates) Air intake Flue tube 1 m Flue tube 0,5 m Cover of T-connector (to collect condensate and smoke particulates) T-connector Silicone rosette...
- Page 7 Dimensions External air intake: The stove must be equipped with the air neces • The presence in the local adjacent to where the sary to guarantee the regular functioning of the stove is installed, of other devices in use or of combustion and an environmental well-being.
- Page 8 Dimension of CentroPelet Z12 / ZR12 Ć 48/50 Ć 80 - All dimensions are in mm - tolerance 10 mm...
- Page 9 Positioning The stove is equipped with an electrical cable to • If the stove is installed on inflammable flooring, connect to a 230V 50Hz socket, preferably with the stove must be placed on a slab of material a thermal-magnetic switch. Variations in voltage that insulates it from the heat which is wider at the of more than 10% may compromise the stove (if sides by 20 cm and 40 cm at the front;...
- Page 10 Positioning Figure 9. Distance from walls Minimum air intake for introducing carburated air: Air inlet Combustion air must be taken completely from the outdoor environment.For a correct and safe 20 cm placement of the air intake all the measures and rules (Fig. 9) must be respected. There is wall a series of distances to respect to prevent carburated air from being extracted from...
- Page 11 Mounting the display (unless already installed) Mounting the display is performed after having Figure 18: Connecting the dipslay panel inserted the majolica pieces (where present) and is carried out as follows: 1. Lightly unscrew the two central screws on the rear of the stove in order to insert the display (Fig.
- Page 12 Notes Centrometal d.o.o. shall not be responsible for possible incorrect data caused by printing errors or error made in transcription and all figures and diagrams are for explanatory purposes only and relevant adjustment have to be made at the spot. In any case, it reserves the right to modify its products as deemed to be required and useful without any prior notification.
