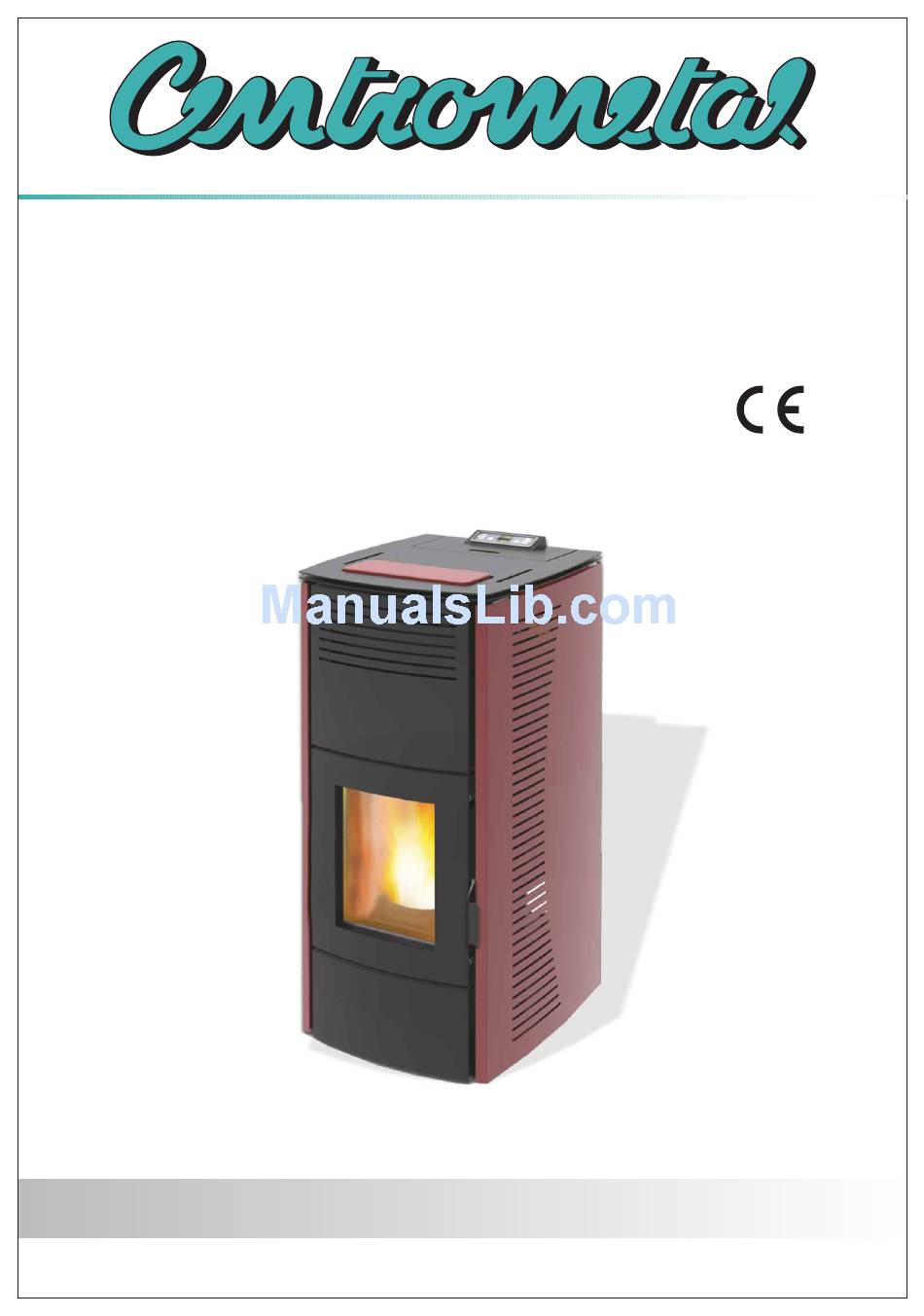

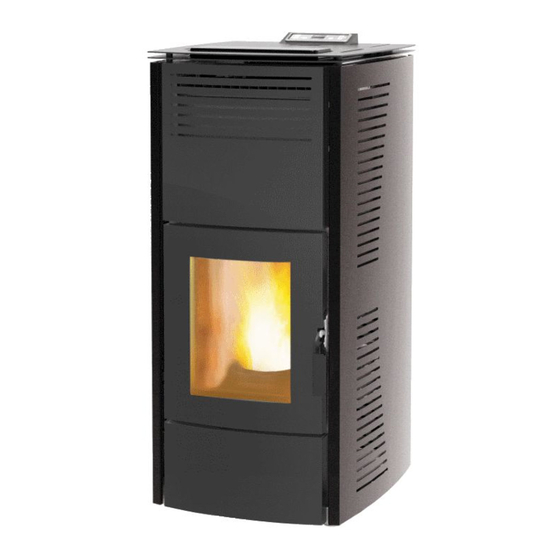

- Page 1 HEATING TECHNIQUE Centrometal d.o.o. - Glavna 12, 40306 Macinec, Croatia, tel: +385 40 372 600, fax: +385 40 372 611 TECHNICAL INSTRUCTIONS for installation, use and maintenance of pellet thermostove CentroPelet ZV16 TUZENG-4-2017-ENG...
- Page 2 Thermostove 17 Dear Customer, Cod. 001121 We thank you for having chosen one of our products, the fruit of technological experience and of continual research for a superior quality product in terms of safety, dependability, and service. In this manual you will find all the information and useful suggestions to use your product with the maximum safety and efficiency.
- Page 3 Norms and declarations of conformity Our company declares that the stove conforms to the fol- • Use of non-original replacement parts; lowing norms for the EC European Directive labelling: • Exceptional events. • 2014/30 (regulation EMCD) following amendments; • 2014/35 UE (Low Voltage Directive) and following amendments;...
- Page 4 Charge pellet Fuel is loaded from the upper part of the stove by opening Never remove the protection grille in the a door. hopper. When filling, do not let the sack Pour the pellets in the hopper; vacuum contains about of pellets touch any hot surfaces.
-
Page 5: Operating Area
Operating area For proper functioning and a good temperature distribution, the stove shoul be positioned in a location where it is able to take in the air necessary for combustion of the pellet (about 40 m /h must be available), as laid down in the standard governing the installation and in accordance with local national standards. - Page 6 Connection to the flue pipe The flue pipe must have internal dimensions not larger than 20x20 cm, or diameter 20 cm. In the event of larger dimensions, or of the flue pipe being in poor condition ( for example cracks, poor insulation, etc.), it is advisable to fit a stainless steel pipe of suitable diameter inside the flue pipe throughout its length, right up to the top.
- Page 7 Fireplace flue gas Distance to objects Avoid contact with combustible materials (example: The thermostove should be inspected on all sides, so you wooden beams) and in any case provide for their insulation have to keep a distance of at least 40 cm at the back and with flame retardant material.
-
Page 8: Remote Control
Remote Control The remote control (Fig. 3) used to adjust water temperature power and the on/off functions for the pellet thermostove. To start the thermostove, press key and the stove will automatically enter the starting phase. Press keys (1) and (2) to adjust temperature, and use keys (6) and... - Page 9 PARAMETER M. UNITS TH17 18,00 Heat input 17,10 Nominal heat output Reduced heat output 4,00 13,40 Water heat output Reduced water heat output 3,10 CO concentration at nominal reference (13% O mg/m CO concentration at reduced reference (13% O mg/m Nominal efficiency Reduced efficiency 97,5...
- Page 10 Thermostove start up Remove any components wich might burn from the firebox and from the glass (various instructions and adhesive labels) Charge pellet Fig. 2 Fuel is loaded from the upper part of the thermostove by opening a door. Pour the pellets in the hopper. When It is advisable to use dry wood pellets, up empty, it will hold slightly more than a 42 kg sack.
- Page 11 REMARKS: is a value which can go from 0 to 5. Pressing the key to In case of repeated ignition lock-outs, while pellets increase power you can scroll the 5 available speeds. are fed regularly, there may be a problem caused by a If you set the value “0”, you will deactivate failing electric glow plug.
-
Page 12: Room Sensor
Room sensor Internal room sensor Example of operation: Position of the probe internal environment If the room temperature detected by the sensor and highlighted on the control panel is 15° C and the set Only when the laying is finished recommended to check temperature is 20 °... - Page 13 Plumbing system connection The connection of the stove to the plumb- ing system must be made ONLY by spe- cialized personnel who are capable of car- rying out installation properly, in compliance with current standards in the country of installation. The manufacturer will not be held responsible for damage to persons or things in the event of failed operation if the aforementioned warning is not...
- Page 14 necessary to move it, or when it requires routine and/or In case it is necessary additional water it is necessary to special maintenance. Connect the stove using hoses so be made the filling process when the heater is cooled to that the stove is not too strictly connected to the system, room temperature.
- Page 15 Heating timer-thermostat The heating timer-thermostat function is used to program the pellet boiler stove to automatically turn on and off within a period of one week. To access programming, hold down button for around three seconds, “U T0 1” will be shown on the upper display: by pressing button several times and referring to the table below, the stove can be programmed according to your needs.
- Page 16 UT01: Heating timer-thermostat enabling and disa- UT07: Week day selection bling and current hour setting. Press button o select the days of the week. Press This parameter is used to set the current day of the week button to enable (ON) or disable (OFF) the pellet boiler or to deactivate the set programming.
-
Page 17: Safety Devices
Safety devices Pressure switch: monitors Reduction motor: Flue temperature Electrical safety: the stove depression in the smoke if the motor stops, the ther- sensor: thermocouple that is protected against violent duct. It is designed to shut mostove continues to func- measures the temperature surges of current (ex. - Page 18 Alarm signals In the event of a working defect, the system informs the user about the type of failure occurred. The following table summarises the alarms, kind of problem and possible solution: Upper Lower Kind of failure Solution Display Display The thermostove cannot start up Fill in the tank with pellets ALAR...
- Page 19 Failure on electrical devices Failed light-up Manual restart thermostat If the flame does not light up during the switching on or if the smokes temperature does not reach a suitable value in the foreseen time gap, the thermostove switches off and you will read the words “Al ar No Ac c”...
-
Page 20: Maintenance And Cleaning
Maintenance and cleaning All cleaning of all parts must be carried out with the termostove completely cold and unplugged to avoid burns and thermal shock. The thermostove does not need much maintenance if used with certified quality pellet. The need for maintenance varies depending on the conditions of use (switching on and off repeatedly) and depending on the performance required. - Page 21 Cleaning exchanger - stove off Cleaning of painted pats Fouling act as insulation and the thicker they are, the Do not clean the painted parts with wet rags when the unit lower the heat that is transmitted to the water and to the is in operation or hot to prevent thermal shock to the paint structure generally.
- Page 22 Cleaning battifiamma CLEANING BY THE TECHNICAL Check every year The thermostove is provided with two elements in vermicu- lite: the bottom of the combustion chamber and the battifi- Compartment ventilation flue gas cleaning amma. Remove the fixing screws and remove the smoke fan for cleaning of the same.
- Page 23 The transaction must We recommend that an annual maintenance service completed by unscrewing is carried out, preferably under a programmed service with a screwdriver the fixing contract. The essential part of this service is a visual and bushes (photo 1). functional check on the following components: Remove the screws holding •...
- Page 24 Warnings for cleaning Any kind of tampering or unauthorized substitution of non-original of the thermostove can be hazardous to the All cleaning of all parts must be carried out with the stove safety of the operator and relieves the manufacturer from completely cold and the plug disconnected.
- Page 25 Anomalies related to the scope mechanical or electronic PROBLEM POSSIBLE CAUSE REMEDY 1. Pellet hopper empty 1. Refill pellet hopper 2. Empty the hopper and manually free the 2. Feeder screw blocked by feeder screw of sawdust Pellet not being fed sawdust 3.
- Page 26 1. Check that the room air intake is present and free. Check that the pipe Ø 5 cm for air inlet is not obstructed. 1. Insufficient combustion air Pellet build up in Clean the grate and check that all the airways are clear. 2.
- Page 27 PROBLEM POSSIBLE CAUSE REMEDY 1. Set the stove to a higher temperature. The maximum water temperature in the boiler is 65 ° C and can not be set below 40 ° C or above 80 ° C. It 1. Incorrect setting maximum Condensation is advisable to never adjust the temperature below water temperature in the boiler...
- Page 28 Centrometal d.o.o. shall not be responsible for possible incorrect data caused by printing errors or error made in transcription and all figures and diagrams are for explanatory purposes only and relevant adjustment have to be made at the spot. In any case, it reserves the right to modify its products as deemed to be required and useful without any prior notification.
