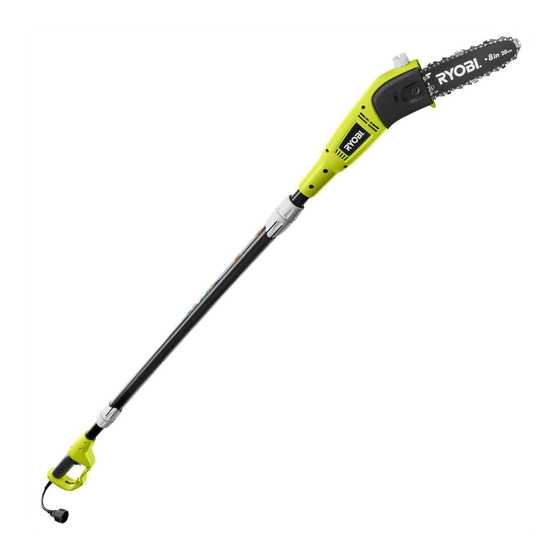

Ryobi RY43160 Assembly Manual

WARNING:

This ASSEMBLY GUIDE is not a substitute for
reading the operator's manual. To reduce the
risk of injury, user must read and understand
operator's manual before using this product.
1
Carefully remove the product and any accessories from the box. Make sure that all items listed are included.
2 Remove the four (4) rubber cord protectors from inside the poles. This material protects the cord during shipping and
MUST be discarded immediately.
3

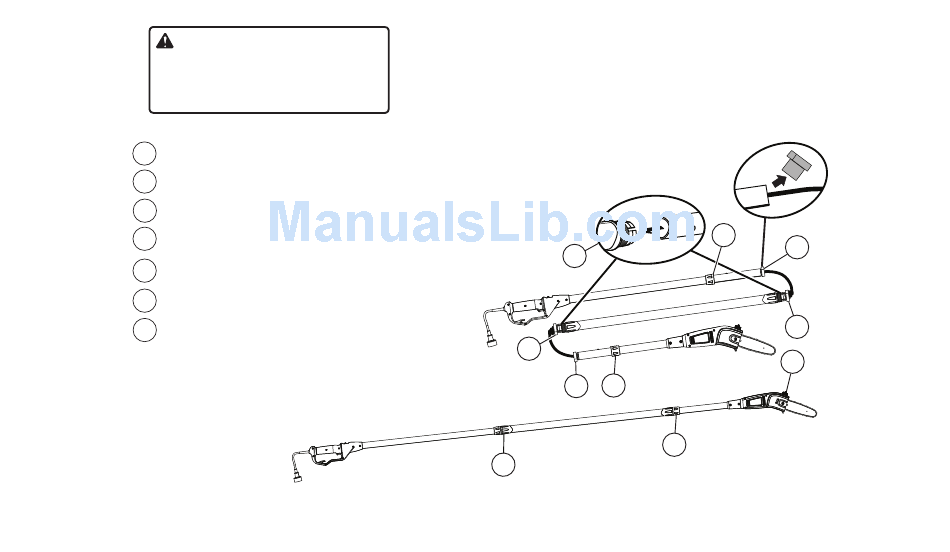

Unscrew the collar from the threaded base on the intermediate pole and push back over the cord to the handle pole shaft.
Insert the handle pole into the intermediate pole and slide together until you hear the button click.
4
The tubes are egg-shaped and will only install one way.
NOTE: Handle pole and powerhead pole should not be able to separate from intermediate pole once
assembled correctly. Repeat steps 3 through 6 if poles can be separated from intermediate pole.
5
Lower the collar on the handle pole to the threaded base on the intermediate pole and rotate clockwise to secure.
6
Repeat this process to attach the intermediate pole to the powerhead pole.
7
Fill bar oil reservoir with approximately 2 oz. of Premium Bar and Chain Lubricant.
(Bar and Chain Lubricant not included.)
ASSEMBLY GUIDE
4
2
2 6
6
5
3
2
2
7
988000778 REV:02
10-6-11
