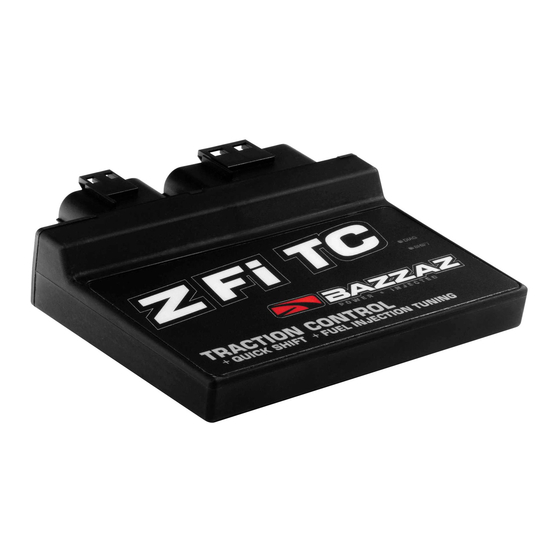

Bazzaz Z-Fi TC Installation Instructions Manual

Traction control system for honda cb1100 2013
Hide thumbs Also See for Z-Fi TC:

Advertisement

Quick Links

Download this manual
INSTALLATION INSTRUCTIONS
UNLEASH.
THE SMARTEST PERFORMANCE TUNING TECHNOLOGY
FUEL + QUICKSHIFT + TRACTION CONTROL
HONDA CB1100 2013
T391S, T391R
1>READ
WARNINGS >
• We strongly suggest that an experienced technician install this product.
• Read through all instructions before beginning installation.
• This document is intended for use by qualified technicians.
• This is not a replacement for the factory Engine Control Unit (ECU).
• Refer to a factory service manual for more specific stock component
identification/location information and removal/assembly procedures.
WARNINGS >
• Use only in race or other closed-course applications and never on public roads.
• Z-Fi products are not certified by the California Air Resource Board (CARB) for
use on CA public lands.
GETTING HELP
• Factory support is available in the US at 909-597-8300.
• For fastest support outside of the US, find your local importer at bazzaz.net.
INSTALLING
USING
R

Advertisement

loading
Need help?

Need help?

Do you have a question about the Z-Fi TC and is the answer not in the manual?

Questions and answers

Related Manuals for Bazzaz Z-Fi TC

Summary of Contents for Bazzaz Z-Fi TC

  • Page 1 • Z-Fi products are not certified by the California Air Resource Board (CARB) for use on CA public lands. GETTING HELP • Factory support is available in the US at 909-597-8300. • For fastest support outside of the US, find your local importer at bazzaz.net.
  • Page 2 2>IDENTIFY INCLUDED PARTS 1. Z-Fi TC control unit 2. Fuel harness 3. Coil harness 4. Shift Switch and mounting hardware 5. USB cable 6. Speed Amplifier 7. O2 eliminator 8. Scotchlok (1) 9. Zip ties Velcro 10. FUEL HARNESS NEUTRAL...
  • Page 3 2>IDENTIFY (CONT.) COIL HARNESS COIL 2 (RIGHT) MAIN COIL 1 (LEFT) SHIFT SWITCH CONNECTOR TC ADJUST SWITCH CONNECTOR BAZZAZ SPEED AMPLIFIER BAZZAZ SPEED AMPLIFIER WHEEL SPEED...
  • Page 4 3>REMOVE 1. Seat 2. Fuel tank 3. Side panels 4>SECURE 1. Place the control unit in the battery tray, against the battery; the rubber strap around the battery can be used to secure the control unit. BAZZAZ CONTROL UNIT...
  • Page 5 5>CONNECT 1. Connect the main connector of the Bazzaz fuel harness to the control unit. 2. Route the fuel harness to the right side of the motorcycle. GROUND COILS TPS & INJECTORS NEUTRAL CKPS O2 SENSOR POWER SPEED...
  • Page 6 4. Locate the speed amplifier provided in the Bazzaz kit. 5. Insert the mating (red) connector of the speed amplifier into the Scotchlok. 6. Connect the Bazzaz speed connector from the Bazzaz fuel harness in-line with the Bazzaz speed amplifier connector.
  • Page 7 5>CONNECT (CONT.) 1. Continue routing the Bazzaz fuel harness along the same path as the factory harness, up to the red factory Crank Position Sensor (CKPS) connectors. 2. Disconnect the factory CKPS connectors. 3. Connect the Bazzaz CKPS connectors in-line with the factory connectors.
  • Page 8 2. Locate the large 10-pin subharness connectors (which are for the injector and Throt- tle Position Sensor), found between the plastic shroud and frame. 3. Disconnect the factory 10-pin subharness connectors. 4. Connect the Bazzaz 10-pin connectors in-line with the factory 10-pin connectors. FACTORY BAZZAZ...
  • Page 9 1. Locate the factory red diagnostic connector (with a red cap on it), found on the left side of the motorcycle, on the outside of the battery tray. 2. Remove the cap. 3. Connect the Bazzaz power connector into the factory connector. 4. Connect the cap onto the other Bazzaz Power connector. BAZZAZ...
  • Page 10 7>CONNECT (CONT.) COIL HARNESS 1. Connect the main connector of the Bazzaz coil harness to the Bazzaz control unit. 2. Route the coil harness along the right side of the frame, to the front of the motorcycle where the Bazzaz ground lug was installed.
  • Page 11 8>QUICKSHIFT This bike requires the use of aftermarket rearsets to use the Bazzaz quick shift function; at the time of design no such rearsets were available. 1. Before installing the Bazzaz shift switch, be sure that the action of up shifting will put force on the shift switch in the correct direction (either push or pull, depending on the shift switch).
  • Page 12 (which could cause damage or failure of the system). 11>CHECK 1. In order to check that the system is installed correctly, download the Bazzaz Z-Fi Mapper software at bazzaz.net. 2. Plug the USB cable into the control unit and computer.
  • Page 13 If problem still persists, please contact Bazzaz tech support • Factory support is available in the US at 909-597-8300. • For fastest support outside of the US, find your local importer at bazzaz.net 12>REINSTALL After it is determined that everything is correct, reinstall the components removed in step 3.
  • Page 14 14>NEXT LEVEL SELF MAPPER Purchased separately. Build race-level fuel maps for your specific modifications, fuel type, engine, and atmospheric conditions simply while riding. 02 sensor mounts into exhaust and control box easily plugs in to any Bazzaz Z-Fi product. 299.95...
  • Page 15 MAP SELECT/ TC ADJUST SWITCH 129.95 Purchased separately. Switch maps on the fly with this handlebar-mounted switch. Quickly adjust traction control settings using a 10-point dial. Weatherproof toggle and easy installation. TC ACTIVE LIGHT Purchased separately. Illuminates when traction control is engaged.
  • Page 16 THE SMARTEST PERFORMANCE TUNING TECHNOLOGY T391S, T391R...
