Optical waveguide

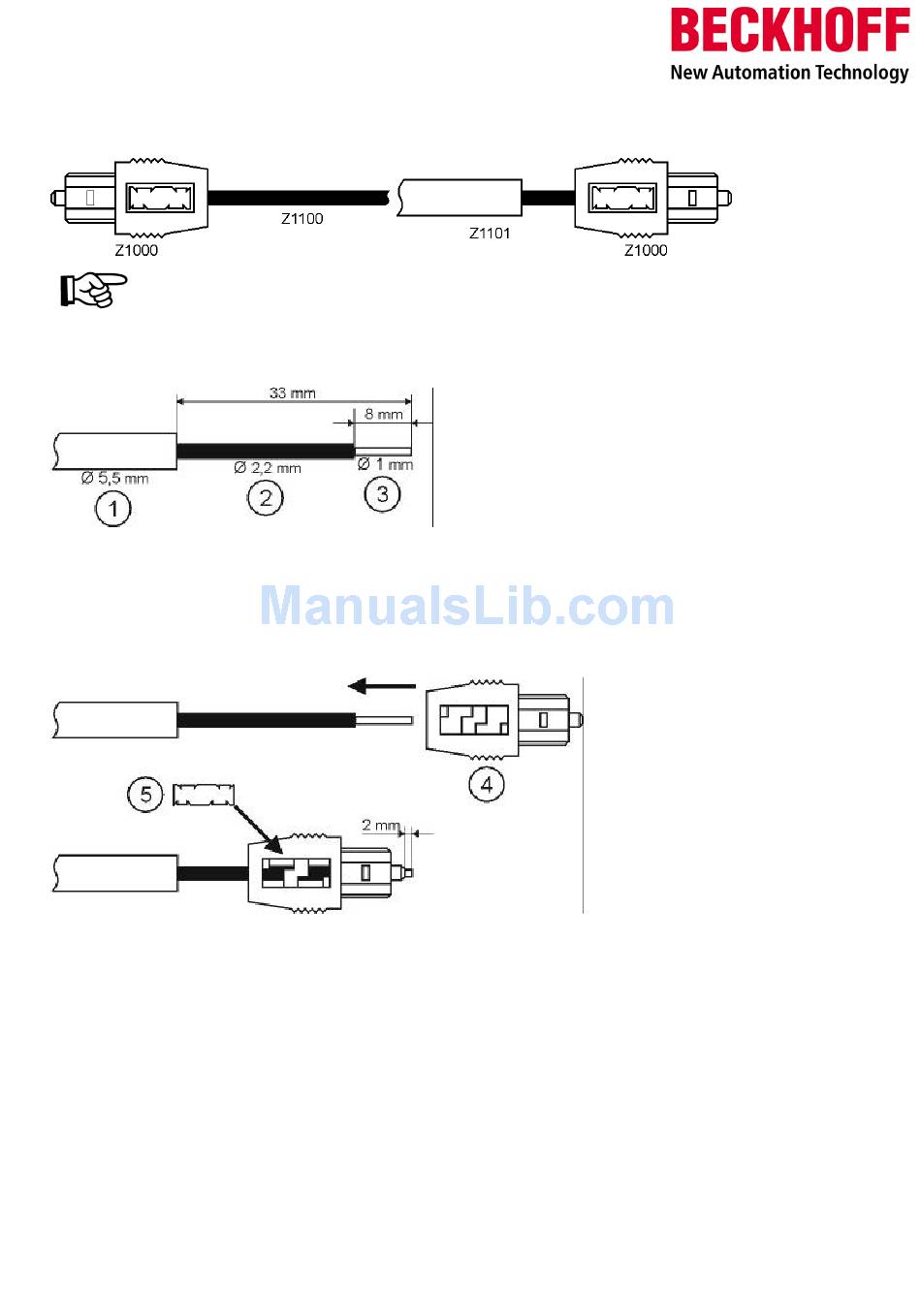

Assembly instructions for the connector Z1000
Assembled view
Pay attention during the stripping and installation, that
l
the light guide must not be kinked
l
the bending radius of the cable must not be tighter than 30mm
Prepare cable ends
l
First strip off the outer cable sheath (1) of the optical waveguide Z1101 by approx. 33 mm and cut the strain relief (yellow)
back to the start of the outer cable sheath,
by using a sharp edge cutter.
l
Cut the black fibre cover (2) by approx. 8 mm.
The plastic fibre (3) must not be hurt! Damaged fibres cause increased cable attenuation.
Assemble connectors
l
Put the connector body (4) as far as it will go onto the fibre. The fibre must protrude from the connector guide by approx.
2 mm, so that any cracks present in the fibre end face are located outside the connector and can be removed by abrasion.
l
To secure the connector insert the clip (5) into the connector body and press it in without canting.
Version 1.0
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Beckhoff Z1000
Summary of Contents for Beckhoff Z1000
- Page 1 Optical waveguide Assembly instructions for the connector Z1000 Assembled view Pay attention during the stripping and installation, that the light guide must not be kinked the bending radius of the cable must not be tighter than 30mm Prepare cable ends First strip off the outer cable sheath (1) of the optical waveguide Z1101 by approx.
- Page 2 Abrade fibre to final dimension Do not cut off the protruding fibre end, because this could lead to crack formation, but abrade the protruding fibre end flush with the connector guide using abrasive paper (600 grain size). The connector guide must not be abraded during this process! Check fibre ends (Visual inspection) Check the abraded fibre ends:...
