Summary of Contents for ClimateRight CR-2500

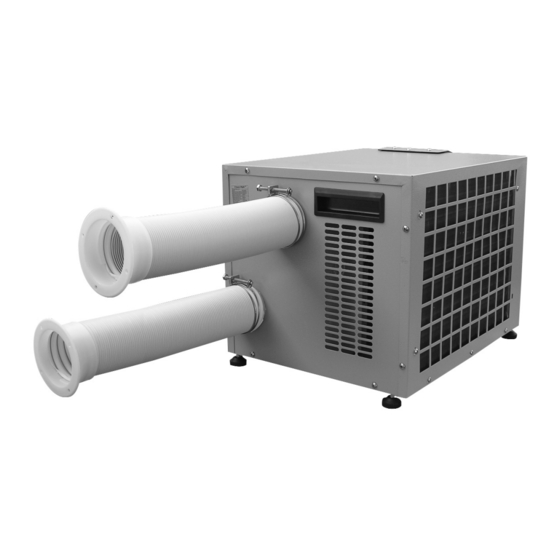

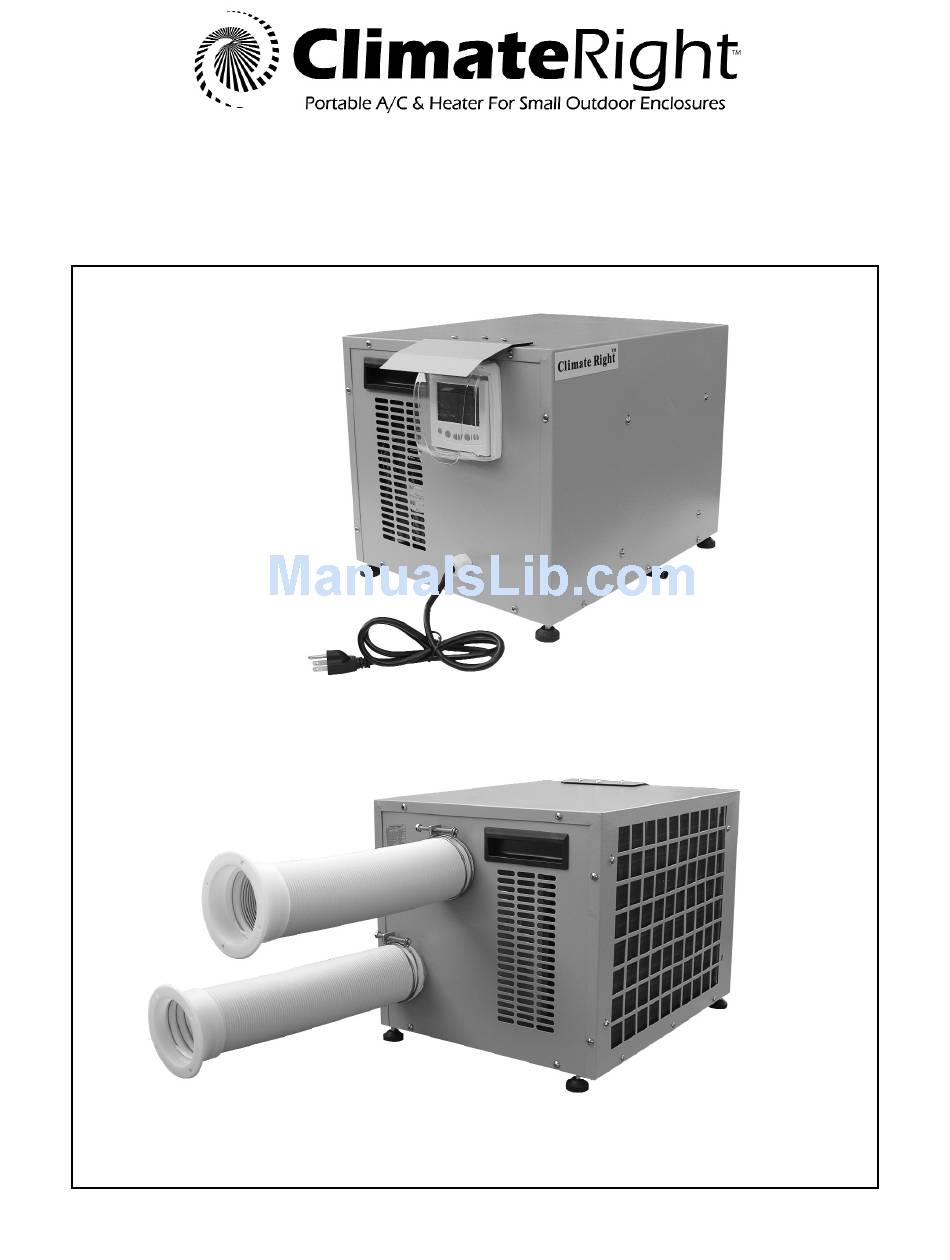

- Page 1 Assembly and Instruction Manual #CR-2500 shown below Models #CR-2500 and #CR-7000 Revised August 2011 Tacom Limited • Columbus, OH • www.ClimateRightAir.com • 800-7-CLIMATE...
- Page 2 Illustration of ClimateRight (Same basic list of parts for both Models #CR-2500 and #CR-7000.) Model #CR-2500 shown below. 1. Protection shield 2. Control panel 3. Drain mouth (CR-7000 located in the bottom corner of unit) 4. Legs (or Casters for CR-7000) 5.
- Page 3 Accessories The Accessory Kit includes parts needed to implement the 2-Hose System of air intake and air outflow for many small outdoor enclosures. See INSTALLATION INSTRUCTIONS. This hose installation method may be used for a variety of outdoor enclosures including pet houses and sheds.
-
Page 4: Installation Instructions
Installation Instructions Step 1 Step 4 Use your common Drill 2nd hole for drill and attach air outlet duct. the hole saw we have provided. Step 5 Step 2 Insert hose inside Drill first hole 16” coupler and twist away from unit for to tighten. - Page 5 Step 8 Step 11 With the Plug in unit. ClimateRight™ Carefully follow unit placed on instructions in a flat surface Operation connect hoses section of thbis to unit.
-
Page 6: Operation
Operation Note: CR-2500 and CR-7000 operate the same unless specified. IMPORTANT! Upon first use, it is necessary to go through initial set up. This is a start up procedure to “prime” the unit for normal operation. This is done for the A/C (Cooling Mode) only and is required for first start and all first season starts with Cooling Mode. - Page 7 Warranty installed under the unit. Please take this into to be voided. consideration when mounting or installing the unit. Your ClimateRight™ may produce large Uses: amounts of condensation depending on Climate Right™ can be used in a variety of ways.
- Page 8 Wiring and Specifications *Keep your Climate Right™ protected from extreme hot direct sun. Results very widely depending on ambient air temperature, size of enclosure and insulation. The Climate Right™ is intended for temperatures are between 5 F and 109 Tacom Limited • Columbus, OH • www.ClimateRightAir.com • 800-7-CLIMATE...
- Page 9 Accessory Part Specs Hose Hole Saw Coupler/Screws Clamp Mesh Filter Foot Wheel Drain Mouth Tacom Limited • Columbus, OH • www.ClimateRightAir.com • 800-7-CLIMATE...
- Page 10 The unit is specially designed to operate of your enclosure: outdoors in the elements. CR-2500: Any outdoor enclosure 5-350 cubic feet Can I use Climate Right™ INDOORS? Yes. You like pet houses, small work sheds, tear drop trailers, just should make sure there is a venting system toll booths, tents, or any small outdoor installations for heat to escape using cooling mode.
- Page 11 Why is Climate Right™ better for small spaces? The CR-2500 unit runs with a smaller compressor How does the thermostat work? A digital control than almost all bigger units on the market, and panel with multiple setting options.
- Page 12 Tacom Limited • Columbus, OH • www.ClimateRightAir.com • 800-7-CLIMATE...
-
Page 13: Troubleshooting
Troubleshooting General Systems Diagnosis: 1. The unit does not power on. Check to see if unit is plugged in to normal wall 110/120v wall socket. Consult Troubleshooting telephone number below. This problem cannot be troubleshot by email. (It is likely that a connection on the internal control panel has become loose and will require careful guidance for safety reasons). - Page 14 Troubleshooting, cont... 9. Unit "overcools" or "overheats". Check recommended enclosure sizes for the unit. This can be found in the Operation section. Climate Right is not responsible, and does not warrant, miscalculations of your enclosure cubic footage, and mistakes made in selection of unit. CR- 2500 works for 5-350 cubic foot enclosures.
- Page 15 Thank you for your purchase and becoming one of the many people and pets to enjoy the benefits of the climate controlled air by ClimateRight™. We are confident that our unit will provide you with many years of comfort and peace of mind. If you have any questions or comments please feel free to contact us at: www.ClimateRightAir.com.
