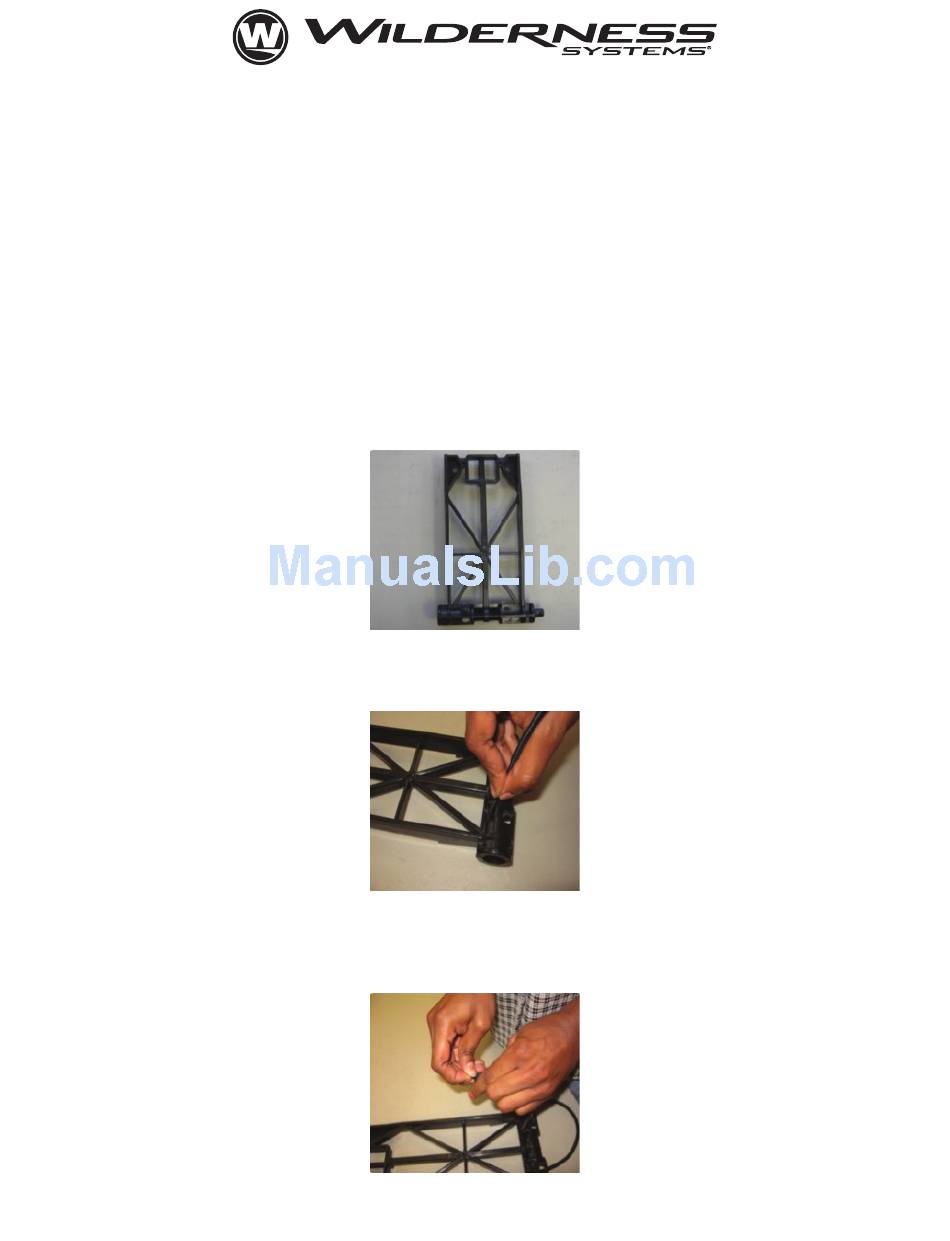

PHASE 3® AIRPRO SEAT BACK KIT
These instructions will guide you through the removal of the Phase 3 AirPro Backband and replacing it with the
Phase 3 AirPro Seat Back.
Kit Includes:
(1) Seat Back
(1) Seat Back Riser
(2) Retainer Bungees w/ hooks
(1) Riser Bungee
(1) Double Buckle Strap
(1) Spring and plunger for installation into boat
INSTALLATION INSTRUCTIONS:
1.
Get seat back riser (front view): Pivot nub on bottom will be on right side.
2. Tie a single knot on one end of 25" -3/16 bungee and insert non-tied end through left hole on bottom of seat back riser.
3. Thread it through the backside and through the adjacent hole on the right side and tie a single knot on the
end. Two knots should now be visible in front creating a bungee loop on the backside of the riser.
