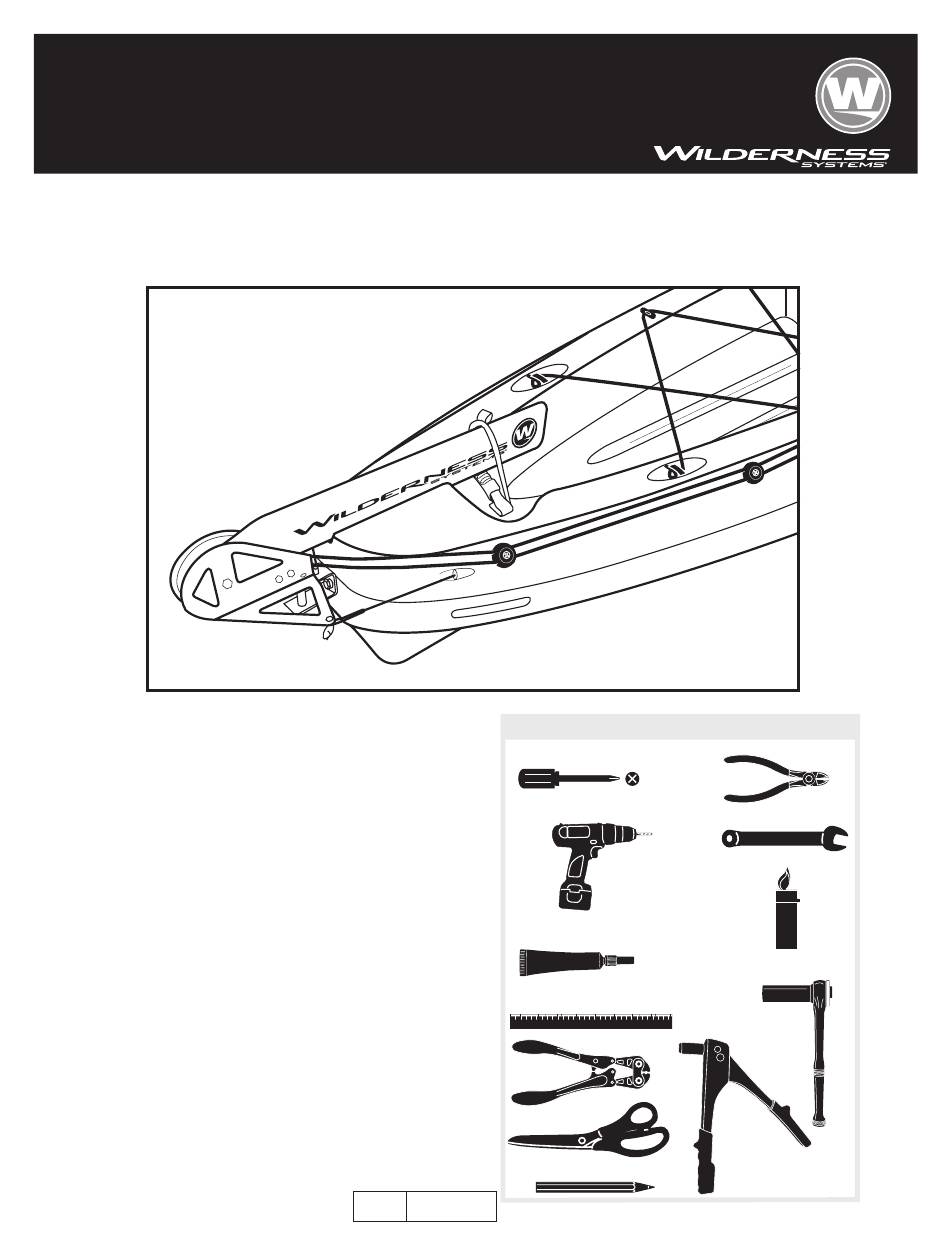

RUDDER KIT INSTRUCTIONS

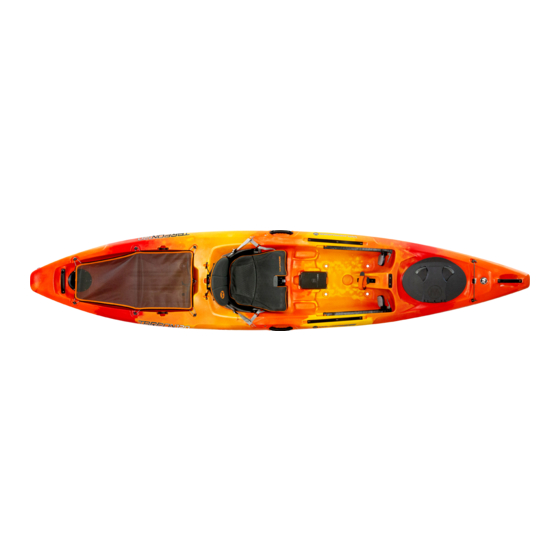

The Tarpon series is designed as a high performance
sit-on-top kayak tailored for the sport paddler. Our rudder
system is designed to fit the original design profile and is
able to stow securely and efficiently on the deck when not
needed yet can be deployed very quickly when required.
The addition of a rudder to a kayak results in additional
control and efficiency, especially in certain sea and wind
conditions. The presence of a rudder is by no means essential,
nor does it mean it must be deployed at all times. A rudder
is not a substitute or replacement for paddling experience or
talent.
CAUTION: All possible steps have been taken to provide for a
successful instillation of your new rudder but installation does
require permanent alteration of your kayak. Please read all
instructions prior to beginning the process. Be safe, measure
twice before proceeding with any step requiring drilling or
cutting of your hull. If you are uncomfortable with any part
of this process, we suggest you contact your local dealer for
support and advice. It is possible they will undertake this
installation for you at a modest cost.
All directions included in these instructions reference
starboard (right), Port (left), forward, stern, etc., are given as if
you are standing behind your kayak looking forward.
Call our Customer Service Line: 1(800)390-0819 should
additional assistance be required.
N
S
T
R
U
TARPON 120/140/160/160i
REVISION
DATE
1.0
4/20/05
C
T
I
O
N
ADDITIONAL TOOLS & MATERIALS NEEDED
Phillips Head Screwdriver
Drill with 5/32" & 5mm Drill Bit
Small Tube of Lexel, or
(equivalent marine sealant)
Measuring Tape or Ruler
Crimpers
Scissors
Non-permanent marker
S
Cable Cutters
11/32" Wrench
Cigarette Lighter
Deep 7/16" Socket
Rivet Gun
Advertisement
Related Manuals for Wilderness Systems TARPON Series
Summary of Contents for Wilderness Systems TARPON Series
- Page 1 RUDDER KIT INSTRUCTIONS TARPON 120/140/160/160i The Tarpon series is designed as a high performance sit-on-top kayak tailored for the sport paddler. Our rudder ADDITIONAL TOOLS & MATERIALS NEEDED system is designed to fit the original design profile and is Phillips Head Screwdriver Cable Cutters able to stow securely and efficiently on the deck when not...
- Page 2 INSTALLING THE RUDDER SYSTEM INSTALLING THE RUDDER Step 1-4 The rudder system consists of the rudder assembly, rudder mounting bracket, rudder rest to secure the rudder blade when stowed on deck, rudder uphaul line to provide for deployment and retrieval of the rudder blade, and the steering system to allow rudder to be angled right or left to guide kayak.
- Page 3 INSTALLING STEERING SYSTEM stowed (on deck) position and secure in a centered position Step 4-1 / 4-3 under the rudder rest bungee or in V-block. Unroll the cord attached to the rudder assembly and route it forward along the right side of the hull. Straighten cord so that both halves of loop run parallel to each other without twists or tangles.
- Page 4 INSTALLING THE RUDDER SYSTEM backed washer (neoprene side against hull) and nylon lock Remove the hatch covers and internal bags to provide access nut. Access these mounting points through hatches. The to the kayak interior. use of box head wrench is recommended and securing the Remove the existing foot brace assemblies and discard lock nut in wrench with a piece of masking tape across the them.
-
Page 5: Completed Assembly
TESTING THE RUDDER SYSTEM TESTING THE RUDDER SYSTEM STEP 1: SUPPORT THE BOAT BEFORE TESTING! Situate the kayak so that it will safely bear your weight and the rudder will not contact the floor or ground when deployed. You may wish to set the kayak on a deck with the stern extending over the edge or to put the kayak in calm water to test its operation. -
Page 6: Parts List
PARTS LIST .007" Gap Fill High Strength Seals Refrigererants PART# 3580-7230 REVISION DATE 4/20/05...
