Wilderness Systems PHASE 3 Manual

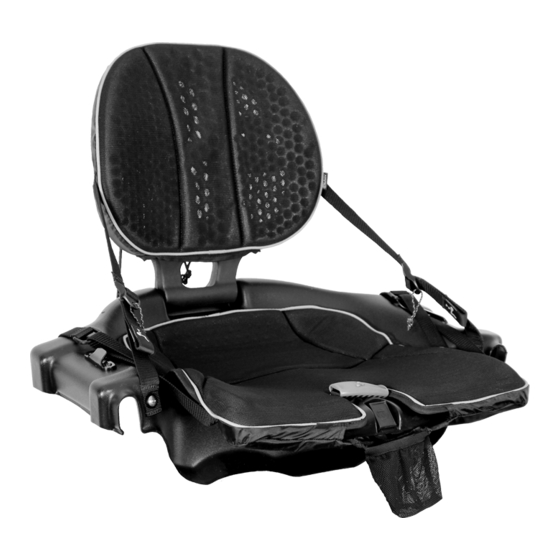

PHASE 3® AIRPRO SEAT BACK KIT
1. Seat Back (Qty. 1)
2. Seat Back Riser
(Qty. 1; includes parts for installation into boat)
3. Retainer Bungees with hooks (Qty. 2)
4. Riser Bungee (Qty. 1)
5. Double Buckle Strap (Qty. 1)
ASSEMBLY INSTRUCTIONS:
STEP 1: Insert one of the
Retainer Bungee with hooks
through top outer hole of the
riser so that once a knot is tied
it can be captured in the recess
of the front side of the riser.
STEP 4: Finished riser with
bungee attached (orientation
showing the back of the Seat
Back Riser). The hooks will be
used during the installation of
the seat.
#59504258
STEP 2: Flip riser over. Tie a
single knot on the front side of
riser, leaving no more than ½" of
bungee behind the knot (knot
should fit inside the recess on
the front of the riser).
STEP 5: Locate the bungee
retention slot on the back,
lower portion of the Seat Back
(inside the recess and hidden
from direct view).
Wilderness Systems, 575 Mauldin Road, Suite 200, Greenville, SC 29607
1
STEP 3: Repeat Step 1 & 2 for
the hole on the opposite side.
STEP 6: Loop the Riser Bungee
into the slot as shown, ensuring
that the bungee is retained in
the holes (view from top).
Rev. 11/15
