Whirlpool WEE750H0H Installation Instructions

PRODUCT MODEL NUMBERS
WEE750H0H WEEA25H0H

Installation Requirements

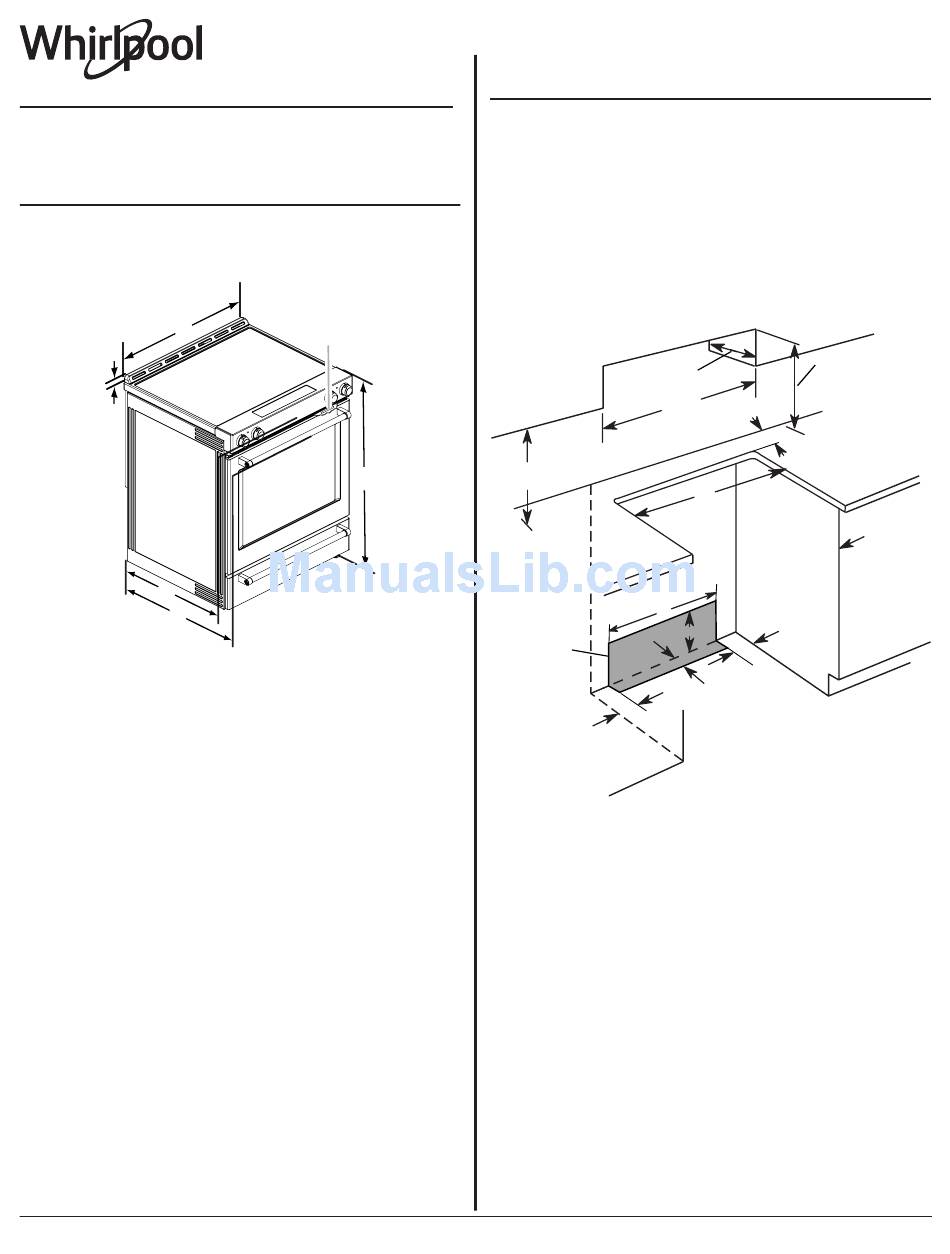

PRODUCT DIMENSIONS
These instructions cover several models. Your model may appear
different from the models depicted. Dimensions given are maximum
dimensions across all models.
Model WEE750H0H
B
A
E
F
A. 1 / " (3.0 cm) height from
3
16
cooktop to top of vent
B. 29 / " (75.9 cm)
7
8
C. Model/serial/rating plate
(located behind the oven door
on the top right-hand side of
the oven frame)
D. 36" (91.4 cm) height to top of
cooktop edge with leveling
legs screwed in all the way*
IMPORTANT: Range must be level after installation. Follow the
instructions in the "Level Range" section. Using the cooktop as
a reference for leveling the range is not recommended.
* Range can be raised approximately 1" (2.5 cm) by adjusting the
leveling legs.
Because Whirlpool Corporation includes a continuous commitment to improve our
products, we reserve the right to change materials and specifications without notice.
Electric Slide-In Range Installation Instructions
C
D
E. 27" (68.8 cm)
F. 28 / " (72.7 cm) max. depth
5
8
from handle to back of range
CABINET DIMENSIONS
Cabinet opening dimensions shown are for 25" (64.0 cm) countertop
depth, 24" (61.0 cm) base cabinet depth and 36" (91.4 cm) countertop
height.
IMPORTANT: If installing a range hood or microwave hood combination
above the range, follow the range hood or microwave hood combination
installation instructions for dimensional clearances above the cooktop
surface.
Range may be installed next to combustible walls with zero clearance.
NOTE: When installed in a slide-in cutout, the front of oven door may
protrude beyond the base cabinet.
A
F
I
A. 18" (45.7 cm) upper side cabinet to countertop
B. 13" (33 cm) max. upper cabinet depth
C. 30" (76.2 cm) min. opening width
D. For minimum clearance to top of cooktop, see NOTE*.
E. 30" (76.2 cm) min. opening width
F. The shaded area is recommended for installation of grounded
outlet.
G. 13 / " (33.3 cm)
1
8
H. 7 / " (19.5 cm)
11
16
I. 4 / " (12.2 cm)
13
16
J. 3 / " (9.4 cm) plus measurement of L
11
16
K. Cabinet door or hinges should not extend into the cutout.
L. Remaining counter depth should not exceed 2
* NOTE: 24" (61.0 cm) minimum when bottom of wood or metal cabinet
is shielded by not less than 1/4" (6.4 mm) flame retardant millboard
covered with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top of the cooking
platform and the bottom of an uncovered wood or metal cabinet.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Slide-In Cutout
D
B
C
L
E
G
I
H
J
/ " (5.7 cm).
1
4
K
Page 1 of 2
Ref. W11085332A
05/31/2017
