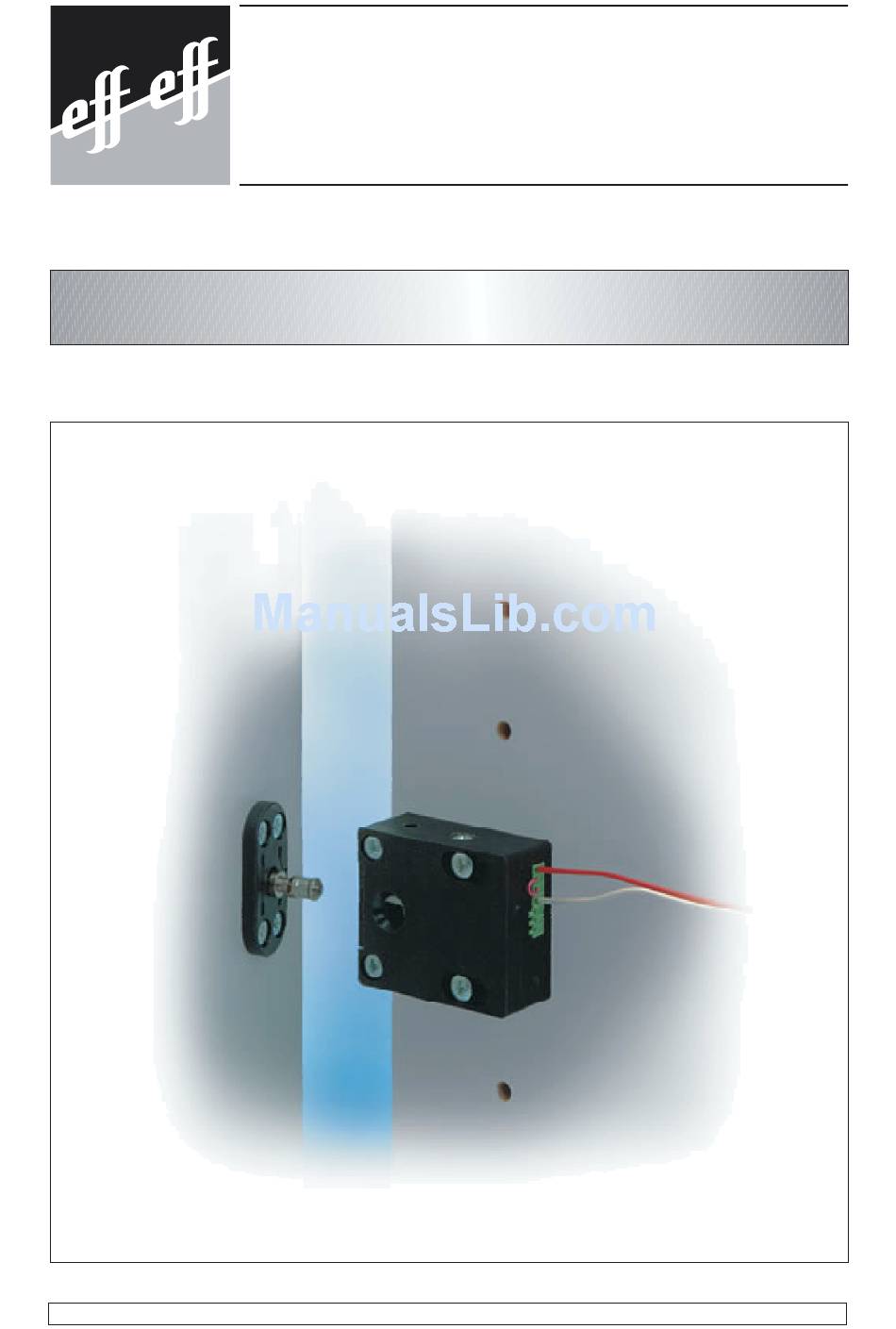

  • Page 1 Kompaktverriegelung 1049.10 Cabinet Locks 1049.10RR Montage- und Installationsanleitung Mounting and Installation Instructions (page 9) D00196...
  • Page 3: Table Of Contents

    Inhaltsverzeichnis Allgemeine Beschreibung Funktionsprinzip Bedeutung von Ruhe- und Arbeitsstrom Einstellen der Betriebsart Ruhe- oder Arbeitsstrom Montage Maßzeichnung Montagehinweise Positionierung von Kompaktverriegelung und Rosette Montagebeispiele An einer Schublade An einem Einbauschrank Elektrischer Anschluß Anschlußplan Technische Daten...
  • Page 4: Allgemeine Beschreibung

    Entriegelung und damit ein Öffnen der Tür nicht möglich. Funktionsprinzip: Die Kompaktverriegelung 1049.10/1049.10 RR besteht aus zwei Teilen. Teil 1 ist das Verriegelungselement, das z. B. am Seitenteil eines Schließfachs be- festigt wird. Teil 2 ist die Rosette, die an der Tür befestigt wird.
  • Page 5: Einstellen Der Betriebsart Ruhe- Oder Arbeitsstrom

    Einstellen der Betriebsart Ruhe- oder Arbeitsstrom Auf der Rosette sind die beiden Piktogramme für Ruhe- und Arbeitsstrom auf- gedruckt (siehe Bild 2). Für die Betriebsart Ruhestrom muß die Markierung auf dem Verriegelungselement auf das Ruhestrompiktogramm der Rosette zeigen. Entsprechendes gilt für die Betriebsart Arbeitsstrom, bei der die Markierung auf das Arbeitsstrompiktogramm zeigen muß.
  • Page 6: Montagehinweise

    Montagehinweise: Bei der Montage sind das Verriegelungselement und die Rosette, wie in Bild 4 gezeigt, bündig zueinander auszurichten. Der Verriegelungsbolzen der Ro- sette muß beim Schließen der Tür bzw. Schublade ungehindert und vollstän- dig in das Verriegelungselement eingreifen können. Ferner dürfen keine Zug- kräfte seitens der Tür bzw.
  • Page 7: Montagebeispiele

    Montagebeispiele: Die Bilder 6 und 7 zeigen, wie die Kompaktverriegelung an einem Schreibtisch mit Schubladen oder an einem Einbauschrank montiert werden kann. Der Kompaktverriegelung liegt ein Zubehörbeutel bei. Dieser enthält Befesti- gungsschrauben und Unterlegscheiben für Verriegelungselement und Rosette sowie Reduzierhülsen für die Montage in vorhandene Fachbohrungen. Unterleg- Unterleg- scheibe...
  • Page 8: Elektrischer Anschluß

    Elektrischer Anschluß Die Kompaktverriegelungen 1049.10 und 1049.10 RR müssen bei 100% Einschaltdau- er mit einer stabilisierten 12 V oder 24 V Gleichspannung betrieben werden. Eine Ent- riegelung durch Wechselspannung ist möglich, wird aber wegen des auftretenden Brummgeräusches nicht empfohlen. Die Verschaltung ist nach Anschlußplan durchzu- führen (siehe Bild 8).
  • Page 9 Cabinet Locks 1049.10 1049.10RR Mounting and Installation Instructions D00196...
  • Page 10 Contents General Description Functional characteristics Fail-unlocked and fail-locked operation Setting of operating mode fail-unlocked or fail-locked Mounting Dimensioned drawing Mounting instructions Positioning of compact lock and rosette Mounting examples Drawer Fitted cupboard Electric supply Connecting diagram Technical data...
  • Page 11: General Description

    Functional characteristics: The compact locking unit 1049.10/1049.10 RR consists of two parts. Part 1 is the locking element which is, for example mounted laterally to a safe-deposit box. Part 2 is the rosette which is installed at the door.
  • Page 12: Mounting

    Setting of fail-unlocked or fail-locked operating mode Two pictograms are printed on the rosette, one for fail-unlocked and one for fail-locked mode (see illustration 2). For operation in the fail-unlocked mode, the mark on the locking element must point to the fail-unlocked pictogram of the rosette.
  • Page 13: Mounting Instructions

    Mounting instructions: Locking element and rosette must be aligned as shown in illustration 4 (flush). When closing the door or drawer, the locking bolt of the rosette must be able to engage the locking element unimpededly and completely. Furthermore, no tensile force caused by the door respectively the drawer must act on the locking element.
  • Page 14: Mounting Examples

    Mounting examples: Illustrations 6 and 7 show possibilities for mounting the compact locking unit to a desk with drawers or to a fitted cupboard. An accessories bag is supplied with the compact locking unit. This bag con- tains fixing screws and washers for the locking element and the rosette as well as reducing bushes for the installation in existing bore holes.
  • Page 15: Electric Supply

    With regard to continuous duty operation, the compact locking units 1049.10 and 1049.10 RR must be operated with stabilized DC, 12 V or 24 V. Unlocking by AC is possible, however, it is not recommended due to the buzzing sound caused. Connecti- ons must be effected according to the connecting diagram (see illustration 8).
  • Page 16 Fritz Fuss GmbH & Co. Kommanditgesellschaft auf Aktien Bildstockstraße 20 D -72458 Albstadt Telefon +49 74 31/1 23-0 Telefax +49 74 31/1 23-240 info@effeff.com www.effeff.com ASSA ABL OY An ASSA-ABLOY Group company...
