osprey video RM3G-2 User Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

User Guide
RM3G-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RM3G-2 and is the answer not in the manual?

Questions and answers

Related Manuals for osprey video RM3G-2

Summary of Contents for osprey video RM3G-2

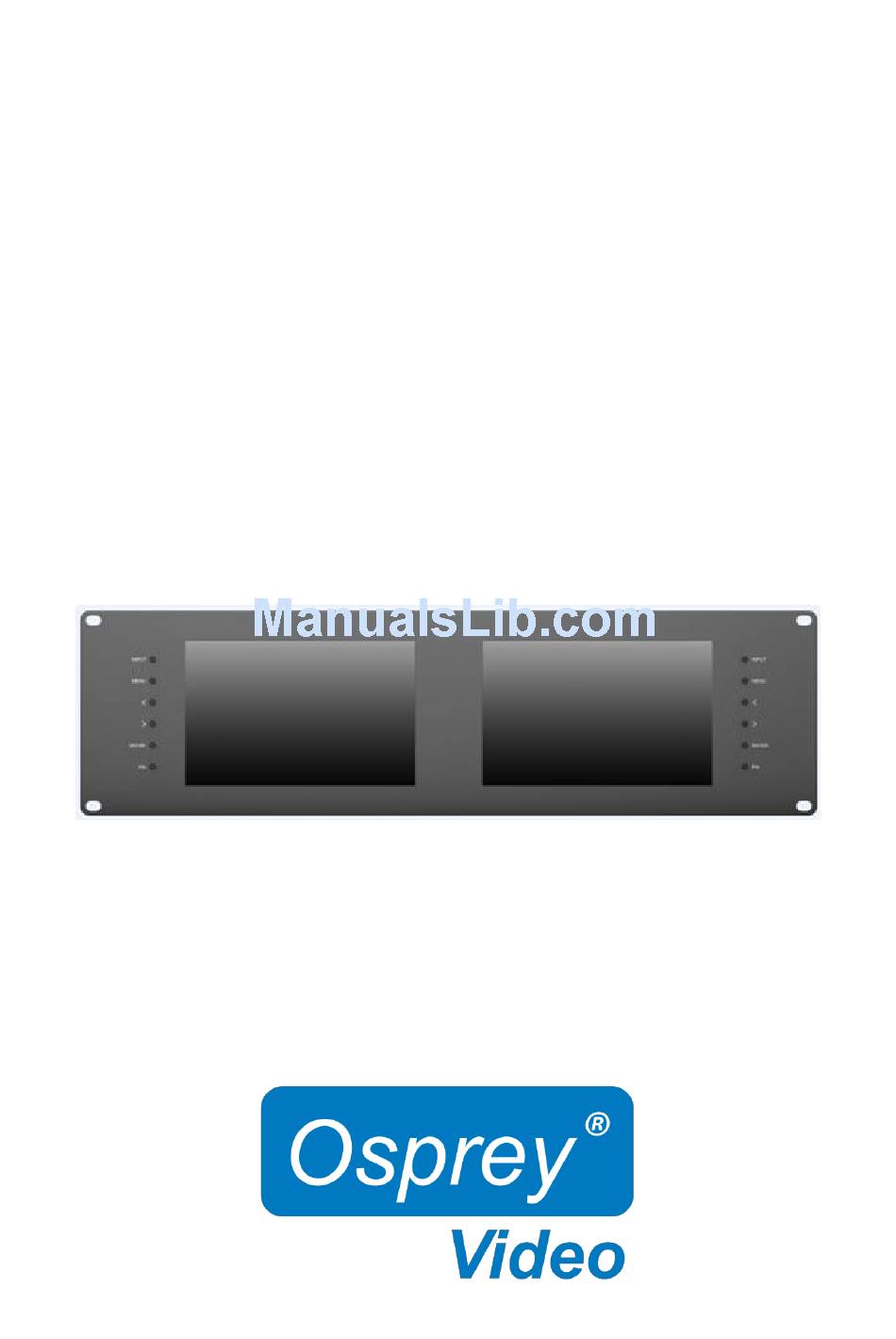

  • Page 1 User Guide RM3G-2...
  • Page 2 FEATURES:  3RU rack mount monitor with two 7” displays  3G-SDI, HDMI, Component, Composite inputs with Loopouts  Tally  Loss of Signal  2yr Warranty. Content 1. PRODUCT DESCRIPTION ................2 2. MENU SETTINGS ....................3 3. ACCESSORIES .....................

  • Page 3: Product Description

    1. PRODUCT DESCRIPTION 1． INPUT: Toggle between HDMI, Component, Composite and SDI. 2． MENU: To activate OSD (on-screen display) menu. Press to switch among the brightness, sharpness, contrast, saturation, Tint, MENU and Exit. 3． ◄ Left selection button: to select item on OSD menu and adjust its value;...
  • Page 4 Mounting Hole for power cable clip for strain relief (to prevent unintended unplugging of Power Barrel Connector YPbPr inputs YPbPr Loopouts Composite input Composite Loopout HDMI input HDMI Loopout SDI Loopout SDI input LAN port. (Future Use) 2. MENU SETTING Before setting the functions, please make sure the device is connected correctly.
  • Page 5 2-1-2. FN user-definable function button Press FN button to pop up the default options, Use “◄ / ►” buttons to adjust the value of selected item. Long press FN button for 3-5 seconds to pop up shortcut menu directly. As shown in right Figure (default menu is displayed in white font).
  • Page 6 2-2-2. Marker ITEMS OPTIONS Center Marker ON, OFF Safety Marker OFF, 95%, 93%, 90%, 88%, 85%, 80% 2-2-3. Display ITEMS OPTIONS Aspect Ratio Full Screen, 16:9, 4:3, 1.85:1, 2.35:1 H / V delay OFF, H&V Delay, V Delay, H Delay Check Field OFF, Mono, Red, Green, Blue Pixel-to-Pixel...
  • Page 7 2-2-4. DSLR Aux& Audio ITEMS OPTIONS Camera 480P , 1080I (5D-II Mode) (5D-Ⅲ Mode) 2-2-5. System ITEMS OPTIONS LOGO OFF, ON Language English, Chinese Manufacturer Default OFF, ON 0 – 100 Back Light For program upgrades...

  • Page 8: Specifications

    4. Included ACCESSORIES 1. 12V DC Power Supply 1 piece 2. TALLY connector 1 piece 3. Power Cable Line Clip 1 piece 5. Specifications 7” LED IPS Panel Physical Resolution 1280×800 Brightness 400 cd/㎡ Contrast 800: 1 Viewing Angle 178°/ 178°(H/V) Input Voltage DC 7-24V Input Signal...
