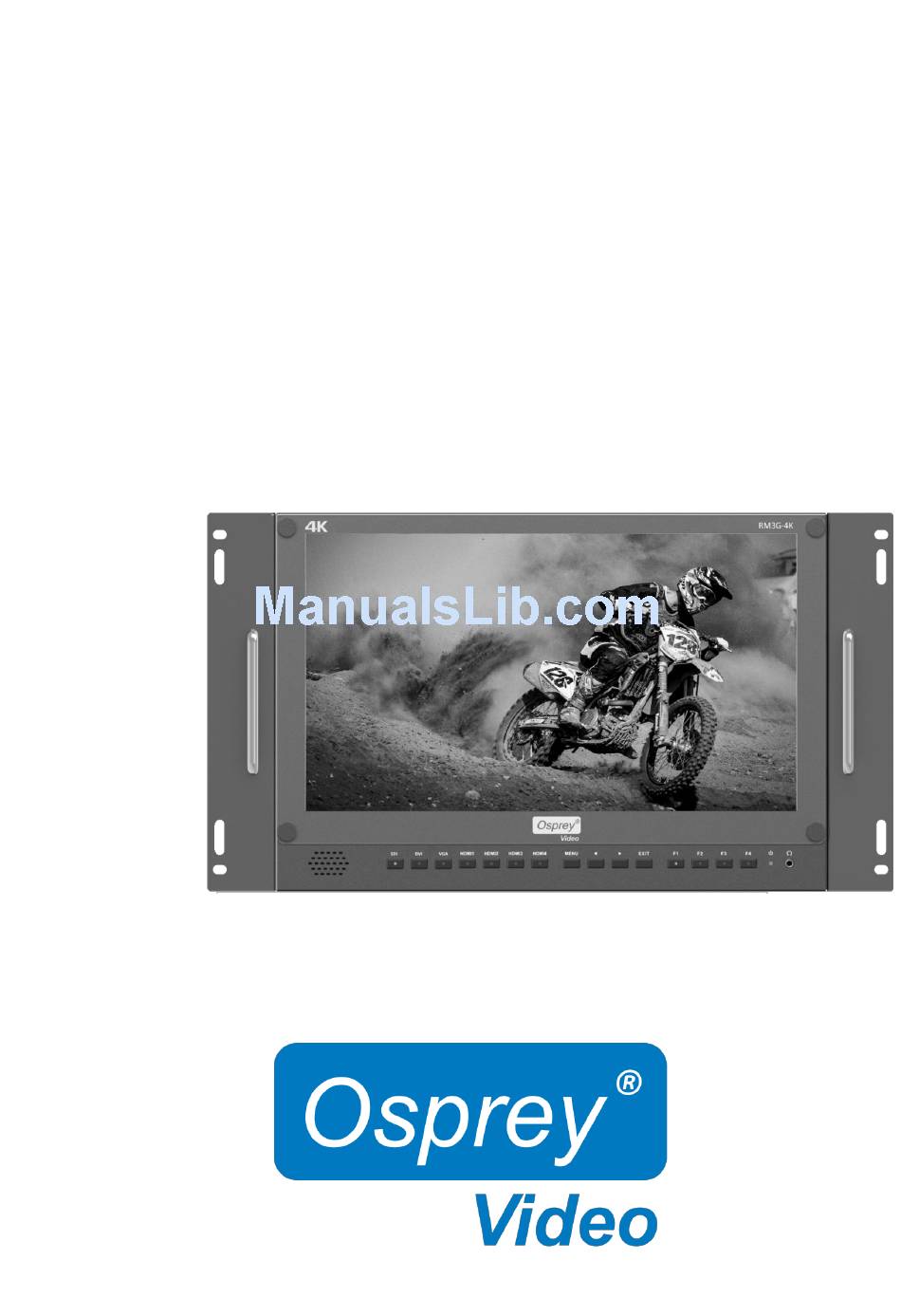

- Page 1 User Guide RM3G-4K...
-
Page 2: Table Of Contents
FEATURES 15.6” Display 4K 3840x2160 Resolution 3G-SDI, 4x HDMI, DVI, VGA Inputs, Analog Audio 1x HDMI2.0 up to 4K60, 3x HDMI1.4 up to 4K30 Quad View and PIP Tally Content 1. PRODUCT DESCRIPTION ......................2 2. -
Page 3: Product Description
1. PRODUCT DESCRIPTION Front 1. Speaker 2. SDI Signal switch to SDI 3. HDMI 1 ~ 4 Signal switch to HDMI 4. DVI Signal switch to DVI 5. VGA Signal switch to VGA 6. MENU/ENTER Press to enter menu. Press to enter option in the menu. - Page 4 7. ◄ Select option in the menu. Decrease the option value. Before enter the menu, single press to activate volume, press again to switch between volume, brightness, contrast, color, hue, sharpness and backlight. 8. ► Select option in the menu. Increase the option value.
- Page 5 1. Handle 2. VESA 75×75 & VESA 100×100 mounting port 3. Connector protector Preventing connectors from damage. 4. TALLY port 5. VGA input port 6. DVI input port 7. HDMI input port×4。 HDMI 1: HDMI2.0, supports 4K 60Hz HDMI 2, HDMI 3, HDMI 4: HDMI1.4, support 4K 30Hz 8.
-
Page 6: Sun Shade Installation
2. SUN SHADE INSTALLATION Put the sun shade on the suitcase, and match the magnets on both sides. 3. MENU SETTING 3-1. F1~F4 user definable shortcut buttons Long press any one of the 4 buttons for 3-5 seconds to activate shortcut menu setting. - Page 7 3-2. ► Buttons Operation ◄ Press ◄/► buttons to activate volume bar, Within Menu use ◄ / ► buttons to select and change the desired options. 3-3. MENU Operation When power on, press“MENU”on the device – Menu will display Press ◄ / ► button to choose the menu item； Then press“MENU”button to confirm；...
- Page 8 Display Rotate 0°， 90°， 180°， 270° Available when single display. Display Setting LR Ratio Available when dual display on left and Input Swap right. Select Region Menu setting to region selected according to users’ needs. Input Signal switch to region selected according to users’ needs. Volume 0~100 Audio...
-
Page 9: Accessories
4. Included ACCESSORIES 1. Folding sun shade cover 1 piece 2. Rugged Carry-on suitcase 1 piece 3. 15V DC adapter 1 piece 4. Battery plate bracket 1 piece 5. V-mount 1 piece 6. Base bracket 1 pair 7. TALLY connector (in bulk) 1 piece... -
Page 10: Specifications
5. Specifications Panel 15”LED backlight Resolution 3840×2160 Aspect Ratio 16：9 Brightness 330cd/㎡ Contrast 1000: 1 Viewing Angle 176°/ 176°(H/V) Input Voltage DC 12~24V（XLR） Input Signal HDMI, VGA，DVI and 3G-SDI Power Consumption ≤15W Operating Temperature -0℃~60℃ Storage Temperature -20℃~60℃ 283×267×38mm Dimension （LWD）...
