osprey video RM12G-1 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User Guide
RM12G-1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RM12G-1 and is the answer not in the manual?

Questions and answers

Related Manuals for osprey video RM12G-1

Summary of Contents for osprey video RM12G-1

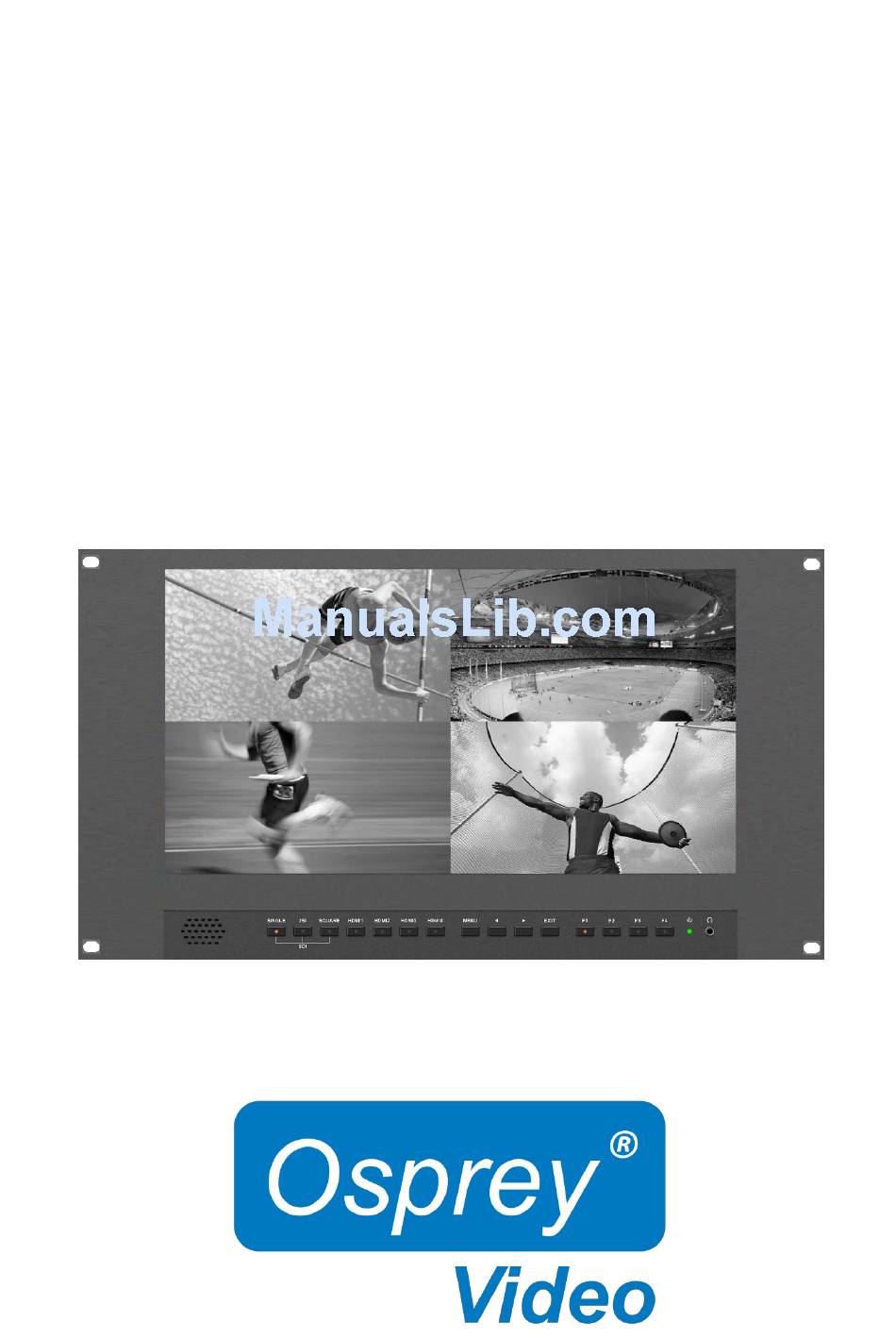

  • Page 1 User Guide RM12G-1...

  • Page 2: Table Of Contents

    FEATURES  15.6” Display 4K 3840x2160 Resolution  2x 12G-SDI inputs plus 2x 3G/HD-SDI inputs (Level A/B)  Quad Link 12G Square Division.  Quad Link 12G Two-Sample Interleave (2SI)  1x HDMI2.0 up to 4K60  Quad View and PIP ...

  • Page 3: Product Description

    1. PRODUCT DESCRIPTION 1. Speaker 2. SDI Press to monitor the signal input to each connector. [SINGLE] Button - Press the button to select SDI input for one channel. - Mode changes in the order of [12G SDI 1] , [12G SDI 2] , [3G SDI 3] , [3G SDI 4]. [2SI] Button -Press the button to select 2-SAMPLE Interleave SDI input signal through two or four SDI input connectors.
  • Page 4 - Mode changes in the order of [Dual-Link 2SI], [Quad-Link 2SI]. [SQUARE] Button - Press the button to select Quad-Link Square Division mode. 3. HDMI 1 ~ 4 Press the button to select HDMI input. 4. MENU/ENTER Press to enter menu. Press to enter option in the menu.
  • Page 5 1. Handle 2. Connector protector Preventing connectors from damage. 3. USB port (Only for firmware upgrades). 4. TALLY port 5. SDI (BNC) Input connectors for SDI 6. SDI (BNC) Loopout connectors for SDI. Note – Loopouts are only active when the power is on.

  • Page 6: Sund Shade Installation

    7. HDMI input connectors Input connectors for HDMI signals. HDMI 1: HDMI2.0, supports 4K 60Hz HDMI 2, HDMI 3&HDMI 4: HDMI1.4, supports 4K 30Hz 8. DC IN (XLR) terminal Connects the DC power supply to the monitor. Pin number Signal ①...

  • Page 7: Menu Settings

    3. MENU SETTINGS 3-1. F1~F4 user definable shortcut buttons Long press any one of the 4 buttons for 3-5 seconds to activate shortcut menu setting. Selected Setting will be highlighted in white, options will be highlighted in yellow, unavailable options will be highlighted in gray. Select option via “◄/►”...
  • Page 8 menu. Brightness 0~100 Contrast 0~100 Saturation 0~100 Picture 0~100 Sharpness Temperature 9300，7500，6500，5800，User Backlight 0~100 Center Marker ON, OFF Safety Marker OFF，95%，93%，90%，88%，85%，80% Aspect Marker Full，17:9, 16:9, 4:3，1.85:1，2.35:1 Aspect Full，17:9, 16:9, 4:3，1.85:1，2.35:1 Function Underscan ON, OFF Pixel To Pixel ON, OFF Check Field OFF, Red, Green, Blue Freeze Input ON, OFF...
  • Page 9 Select Region Menu setting to region selected according to users’ needs. SDI 1, SDI 2 , SDI 3 , SDI 4, 2SI, SQUARE, HDMI 1, HDMI 2, HDMI 3, Input HDMI 4 Volume 0~100 Audio CH CH0&CH1, CH2&CH3, CH4&CH5, CH6&CH7, Audio CH8&CH9, CH10&CH11,...

  • Page 10: Connecting The Sdi Signals

    4. Connecting the SDI signals The monitor accepts Single Link 12G/6G/3G/HD/SD-SDI, Dual-Link 3G-SDI, and Quad-Link 3G/HD-SDI. Use the appropriate input connectors depending on the input signal, referring to the tables on the next page. 12G –SDI Single-Link Signal Connector Input signal SDI 1 12G SDI SDI 2...

  • Page 11: Signal Formats

    5. Available Signal Formats SD-SDI Signal system Signal format 525i 4:2:2 YCbCr 10bits 625i 4:2:2 YCbCr 10bits HD-SDI Signal system Signal format 1280×720 4:2:2 YCbCr 10bits (23.98/24/25/29.97/30/50/59.94/60p) 1920×1080 / 2048×1080 4:2:2 YCbCr 10bits (50/59.94/60i) (23.98/29.97/24/25/30p) (23.98/29.97/24/25/30Psf) 3G-SDI Signal system Signal format 1920×1080/2048×1080 4:2:2 YCbCr 10bits 3G-LevelA /...
  • Page 12 (47.95/48/50/59.94/60p) 4:4:4 GBR+A 10bits 4:4:4 YCbCr 10bits 4:4:4 YCbCr+A 10bits 4:4:4 GBR 12bits 4:4:4 YCbCr 12bits 4:2:2 YCbCr 12bits 6G-SDI Dual Link Signal system Signal format 3840×2160/4096×2160 4:2:2 YCbCr 10bits (47.95/48/50/59.94/60p) 3840×2160/4096×2160 4:4:4 GBR 10bits (23.98/24/25/29.97/30p) 4:4:4 GBR+A 10bits 4:4:4 YCbCr 10bits 4:4:4 YCbCr+A 10bits 4:4:4 GBR 12bits 4:4:4 YCbCr 12bits...

  • Page 13: Accessories

    3G-SDI Quad Link (Square Division) Signal system Signal format 3840×2160/4096×2160 4:2:2 YCbCr 10bits (47.95/48/50/59.94/60p) 3840×2160/4096×2160 4:4:4 GBR 10bits (23.98/24/25/29.97/30p) 4:4:4 GBR+A 10bits 4:4:4 YCbCr 10bits 4:4:4 YCbCr+A 10bits 4:4:4 GBR 12bits 4:4:4 YCbCr 12bits 4:2:2 YCbCr 12bits 3G-SDI Quad Link (2SI) Signal system Signal format 3840×2160/4096×2160...

  • Page 14: Specifications

    7. Specifications Display Screen 15.6”8bit IPS Physical Resolution 3840×2160 Aspect Ratio 16：9 Brightness 330cd/㎡ Contrast 1000: 1 Viewing Angle 176°/ 176°(H/V) Input Voltage DC 12~24V（XLR） Input Signal 3G-SDI, 12G-SDI, HDMI and TALLY Output Signal 3G-SDI loop, 12G-SDI Power Consumption ≤34W Operating Temperature 0℃~60℃...
