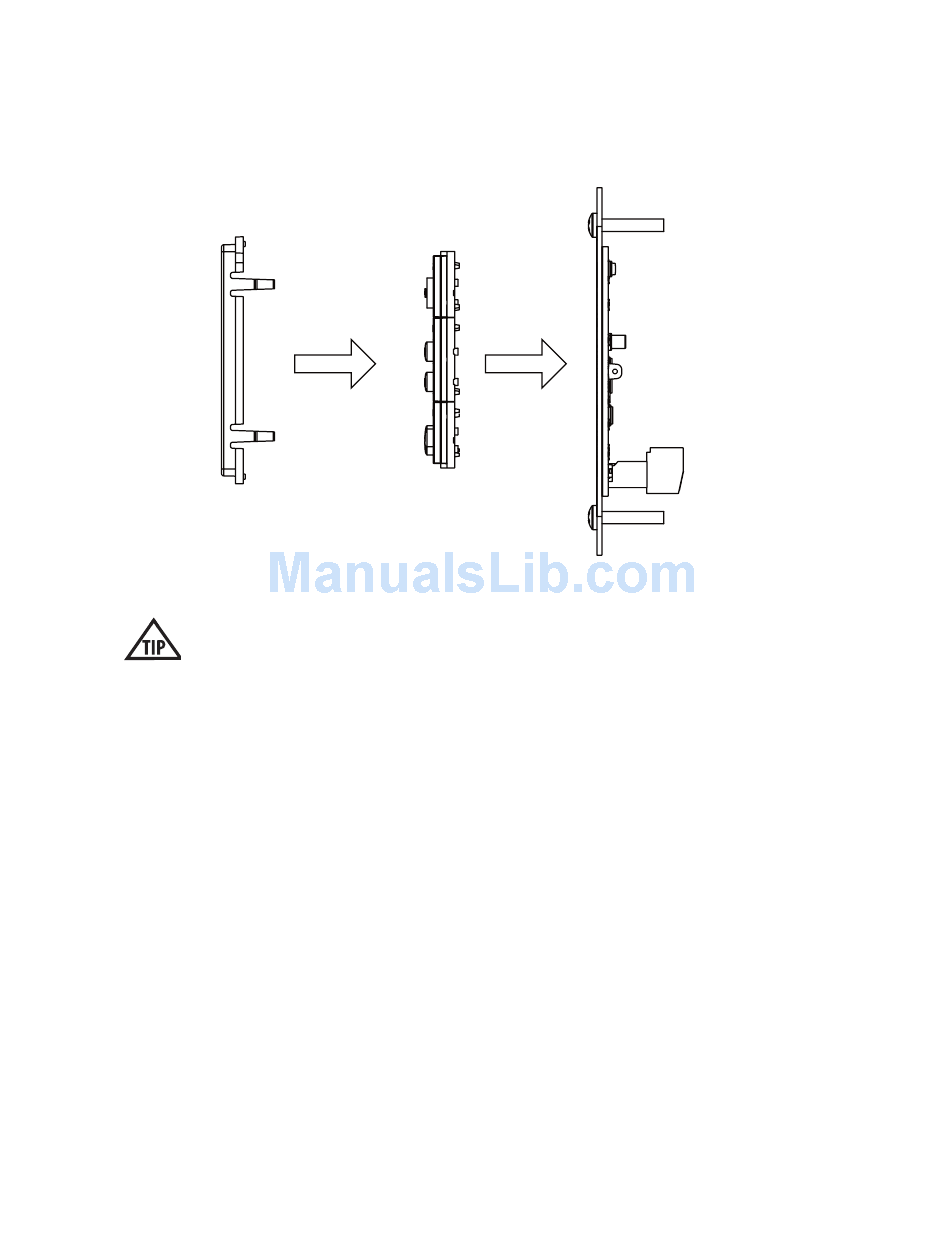

2. Attach Bezel
After selecting the appropriate insert modules, place them against the circuit board
and secure them in place with the bezel.
Bezel
Be sure the bezel is placed right side up - otherwise it may block the pro-
gramming window and Status LED. The SP Controls logo should be in the
correct orientation.
IV. PixiePlus Installation cont'd
Inserts Pixie
Board
6
