IV. PixiePlus Installation
Select the button insert modules that match the design of your remote control. For
example, if your remote control has a single toggling power button, select the Tog-
gling Power module.
Each button can be programmed to send as many as four commands, as a macro
(all at once) or in round robin.
1. Assemble Insert Modules
4-Button Source modules are available in two options:
1) COMP, VID, SYNC, MUTE
2) Blank, MUTE, Ch UP, Ch DN
Note: You must chose one and only one insert module of each type, i.e. you cannot
use two source insert modules and no volume module.
Included Insert Modules
Customized silkscreened button modules are also available; contact SP Controls for
more information.

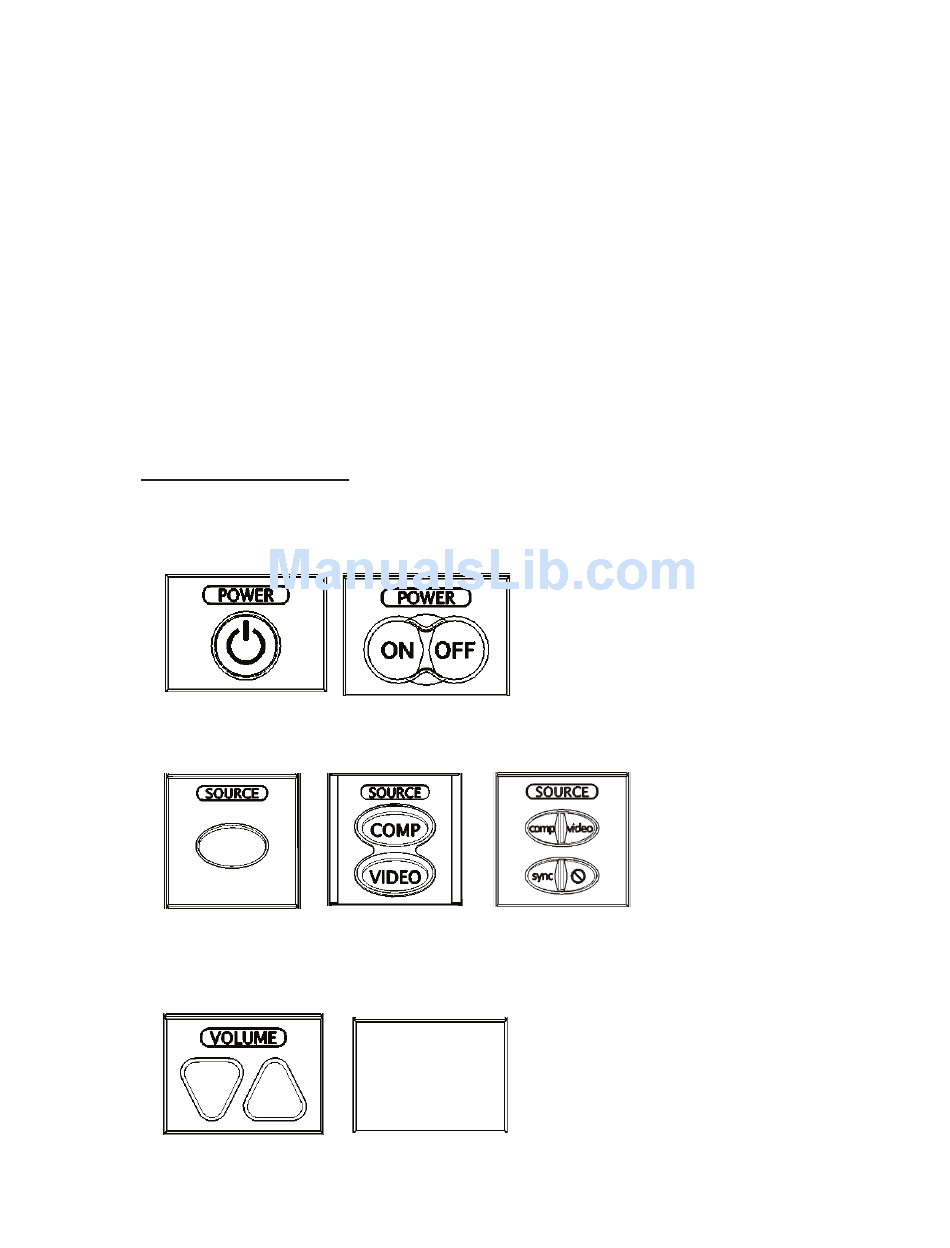

Toggling
Toggling
Control
Discrete
Discrete Discrete
(2-Button) (4-Button)
Blank
5
