Vacuum attachment

Advertisement

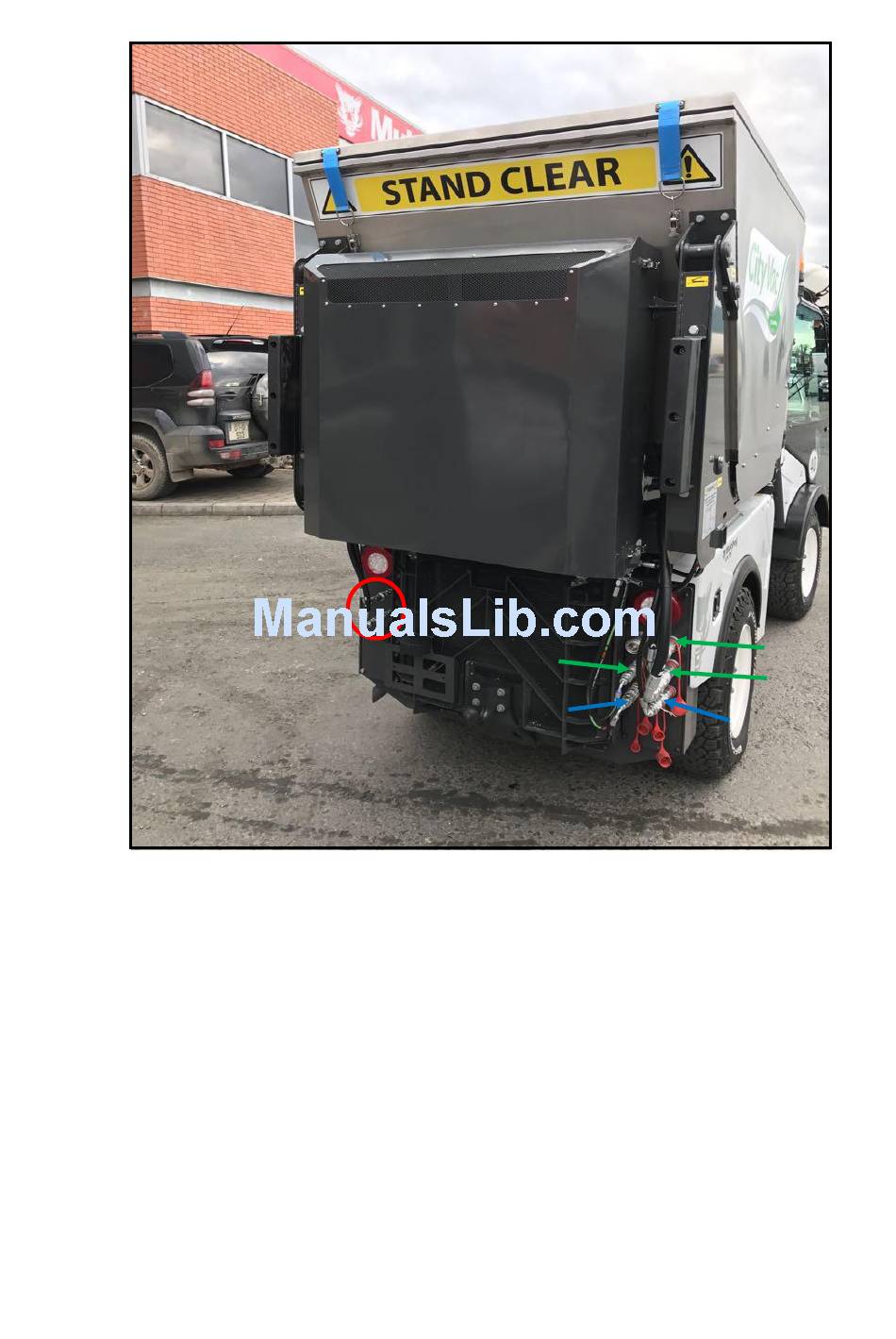

When connecting the attachment hoses to the Auxiliary ports on the rear of the machine
note as stated below where each hose goes in Fig. 4 above.
1. (HPCO) The two hoses on the rear LHS highlighted in red are the oil feed and return
for the high pressure carry over.
2. (Motor) The three hoses highlighted in green on the rear RHS are for the oil supply,
return and case drain for the fan motor. These are all different sizes and coupling
types and will therefore only connect one way.
3. (Tip CYL.) The two bottom hoses on the rear RHS (Blue) are the oil supply and return
to the tipping cylinders.
FIG.4
