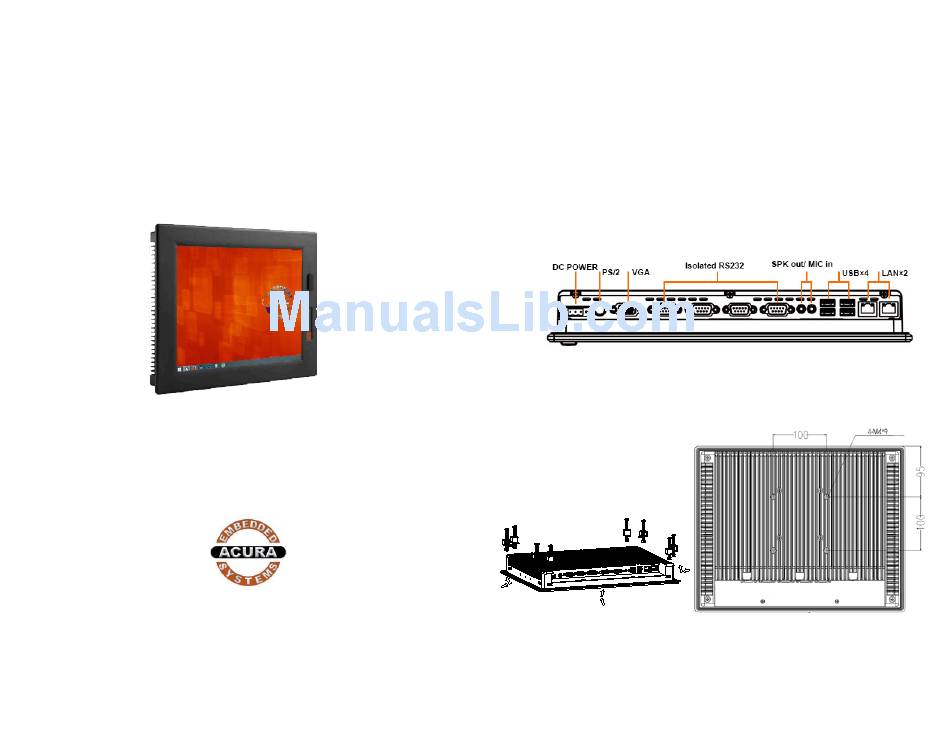

Acura Embedded Systems AcuPanel PC1500 Quick Manual

AcuPanel PC1500
AcuPanel PC1500
Quick Guide
Edition 1.0
Acura Embedded Systems Inc.
Acura Embedded Systems Inc.
Slim and rugged
Panel Industrial Computer
-
with Intel® Core™ i5 430UM
1. OVERVIEW
AcuPanel PC1500 is the use of a high-performance Intel® Core i5-430UM with
3M cache,1.20GHz module and expansion module I/ O carrier board used in
combination, highly reliable, industrial-grade finless Panel. with Magnesium
alloy body, 15" 1024 × 768 LCD display and 12V~24V DC input, support ACPI
management
.
2. MAIN FEATURES
•
I/O Interface
•
Suspended installations
When mounted to cabinet, it needs to use eight-supporting suspension
parts as shown below.
•
VESA installation
Support interfaces with 100mm arm pad is mounted according to the VESA
standard.
Quick Guide
1
Updated in September 27/16
