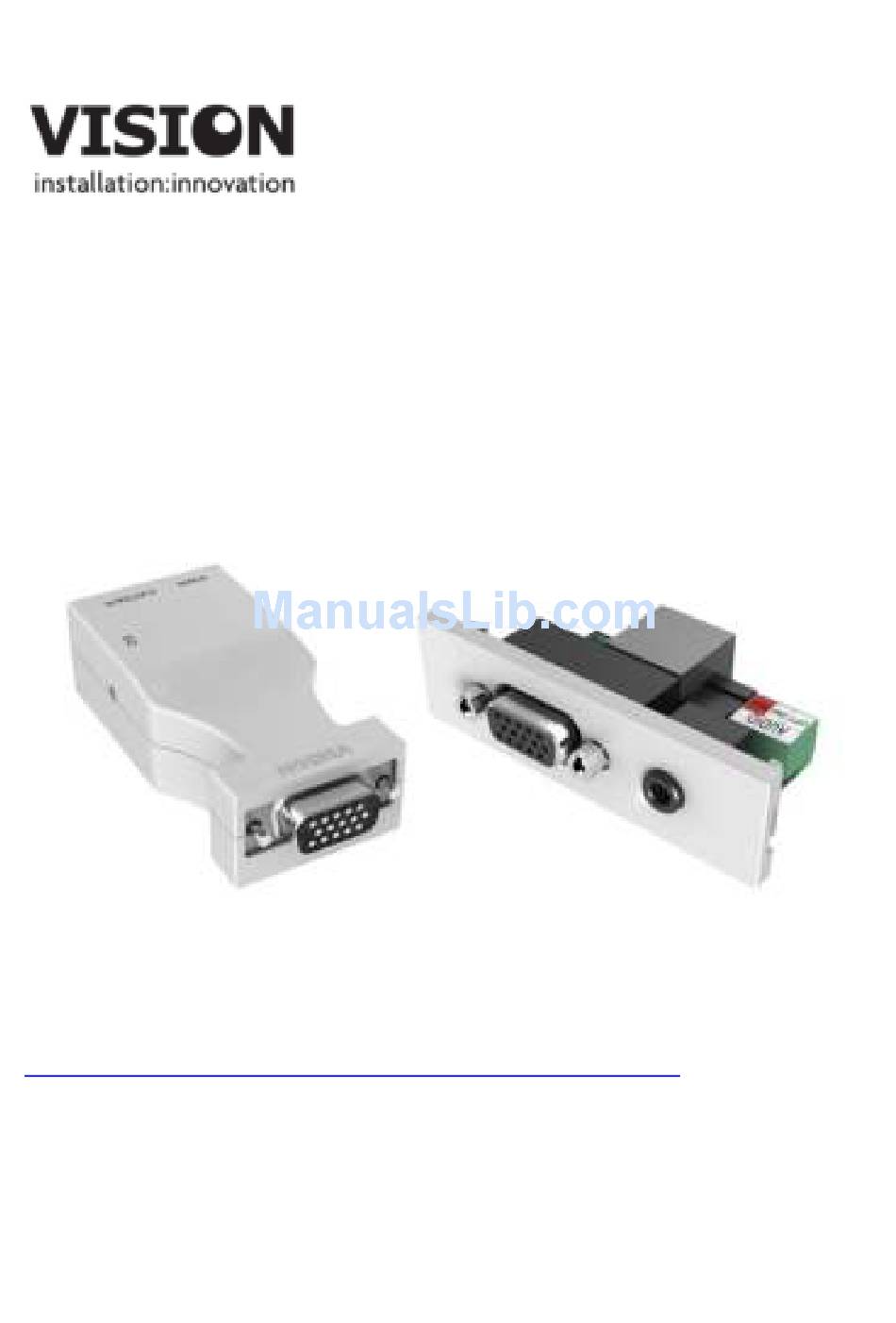

- Page 1 TECHCONNECT TC2 VGATP OWNERS MANUAL www.visionaudiovisual.com/ techconnect/ tc2_vgatp TC2_VGATP_manual_en...
-
Page 2: Declaration Of Conformity
THI S APPLI ANCE TO RAI N OR MOI STURE. All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. -
Page 3: Place Of Installation
WARNI NG SI GNS I f you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision. PACKAGI NG Save all packing material. I t is essential for shipping in the event the unit ever needs repair. -
Page 4: Front And Rear Panels
FRONT AND REAR PANELS This product requires mains pow er. Connect pow er to either the transmitter or receiver but not both. Transmitter – clips into Techconnect faceplate VGA I nput (from PC) Audio I nput (3.5mm Minijack from PC) VGA Output (via RJ45) Audio Output 12V 0.5A DC... -
Page 5: Specifications
SPECI FI CATI ONS TRANSMI TTER DI MENSI ONS: 71 x 21 x 43 mm (length x width x height) RECEI VER DI MENSI ONS: 74 x 33 x 21 mm (length x width x height) PRODUCT WEI GHT: 0.2 kg per set RECOMMENDED MAXI MUM CABLE LENGTH: CAT5e: 1024 x 768: 60m / 1280 x 1024: 50m / 1600 x 1200: 40m CAT6: 1024 x 768: 80m / 1280 x 1024: 70m / 1600 x 1200: 60m... -
Page 6: Warranty
WARRANTY This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale.
