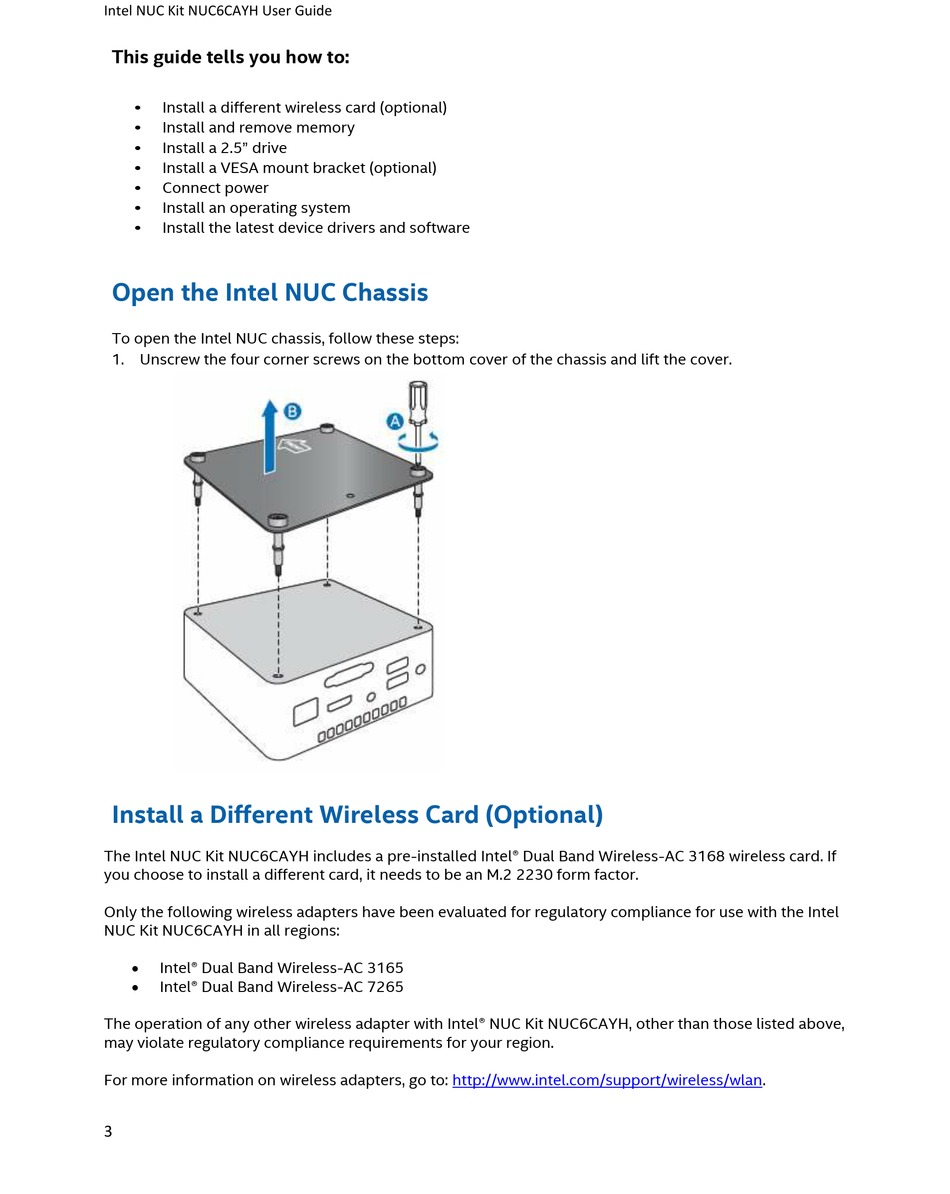

Intel NUC Kit NUC6CAYH User Guide
This guide tells you how to:
Install a different wireless card (optional)
•
Install and remove memory
•
Install a 2.5" drive
•
Install a VESA mount bracket (optional)
•
Connect power
•
Install an operating system
•
Install the latest device drivers and software
•
Open the Intel NUC Chassis
To open the Intel NUC chassis, follow these steps:
1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover.
Install a Different Wireless Card (Optional)
The Intel NUC Kit NUC6CAYH includes a pre-installed Intel® Dual Band Wireless-AC 3168 wireless card. If
you choose to install a different card, it needs to be an M.2 2230 form factor.
Only the following wireless adapters have been evaluated for regulatory compliance for use with the Intel
NUC Kit NUC6CAYH in all regions:
 Intel® Dual Band Wireless-AC 3165

Intel® Dual Band Wireless-AC 7265
The operation of any other wireless adapter with Intel® NUC Kit NUC6CAYH, other than those listed above,
may violate regulatory compliance requirements for your region.
For more information on wireless adapters, go to: http://www.intel.com/support/wireless/wlan.
3
