Summary of Contents for Samsung P O R T A B L E D U A L - B A N D SCH-R630

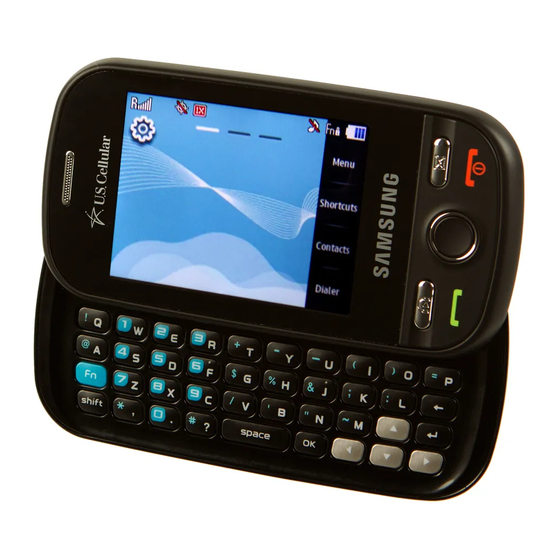

- Page 1 SCH-R630 Series P O R T A B L E D U A L - B A N D M O B I L E P H O N E User Manual Please read this manual before operating your phone, and keep it for future reference.
-
Page 2: Intellectual Property
Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. -
Page 3: Disclaimer Of Warranties; Exclusion Of Liability
MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. -
Page 4: Table Of Contents
Table of Contents Section 1: Getting Started ...4 Understanding this User Manual ......4 Charging the Battery ....... . . 4 Activating Your Phone . - Page 5 Your Handset ....... . . 106 Samsung Mobile Products and Recycling ....106 UL Certified Travel Adapter .
- Page 6 Availability of Various Features/Ring Tones ....121 Battery Standby and Talk Time ..... . . 122 Battery Precautions .
-
Page 7: Section 1: Getting Started
Charging the Battery Your phone is powered by a rechargeable standard Li-Ion battery. Only use Samsung-approved charging devices and batteries. Samsung accessories are designed to maximize battery life. Use of other accessories may invalidate your warranty and may cause damage. -
Page 8: Use The Travel Adapter
The travel adapter included with your phone is a convenient, light-weight charger that rapidly charges your phone from any 120/220 VAC outlet. Plug the Travel Adapter into a standard 120 VAC or 220 VAC wall outlet. Important!: For connection to an electrical supply not located in North America, you must use an adaptor of the proper configuration for the power outlet. -
Page 9: Install The Battery
Contact your Wireless Carrier and follow their instructions for obtaining service, if necessary. We suggest that you read this guide to fully understand the services your phone supports. Install the Battery Note: Your phone comes packaged with a partially charged rechargeable standard Li-Ion battery and travel adapter. -
Page 10: Turn Your Phone On
Lift the battery up (1) and away (2) from the phone, bottom end first. Turn Your Phone On Press and hold the End key ), on the bottom right of the phone. Note: As with any other radio-transmitting device, do not touch the antenna (at the bottom of the device) while using your phone as this can affect call quality and can cause the phone to operate at a higher power level than is necessary. -
Page 11: Listen To Voice Mail
In Standby mode, press the Dialer soft key. Press and hold (or dial your own mobile number and press ). (For more information, refer to “Making a Call” on page 20.) You are prompted to enter your password. Storage Card (Optional) You can install a microSD or microSDHC provide additional memory for storing files (such as, music/sound... -
Page 12: Section 2: Understanding Your Phone
Section 2: Understanding Your Phone This section outlines some key features of your phone. It also describes the screen format and the icons that will be displayed when the phone is in use. Features of Your Phone Full-screen Touch Screen [high-resolution (240 x320 pixels), color] •... - Page 13 Clear Key — Deletes characters from the display when you are in text entry mode. Press this key to return to the previous menu or screen when navigating features on your phone. Display — Indicates the status of your phone (including numbers dialed, feature and function screens, status icons, message...
-
Page 14: Open View (Front) Of Your Phone
Open the QWERTY keypad by sliding lower half to the right. Features Earpiece — Lets you hear other parties to calls, music, video sountracks, and tones. Display — Indicates the status of your phone, including numbers dialed, feature and function screens, status icons, message indicators, signal strength, and so on. -
Page 15: Closed Rear View Of Your Phone
the previous menu or screen when navigating features on your phone. Power On-Off/End Key — Ends a call. When you press and hold the key, the power goes On or Off. When you receive an incoming call, press to send the call to voicemail. Messaging Key —... -
Page 16: Display Screen Icons
• Menu — Launches the Main Menu1. Three virtual lamps in the second line of the display indicate which Home screen is currently showing. The sample screen indicates Home screen 1 is showing. With the QWERTY keypad open, the display rotates automatically from portrait mode (as shown above) to landscape mode (as shown... -
Page 17: Menu Navigation
Main Menu Navigation There are two Main Menus: Menu1 and Menu2. To access your phone’s menus, tap the Menu soft key, other soft keys, or icons on the Widget Tray or Shortcuts screen. In Standby mode, tap the Menu soft key. Main Menu1 appears in the display. -
Page 18: Using The Widget Tray
The Widget Tray contains Widget icons that you can tap to place the corresponding Widget onto one of the three Home screens. In Standby mode, select one of the three Home screens by swiping your finger horizontally across the display. Open the Widget Tray by tapping the Widget Tray icon ) in the upper left corner... -
Page 19: Entering Text
The following tutorials are available: • Physical Keys • Widget Tray • Shortcuts • Adjusting Volume • Making a Call • Contacts • Camera • Music Player • Widget and Menu • Zooming Select the desired tutorial. Entering Text Your phone has a QWERTY ( keypad to support quick and easy text input. -
Page 20: Receive Messages In Standby Mode
Input mode determines how you enter text, numbers, and symbols. Optional input modes are abc, Abc, ABC, Fn (symbols), and Fn (symbols locked). While at any text entry screen: To toggle between abc and Abc and ABC, tap • To toggle between abc / Abc / ABC mode and Fn mode, tap •... -
Page 21: Speakerphone Mode
During a call, you can use your phone handsfree or share the call with other people nearby by placing your phone in Speakerphone Mode. To enable Speakerphone Mode: • Follow the prompt and unlock the screen. Tap and slide the screen button to the On position. Caution!: Keep the phone away from you ear while in Speakerphone Mode. -
Page 22: Camcorder Mode
– or – • Tap the Dialer soft key and press and hold the “Normal mode activated” briefly appears in the display. Adjust the Ringer In Standby mode, press the Volume key (on the left side of the phone) Up or Down. Options are: •... -
Page 23: Section 3: Call Functions
Section 3: Call Functions This section provides procedures for making and answering calls. This section also describes features, such as call logs and call timers, that help you make calls and manage your call time. Note: Although the procedures in this section are written for the Dialer keypad, you can also perform all of these procedures, except Plus (+) Code (International Shortcut) Calls, using the QWERTY keypad. -
Page 24: Three-Way Calling
Call two other numbers and connect them to your call using three-way calling. In Standby mode, tap Dialer. The Dialer screen appears in the display. Enter the number for the first party in your call, then press When connected, ask the other party to remain on the line. Tap Dialer. -
Page 25: Plus (+) Code Dialing
Use 2-touch dialing to speed dial Contacts from 10 through 99. In Standby mode, tap Dialer. The Dialer screen appears in the display. Tap the number key representing the first digit of the desired Contact’s speed dial number. Press and hold the number key representing the second digit of the desired Contact’s speed dial number. -
Page 26: Voice Dialing Tips
The voice recognition capabilities of your R630 are exceptional due to advanced, speaker-independent technology. This means you do not need to “train” your phone to understand your voice. You can use your voice in a natural manner to dial numbers. Note: End Calls Before relaunching the Voice Service voice recognition software —... -
Page 27: Dialing A Number
If the recognized name has multiple numbers stored for it (that is, Mobile 1, Mobile 2, Home, and so on), Voice Commands displays the possible choices and prompts you with “Which location?” Say or tap one of the following number types: •... -
Page 28: Call Answer
If the caller can be identified, the caller’s number (or name if it’s in your • Contacts) appears in the display. If the caller cannot be identified, Call from unavailable #, Call from • restricted #, or no number appears in the display. Tip: Assign pictures to Contacts entries. -
Page 29: In-Call Options
If you’re on a call, your phone beeps when another call is incoming. Contact your Wireless Carrier for availability. Press to connect and ask the calling party to remain on the line. Press and the second caller is placed on hold and you’re returned to the original caller. -
Page 30: Calls
Options — The following options pop-up: • Contact — Launches the Contact List screen, letting you make a three-way call with one / another of your Contacts. (For more information, refer to “Finding a Contacts Entry” on page 34.) • Recent Calls — Launches the All calls screen, listing the most current calls. -
Page 31: All Calls
From the Calls menu, Tap Dialed. A list of your dialed (outgoing) calls appears in the display. Tap and drag the list to scroll up or down for a particular call, then tap the call to view further information. The following buttons are available: •... -
Page 32: Erase Logs
Tap and drag the list to scroll up or down for a particular call, then tap the call to view further information. The following buttons are available: • Call — Dial this number. • Msg. — Compose and send a message (Text / Picture / Video) to this number. -
Page 33: View Timers
View the duration of your last call, total calls, and calls made during the life of your phone using the View Timers feature. Note: View Timers is not for billing purposes. From the Calls menu, tap View Timers. The following options appear in the display: •... -
Page 34: Store Numbers From Call Logs
Tap Done. You are prompted to confirm the reset of the timer(s) and/or counter(s). To reset the timer(s) and/or counter(s), tap Yes. Note: Although Total call timers and data counters can be reset, Lifetime call timers and data counters can never be reset. Store Numbers from Call Logs Store numbers from your Dialed, Received, Missed, and All call logs to Contacts. -
Page 35: Section 4: Understanding Your Contacts
Section 4: Understanding Your Contacts This section details how you can manage your daily contacts by storing their names and numbers in your Contacts list. You can have your Contacts entries sorted by name. Contacts Up to 500 entries can be stored in Contacts. Each entry can have up to five associated phone numbers and one e-mail address. -
Page 36: Adding A New Contacts Entry
You can use either of two methods to add an entirely new entry to Contacts. Dial Method From a Home screen, tap Dialer. Enter the number you wish to add to your Contact List. Tap Save. The following options pop-up in the display: •... -
Page 37: Finding A Contacts Entry
Tap New Contact ( ). The New Contact screen appears in the display. Open the QWERTY keypad. Tap the Name field. Enter the name of the new Contact. (For more information, refer to “Entering Text” on page 16.) Locate and tap one of the following fields: Mobile 1 Home Business... -
Page 38: Voice Method
View the desired Contact’s information by tapping the Contact. The following options are available: • Press to dial the number associated with the name. • Tap . The following options appear in the display: – Set Speed Dial — Assign a Speed Dial number to this Contact. –... -
Page 39: Editing A Contacts Entry
Select the desired option. The selected option’s sub-menu appears in the display. Editing a Contacts Entry Editing Contacts Name and Numbers Find the Contacts entry you wish to change. See “Finding a Contacts Entry” on page 34 for more information. Tap the desired Contact. -
Page 40: Pause Dial From Contacts
Tap Options. The following pause options appear in the display: • Wait — A hard pause (waits for input from you). • 2-Sec Pause — A 2-second pause after which dialing resumes. Select the pause option of your choice to it into the number sequence. -
Page 41: Assigning A Ringtone To A Contacts Entry
– or – If there are no pictures, or if you cannot find an appropriate ➔ picture, tap Camera. The camera viewfinder screen appears in the display with Resolution set to 1024x768. • Press the Camera key. The new picture appears in the display. •... -
Page 42: Create A New Entry
Select Add New Contact. The Add New Contact screen appears in the display showing the following number type options: Mobile 1 Mobile 2 Business Select the number type that matches your new entry. Enter a name for the new entry. (For more information, refer to “Entering Text”... -
Page 43: Assignment During Entry Creation
To speed dial the Contacts entry assigned to Location 235, tap • , then press and hold (3-touch dialing). You can assign one or more Speed Dial numbers to a Contacts entry during new entry creation or by editing an existing entry. Assignment During Entry Creation To assign a Speed Call number to a new Contacts entry number, do the following:... -
Page 44: Contacts Groups
Contact Groups let you easily send messages to multiple, selected Contacts. You can also use Groups to find Contact entries and to add/remove Contacts names in a Group or to create or rename a Group. Add Contacts Entry to a Group Using Add New/Edit Contact Option To add a Contact to a Group using either the Add New Contact option or the Edit Contact option, do the following:... -
Page 45: Rename A Group
Note: To unmark a marked Contact, tap the Contact to clear the check mark. When you have marked the Contacts you want to add to the group, tap Done. “Contact added to” appears briefly in the display, followed by the selected Group name. Then, the selected Group list appears, listing all Contacts in the Group. -
Page 46: Deleting A Contacts Entry
To confirm erasure of the highlighted Group, tap Yes. To retain the Group, tap No. Deleting a Contacts Entry In Standby Mode, tap Contacts appears in the display. Scroll to and tap the Contact you want to erase. A check mark appears in the box to the right of the Contact. -
Page 47: Section 5: Messaging
Section 5: Messaging This section explains how to send or receive different types of messages. This section also describes the features and functionality associated with messaging. Note: You can only enter message text using the QWERTY keypad. Types of Messages Your phone is able to send and receive Text and Picture messages to compatible phones and devices. -
Page 48: Receive Text Messages
• Tap the desired symbol. The selected symbol appears in the Text field. Once you’re finished entering your message, press Send. Receive Text Messages When you receive a message in Standby mode, the ringer sounds (unless turned off) and New Message appears in the display along with the closed envelope icon ( the message also appear in the display along with the following options:... - Page 49 Slide the QWERTY keypad open. ➔ Tap Add From Contacts / Recent Calls / Groups / Online Album and find and select a recipient for this message. – or – Tap New# and enter a recipient number or e-mail address. Tap and slide to scroll down to, and then tap, the Text field, then enter the message text using the keypad.
-
Page 50: Send Picture Messages In Standby Mode
Send Picture messages to recipients with a compatible phone or other device, and accompany the Picture message with a voice memo, ring tone, or downloaded melody. Tip: You can send a Picture message to up to ten recipients. Enter each recipient’s address or phone number in a separate Send To field of the Picture message composer. -
Page 51: Receive Picture Messages
• Tap Record New or tap the desired sound file to be inserted into your message. Tap and slide to scroll down to, and then tap, the Subject field. Enter a subject for the Picture message using the keypad. (For more information, refer to “Entering Text” on page 16.) to complete the message text and set message send options. -
Page 52: View A Picture Message Later
Press to complete the message and set message send options. The following options appear in the display: • Play Again — Play the sound file included in the picture message again. • Forward — Send a copy of this message to another recipient. •... -
Page 53: Send Video Messages In Camcorder Mode
Tap New# and enter a recipient number or e-mail address. To add a video clip to the message, tap the Video field. The My Videos folder appears in the display. Tap the desired video, then tap – or – Activate the phone’s camcorder and record a new video ➔... -
Page 54: Message Folders
Using the display as a viewfinder, when the image that you wish to send appears in the display, press the Camera key ) to record a video. The time counter at the bottom of the Camcorder viewfinder screen indicates recording time in seconds. -
Page 55: Create A Draft Message
• Reply With Copy — Compose and send a reply message to the originator of the received message and include a copy of the original message. • Erase — Delete this message from the Inbox. • Lock / Unlock — Block/permit erasure of the highlighted message. -
Page 56: Managing Draft Messages
to complete the message text and set message send options. The following options appear in the display: • Save As Draft — Save the message to your Drafts box. • Insert Quick Text — Insert pre-composed text in your message. •... -
Page 57: Listen To Voicemail Now
Messages in your voice mailbox are logged in the Voicemail folder of the Messages menu. Open the Voicemail folder to view the Callback # (if available), Urgency, and other details of the Voicemail messages in your voice mailbox. Listen to Voicemail Now Once you’ve received a new voicemail message, you have the option to either: Listen Now —... -
Page 58: Message Settings
• All Messages — Deletes all unlocked messages stored in all of the message folders, except Voicemail. Select the folder containing the messages that you wish to delete. You’re prompted to confirm the erasure of all messages in the selected folder or in all folders. To delete the messages, tap Yes. -
Page 59: Section 6: Camera-Camcorder
Section 6: Camera-Camcorder Use your Samsung phone to take full color digital pictures and videos, display them on your phone’s vivid color display, and instantly share them with family and friends. It’s fun, and as easy to use as a traditional point-and-click camera or camcorder. This section explains how you can do the following: Take pictures and videos with your phone’s built-in digital Camera-... -
Page 60: Taking Multiple-Shot Pictures
• Press Send via to send a copy of the photo in a Picture message to your addressee(s) or to your online Album or over a Bluetooth connection. • Press Set as to assign the photo as a Home screen wallpaper or as a Contact ID image. -
Page 61: Taking Videos
Using the display as a viewfinder, point the camera lens at your subject. Press the Camera key ( wish to capture appears in the display. The camera takes multiple pictures in quick succession (Continuous) or one each time you press the Camera key ( then the multiple-photo screen appears in the display. -
Page 62: Screen Layouts
Tip: You can change a number of the Camcorder’s settings to suit particular uses for your pictures. For more information, refer to “Camcorder Options” on page 65. Screen Layouts Camera Screen When you activate your phone’s camera, the first line of the display is reserved for the current camera settings and picture counter. -
Page 63: Camcorder Screen Buttons
image of the subject at which the camcorder is pointed, flanked by option buttons. Camcorder Screen Buttons Returns you to the Home screen. Changes the Camera-Camcorder mode to Camera. Lets you set the Camcorder’s Recording Mode to Limit For Send or For Save. Lets you select values for White Balance, Effects, and Quality. -
Page 64: Shooting Mode
Mode Switches to Camcorder mode. The Camcorder view finder screen appears in the display. Shooting Mode Shooting Mode lets you set your phone’s Camera to take a one or more pictures, with or without colorful formats or frames, at the touch of a key. -
Page 65: Options - Camera Tab
Select the desired Timer option. If you select 3, 5, or 10, the Self Timer icon appears in the camera screen in the display. When you press the Camera key ( timer indicates the time remaining before the camera takes the picture. Tip: To stop the countdown timer without resetting it, press Note: The Size setting affects zoom capabilities. -
Page 66: Night Shot
Effects Change the look of your pictures with Effects. Choose from six available settings such as Gray, Negative, and Sepia. The selected color effect previews in the display before you take the picture. ➔ In Camera mode, tap Options following options pop-up: Note: Choose Normal to disable Color Effects. -
Page 67: Shutter Sound
➔ In Camera mode, tap Options The following options pop-up: • On — Photos are displayed for review immediately after you take them. • Off — Photos are not displayed after you take them. Instead, they are automatically saved to the My Pictures folder. Select the review setting of your choice. -
Page 68: Camcorder Options
in the display. To Zoom in on a subject, press the Volume key down. To Zoom out from a subject, press the Volume key up. The next time you press the Camera key ( camera takes an enlarged picture according to your selected Zoom setting. -
Page 69: Options - Camcorder Tab
This is an indicator only. Camcorder resolution is fixed at 176 x 144 (pixels). Brightness Brightness lets you temporarily lighten the videos you record. Increasing the Brightness (-4 – +4) lightens your videos (0 is normal). In Camcorder mode, press Brightness. The horizontal Brightness scale appears in the display. -
Page 70: Camcorder Settings - Settings Tab
• Black & White — Subjects and pictures appear in black and white. • Sepia — Subjects and pictures appear in a brownish-gray hue. • Aqua — Subjects and pictures appear in an aqua hue. • Negative — Subjects and pictures appear in inverted colors. Select the color effect of your choice. -
Page 71: Audio Recording
as an audible reminder that your camcorder has stopped recording a video. In Camcorder mode, press Options Sound. The following options pop-up: • Off • Stop Beep Select the desired end sound. You’re returned to the camcorder viewfinder screen. Audio Recording In Camcorder mode, press Options Recording. -
Page 72: Access From Camera
Access from Camera In the Camera viewfinder screen, press Quickview. The latest picture that you’ve saved appears in the display. The following options are available: • To browse pictures in the gallery manually, swipe across the current image. • To browse pictures in the gallery as a slide show, tap Slide Show. •... -
Page 73: The Videos Gallery
• Slide Show — Play or Make a slide show. • Lock/Unlock — Block/permit picture erasure. • Move — Move one or more selected pictures from the Card or Phone to the Phone or Card. • View by Location — List thumnail images of All stored pictures, pictures stored in the Phone, or pictures stored on the Card. -
Page 74: Access By Menu Or From New Video Msg Screen
• To browse the video images in the gallery as a slide show, tap Slide Show. • To play a video, tap it. • To send the current picture as a Picture Message / To your Online Album, tap Send via. •... -
Page 75: Point, Click, And Send Pictures And Videos
To view a video, tap its thumbnail image. The Video Player screen appears in the display and the video begings playing. The following controls are available: • To pause playing a video, tap • To resume playing a video, tap •... - Page 76 When you are finished composing your message, tap Send to send the Picture or Video message to the intended recipient(s).
-
Page 77: Section 7: Multimedia
Section 7: Multimedia This section outlines your phone’s multimedia functions and key features associated with multimedia. Accessing Multimedia ➔ In Standby mode, tap Menu Multimedia options appear in the display: • Camera — Lets you launch and set up your phone’s camera. (For more information, refer to “Camera-Camcorder”... -
Page 78: Music Player Controls
• All Songs — Lists all music files on the Memory Card and lets you play individual music files or play multiple music files by creating a temporary music playlist. • Playlists — Lists any playlists you have saved and lets you create, save, and manage playlists. -
Page 79: Loading Music Files
To transfer music to a microSD™ Memory Card, do the following: Before loading music files on a Memory Card, do the following: • With your phone powered off, insert the Memory Card into your phone. (For more information, see “Install a Memory Card” on page 8.) •... -
Page 80: Record New
Press to return to the previous menu, or press return to Standby mode. Record New My Sounds lets you record voice memos and lets you assign preloaded and downloaded sound files as ringers for calls, alarms, and other alerts. From the Multimedia menu, tap Ringtones. Record New and a list of sound files appears in the display. -
Page 81: Section 8: Voice Service
Section 8: Voice Service This section explains how to use your phone’s speech recognition software to place calls and to launch a number of your phone’s features. Launching Voice Service Voice Service is state-of-the-art voice recognition software for your mobile phone that lets you dial numbers, lookup contact information, and open applications using your voice. -
Page 82: Voice Command Settings
• Check — Lets you check your phone's status (that is, network coverage, signal strength, battery, and more in the same report), voicemail, messages, missed calls, time, signal strength, battery, volume, and phone number. • Contacts — Lets you look up and display contact information for any name stored in your Contacts list by saying the name. -
Page 83: Adapt Voice
From the Voice Service menu, select Voice Command ➔ Settings Sensitivity. The Sensitivity screen appears in the display, showing the following options: • More Sensitive • Automatic • Less Sensitive Tap the desired option. Adapt Voice If you regularly have trouble with Voice Service not recognize the numbers you say, try adapting digit dialing to your voice. -
Page 84: Reset Adapt Voice
After you echo the final prompt, “Adaptation complete” appears in the display and you are returned to the Adapt Voice menu. Reset Adapt Voice To reset Adapt Voice to factory default settings, do the following: From the Voice Service menu, tap Voice Command ➔... -
Page 85: Section 9: Tools
Section 9: Tools This section explains how to use your phone’s digital assistant functionality to schedule events, set reminders, perform calculations, and more. Tools Menu Tools is a suite of Personal Information Management (PIM) applications, such as a Calendar and Memo Pad, that run on your phone. -
Page 86: Bluetooth Options
If Bluetooth is off, you are prompted to “Turn bluetooth on?”. • To leave Bluetooth off and return to the Bluetooth menu, tap No . • To turn Bluetooth on, tap Yes. “Place device you are searching in discoverable mode” appears in the display. -
Page 87: Calendar
Calendar lets you view the current, past, or future month in a monthly calendar layout. While viewing the calendar, the current date is highlighted and days with scheduled events are surrounded by a box. From the Tools menu, tap Calendar. A calendar of the current month or week appears in the display with the current date highlighted. -
Page 88: View, Edit, And Erase Memos
When you’re finished entering details for the memo, tap Save. View, Edit, and Erase Memos From the Tools menu, tap Memo Pad. A list of memos appears in the display. • To view a memo, tap it. • To edit the memo you are viewing, tap Edit. •... -
Page 89: World Time
Use the Navigation key to highlight Dismiss, then press to silence the alarm. • If the alarm was set as a Daily alarm, the alarm icon remains in the top of the display. • If the alarm was set as a Mon.-Fri. alarm, the alarm icon remains in the top of the display. -
Page 90: Sketch Pad
The following options are available: • To begin or resume the stop watch count, tap Start. • To record a lap completion time, tap Lap. • To end or pause the stop watch count, tap Stop. • To erase the stop watch all and lap times recorded, tap Reset. Sketch Pad Sketch Pad lets you use your phone to freehand draw images and text. -
Page 91: Tip Calculator
• To “nest” calculations within a calculation, tap ( ) before and after parts of the calculation you want to perform first. Set the type of calculation you want to perform (division, multiplication, subtraction, or addition) by tapping the appropriate calculation operator (/, X, -, +). Enter the next number in your calculation using the touch screen keypad. -
Page 92: Currency - Reviewing/Editing Exchange Rates
Specify the units by tapping the down arrow button to the right of the quantity field. Available units pop-up in the display. Tap the desired units. A list of converted quantities appears below the entry field. Currency — Reviewing/Editing Exchange Rates The Currency Converter includes long-term average exchange rates as default values. -
Page 93: Section 10: Changing Your Settings
Section 10: Changing Your Settings This section explains how to customize your phone to suit your needs and preferences. Accessing Your Settings To access your phone’s settings from Standby mode, tap ➔ Menu Settings. The Settings menu appears in the display. -
Page 94: Sounds Settings
Calculator — Launches the Calculator tool. Clock — Shows the current time of day. Calendar — Launches the Calendar tool. Date — Shows the current day and date. Alarm Clock — Launches the Alarm Clock tool. Sketch Pad — Launches the Sketch Pad tool. Bluetooth —... -
Page 95: Alert Sounds
You can assign ringer types and melody tones for calls, alarms, and other alerts, in the Call Sounds sub-menu. From the Sounds Settings menu, tap Call Sounds. The following options appear in the display: • Call Ringtone — Lets you select which ringtone or sound file plays when you receive a voice call. -
Page 96: Service Alerts
Slide your finger around the Keypad Volume menu or press the Volume key (on the left side of the phone) Up or Down to select one the following volume settings: • Sound Off • Low • Medium Low Tap Set to save the setting. Service Alerts You can set your phone to sound an alert whenever you enter or leave your service area, every minute during a call, as well as... -
Page 97: Unlock Screen
Open the QWERTY keypad and enter a word or short phrase (up to 18 characters) to appear in your phone’s display while in Standby mode. (For more information, refer to “Entering Text” on page 16.) To save the new banner, tap Save. To discard your changes, tap Backlight You can set the backlight for your display or keypad to remain on... -
Page 98: Transition Effect
From the Display Settings menu, tap Unlock Screen. The following options appear in the display: • Lock Key Only — Only pressing the Lock key can awaken the display. • Any Key — Pressing any key can awaken the display. Tap the desired setting. -
Page 99: Airplane Mode
When set to On, Airplane Mode disables all radio functions of your phone, as required in sensitive environments (such as on board an aircraft). This prevents you from receiving or making calls (except emergency calls), but you can still use other features (such as the Camera-Camcorder and the Tools). -
Page 100: Phone Lock Setting
Use the Security menu to lock your phone, set up emergency numbers, enable or disable voice privacy, set restrictions, as well as other security options. From the Phone Settings menu, tap Security. The Enter Code keypad screen appears in the display. You’re prompted to enter the lock code. -
Page 101: System Select
• On Power Up — The phone locks automatically the next time your phone is powered ON. (The phone stays locked until you enter the lock code.) Tap the desired Phone Lock Setting. Lock Phone Now This setting locks the phone immediately. -
Page 102: Call Settings
Tap the desired NAM setting. The phone powers itself off and back on. PC Connection PC Connection lets you select the default type of PC connection you wish to use to exchange files between a PC and your r630. Tip: For more information on using PC Connection, contact your service provider. - Page 103 • Every 60 Seconds — Phone automatically re-dials a number every 60 seconds. • Off — Disables automatic re-dialing of numbers. Tap the desired setting. TTY Mode Your phone is fully TTY compatible. TTY equipment is connected to your phone through the headset connector on the left side of the phone.
-
Page 104: Memory Manager
The following options appear in the display: • Normal • Long — Can be useful with automated systems. Tap the desired setting. Memory Manager Memory Manager lets you quickly and easily review and manage your phone memory usage. From the Settings menu, tap Memory Manager. The following sections describe the Memory Manager options in detail. -
Page 105: Card Memory
Phone Memory sub-menus let you list files in your multimedia folders and let you erase or move files as needed to free up memory on your phone for reuse. From the Memory Manager menu, tap Phone Memory Pictures / Videos / Ringtones. A list of all files in the related folder appears in the display. -
Page 106: Formatting A Memory Card
Card Memory sub-menus let you list files in your multimedia folders and let you erase or move files as needed to free up space on your Memory Card for reuse. From the Memory Manager menu, tap Card Memory Pictures / Videos / Music. A list of all files in the folder appears in the display. -
Page 107: Phone Info
Phone Info options let you identify important information about your phone, such as the hardware and software versions of your phone, the meanings of your phones status icons, and the phone number assigned to your phone. Tip: This information can be very important to you when contacting Customer Care personnel. -
Page 108: Section 11: Health And Safety Information
Section 11: Health and Safety Information This section outlines the safety precautions associated with using your phone. These safety precautions should be followed to safely use your phone. Health and Safety Information Exposure to Radio Frequency (RF) Signals Certification Information (SAR) Your wireless phone is a radio transmitter and receiver. -
Page 109: Please Note The Following Information When Using Your Handset
For more information, refer to “Standard Limited Warranty” on page 125. Samsung Mobile Products and Recycling Samsung cares for the environment and encourages its customers to recycle Samsung mobile phones and genuine Samsung accessories. Go to: http://mobile.samsungusa.com/recycling/index.jsp or 1-800-822-8837 for more information. -
Page 110: Ul Certified Travel Adapter
The Travel Adapter for this phone has met applicable UL safety requirements. Please adhere to the following safety instructions per UL guidelines. FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY LEAD TO SERIOUS PERSONAL INJURY AND POSSIBLE PROPERTY DAMAGE. IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS. - Page 111 Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research.
-
Page 112: What Are The Results Of The Research Done Already
FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. -
Page 113: What Is Fda Doing To Find Out More About The Possible Health Effects Of Wireless Phone Rf
This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do - may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. -
Page 114: What About Children Using Wireless Phones
Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use. -
Page 115: What About Wireless Phone Interference With Medical Equipment
Studies have shown that these products generally do not work as advertised. Unlike "hand-free" kits, these so-called "shields" may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption. -
Page 116: Road Safety
International Commission on Non-Ionizing Radiation Protection: • http://www.icnirp.de Health Protection Agency: • http://www.hpa.org.uk/radiation US Food and Drug Administration: • http://www.fda.gov/Radiation-EmittingProducts/ RadiationEmittingProductsandProcedures/ HomeBusinessandEntertainment/CellPhones/default.htm Road Safety Your wireless phone gives you the powerful ability to communicate by voice, almost anywhere, anytime. But an important responsibility accompanies the benefits of wireless phones, one that every user must uphold. -
Page 117: Responsible Listening
Use your wireless phone to help others in emergencies. If you see an auto accident, crime in progress or other serious emergency where lives are in danger, call 9-1-1 or other local emergency number, as you would want others to do for you. Call roadside assistance or a special non-emergency wireless assistance number when necessary. - Page 118 You should follow some commonsense recommendations when using any portable audio device: Set the volume in a quiet environment and select the lowest volume at • which you can hear adequately. When using headphones, turn the volume down if you cannot hear the •...
-
Page 119: Operating Environment
National Institute for Occupational Safety and Health (NIOSH) 395 E Street, S.W. Suite 9200 Patriots Plaza Building Washington, DC 20201 Voice: 1-800-35-NIOSH (1-800-356-4647) 1-800-CDC-INFO (1-800-232-4636) Outside the U.S. 513-533-8328 Email: cdcinfo@cdc.gov Internet: http://www.cdc.gov 1-888-232-6348 TTY Internet: http://www.cdc.gov/niosh/topics/noise/default.html Operating Environment Remember to follow any special regulations in force in any area and always switch your phone off whenever it is forbidden to use it, or when it may cause interference or danger. -
Page 120: Fcc Hearing-Aid Compatibility (Hac) Regulations For Wireless Devices
Should turn the phone OFF immediately if there is any reason to • suspect that interference is taking place; Should read and follow the directions from the manufacturer of your • implantable medical device. If you have any questions about using your wireless phone with such a device, consult your health care provider. -
Page 121: Other Medical Devices
A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for best use. In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values equal M5. -
Page 122: Emergency Calls
Users are advised to switch the phone off while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress. -
Page 123: Fcc Notice And Cautions
FCC Notice The phone may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the phone if such interference cannot be eliminated. Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). -
Page 124: Product Performance
Getting the Most Out of Your Signal Reception The quality of each call you make or receive depends on the signal strength in your area. Your phone informs you of the current signal strength by displaying a number of bars next to the signal strength icon. -
Page 125: Battery Standby And Talk Time
Use only Samsung-approved batteries and recharge your battery only • with Samsung-approved chargers. When a charger is not in use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life. -
Page 126: Care And Maintenance
For safe disposal options for Li-Ion batteries, contact your nearest Samsung authorized service center. Always recycle. Do not dispose of batteries in a fire. Care and Maintenance Your phone is a product of superior design and craftsmanship and should be treated with care. - Page 127 Do not drop, knock or shake the phone. Rough handling can break • internal circuit boards. Do not use harsh chemicals, cleaning solvents or strong detergents to • clean the phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.
-
Page 128: Section 12: Warranty Information
Product; (j) any other acts which are not the fault of SAMSUNG; or (i) Product used or purchased outside the United States. This Limited Warranty covers batteries only if battery... - Page 129 (iii) the battery has been used in equipment other than the SAMSUNG phone for which it is specified. What are SAMSUNG's Obligations? During the applicable warranty period, SAMSUNG will repair or replace, at SAMSUNG's sole option, without charge to Purchaser, any defective component part of Product.
- Page 130 WRITTEN WARRANTY STATED HEREIN. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING...
-
Page 131: End User License Agreement For Software
SAMSUNG and should not be relied upon. Samsung Telecommunications America, LLC 1301 E. Lookout Drive Richardson, Texas 75082 Phone: 1-800-SAMSUNG Phone: 1-888-987-HELP (4357) ©2010 Samsung Telecommunications America, LLC. All rights reserved. - Page 132 8. TERMINATION. This EULA is effective until terminated. Your rights under this License will terminate automatically without notice from Samsung if you fail to comply with any of the terms and conditions of this EULA. Upon termination of this EULA, you shall cease all use of the Software and destroy all copies, full or partial, of the Software.
- Page 133 SAMSUNG AND ITS LICENSORS (COLLECTIVELY REFERRED TO AS "SAMSUNG" FOR THE PURPOSES OF SECTIONS 9, 10 and 11) HEREBY DISCLAIM ALL WARRANTIES AND CONDITIONS WITH RESPECT TO THE SOFTWARE, EITHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED...
-
Page 134: Precautions For Transfer And Disposal
To avoid unintended information leaks and other problems of this sort, it is recommended that the device be returned to Samsung’s Customer Care Center for an Extended File System (EFS) Clear which will eliminate all user memory and return all settings to default settings. - Page 135 Important!: If you are using a handset other than a standard numeric keypad, dial the numbers listed in brackets. Phone: 1-888-987-HELP (4357) © 2010 Samsung Telecommunications America. All rights reserved. No reproduction in whole or in part allowed without prior written approval. Specifications and availability subject to change without notice.
-
Page 136: Index
Index Numerics 2-Sec Pause Adding a New Contacts Entry Dial Method Adjust Key Tone Ringer Setting All calls log Battery Charging Low Battery Indicator Removal Travel Adapter Bluetooth Add New Device Connecting Device List Settings Turn On/Off Call Answer Call Answer Mode Call Block Call Functions Answering a Call... - Page 137 Contacts Add Pauses Adding a New Contacts Entry Edit Name and Numbers Opening Save a Number After a Call Contacts List Memory Create Messages Creating and Sending New Messages Picture Text Video Dialed calls log Display Screen Icons Display Settings Backlight Banner Dialing Font Size...
- Page 138 microSD Formatting Installing Removing Missed calls log Mode Call Answer Camcorder Camera Input Lock Silent Standby Talk Vibrate M-Ratings Msg Setting Sub Menu Multimedia Notes and tips Notes, description Number Type Icons Pause Dial Pauses, adding Personal Organizer Alarm Clock Calculator Calendar Memo Pad...
- Page 139 Call Settings Dialing Font Size Display Keypad Volume Language Location Lock Phone Memory Manager Phone Info Phone Settings Resetting Your Phone Restriction Ringer Type Security Security Settings Sounds System Select TTY Mode Voice Privacy Volume/Vibrate Wallpaper Shutter sound Silence Ringer Silent Mode Entering Exiting...
Need help?
Do you have a question about the P O R T A B L E D U A L - B A N D SCH-R630 and is the answer not in the manual?
Questions and answers
