Summary of Contents for RSC tonto

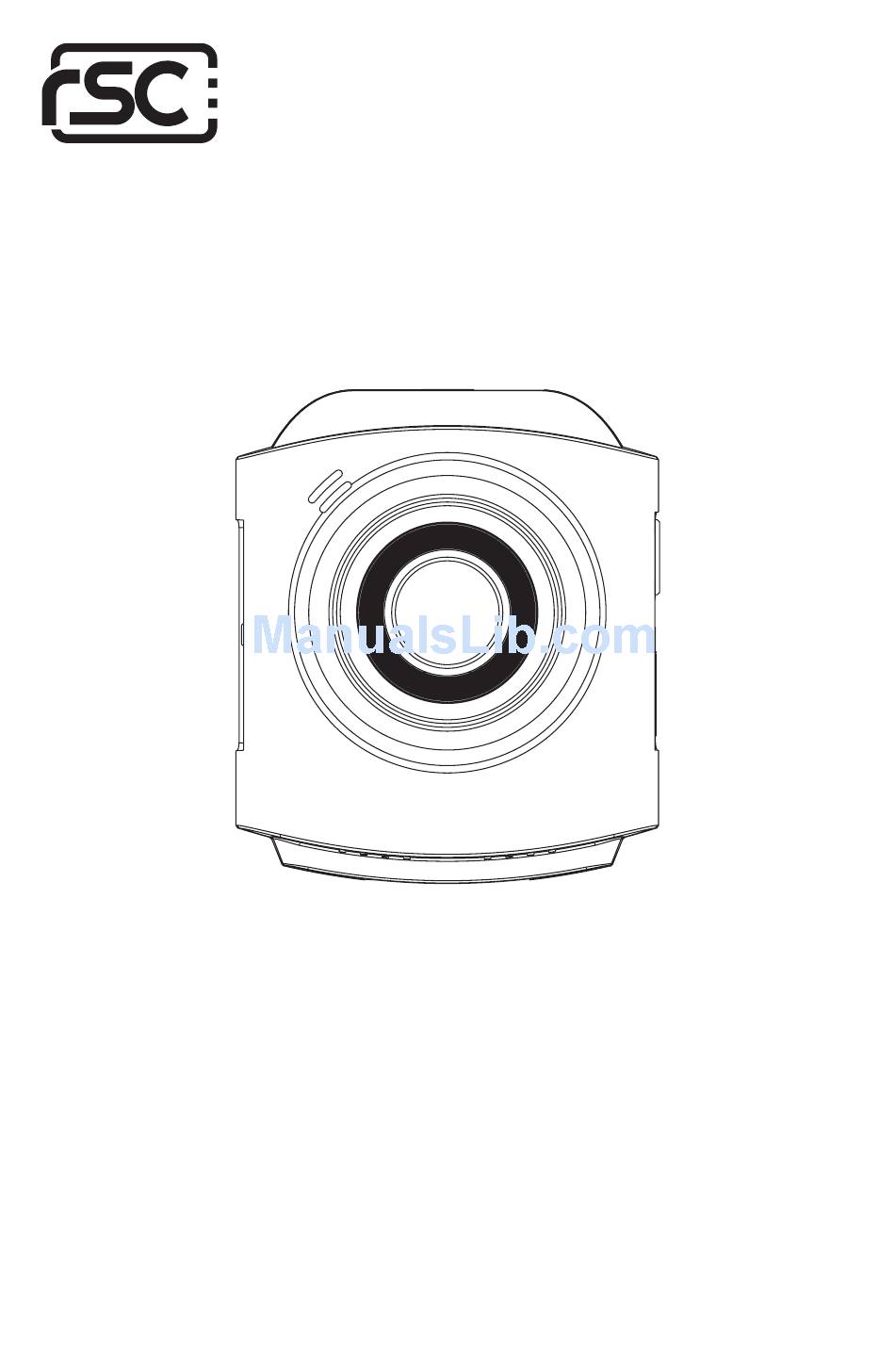

- Page 1 User Manual Copyright © 2018 RSC Labs Inc. All rights reserved...
-
Page 2: Table Of Contents
Table of Contents Page Box Contents............1 Camera Overview..........2-3 Installation............4-7 Insert memory card Attach mount to camera Remove Lens Protection Film Installing the camera Connect the power cable Adjust Camera Angle Organize the wiring Camera Operation..........8-9 Button usage and operation Initial Camera Setup Using the Camera.......... -
Page 3: Box Contents
Box Contents tonto Camera GPS Suction Cup Car Power Adapter Charging Cable Mount... -
Page 4: Camera Overview
Camera Overview Top View Speaker Camera Lens Power/ Screen Off Power Port Button Reset Button SD Card Slot Left view Front View Right view Microphone Bottom View... - Page 5 Camera Overview Record LED Power LED (Red) (Blue) Return / File Lock OK / Mute Up / Mode / Playback Down / Menu Back View LED Status Activity Status Solid Red Not Recording Record Flashing Red Video Recording (Red) Power Solid Blue Power connected.
-
Page 6: Installation
Installation 1. Insert memory card Insert a microSD memory card into the memory card slot located at the left side of the LCD screen. Be aware of the orientation shown in the picture below (Electrical contacts of the memory card should be facing the LCD display side of the cameram, with the notches of microSD card facing up.) When the memory card is successfully inserted, you will hear a ‘clicking’... -
Page 7: Remove Lens Protection Film
Installation 3. Remove Lens Protection Film Before installing the camera onto the windshield, remove the Protection lm from the camera lens. For best results, please try to avoid touching the camera lens with ngers, as ngerprints and/or oil may degrade image quality. 4. -
Page 8: Connect The Power Cable
Installation 5. Connect the power cable Connect the microUSB Cable end of the Charging Cable into the Suction Cup Mount’s GPS module. Carefully route the power cable around the windshield and tuck the wire under the trim. When complete, insert the Car Charger into your vehicle’s cigarette lighter port. -
Page 9: Organize The Wiring
Installation 7. Organize the wiring Hide the power cable by tucking the cable into the space between the seams of the vehicle headliner and the top of the windshield. Route the cable down from the side of the windshield... -
Page 10: Camera Operation
Camera Operation Button usage and operation The camera is primarily operated and controlled using buttons located at the bottom of the camera. Depending on the current mode of operation, the functions of the button will change accordingly. Listed below is a chart of how each button operates in different camera modes. -
Page 11: Initial Camera Setup
Camera Operation Initial Camera Setup Upon powering up the camera for the rst time, you will need to complete the initial setup process. 1. Select a Language 2. Setting Time & Date 4. Select Speed Unit 3. Select Timezone Upon completion of initial setup, the camera will enter normal video recording mode. -
Page 12: Using The Camera
Using the camera Powering On / Off The camera is designed to automatically power on when it receives power from the car power adapter. A start-up sound will be played when the camera has started successfully. Automatic: When the camera is ON, simply turn OFF the engine or unplug the power cable and the camera will switch OFF automatically. -
Page 13: Retrieving Your Videos
Using the camera Enable Screen Saver Manually To manually enable screen saver, press the Power button once, and the screen will turn off, while the camera is still recording video. Press any button on the camera to deactivate Screen Saver. Enable/Disable Audio Recording Audio recording can be enabled/disabled by pressing the “OK”... -
Page 14: Camera Settings
Camera Settings Settings Menu There are a total of 5 settings pages. These screens are numbered from 1 - 5. Each screen contains 4 settings. To change a setting, use the up/down arrow keys to navigate to the desired option, and press the OK button for selection. Please refer to examples shown below. - Page 15 Camera Settings Change display language of the camera Enable/Disable Parking Surveillence Mode Default: 0ff Enable/Disable Wide Dynamic Range for enhanced video quality Default: Off Erase all les stored on memory card Scheduled reminder to format memory card Revert all settings to factory defaults Provides information on rmware currently installed in camera...
- Page 16 Notes...
- Page 17 Notes...
-
Page 18: Notice
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RSC Labs Inc. declares that this Radio-Frequency peripheral is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. -
Page 19: Warranty
Notice Warranty This RSC product is warranted by RSC LABS to be free from defects in material and workmanship for one (1) year from the date of purchase. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE. During this period if this product is found to be defective in material or... -
Page 20: Contact
©2018 RSC Labs Inc. RSC and the RSC logo are trademarks or registered trademarks of RSC Labs Inc. Android, Google Play, and the Google Play logo are trademarks of Google LLC. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S.
