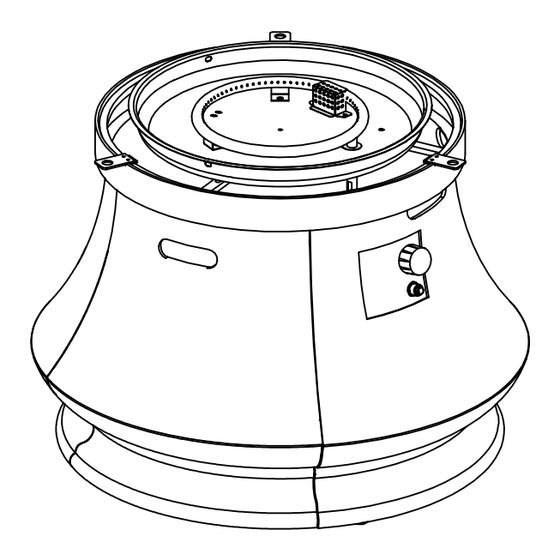

Amina Gas Table Base - Bronze
Item# 160188B AMB
Model# HYFP50095-113
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Read the owner's manual thoroughly before installing or servicing this
result causing property damage, personal injury or loss of life.
Save these instructions for future use. If you are
assembling this unit for someone else, give this
manual to him or her to read and save for the
future.
Owner's Manual
DANGER
If you smell gas:
1. Shut off gas to the appliance.
3. If odor continues, keep away from
the appliance and immediately call
WARNING
Do not store or use gasoline or other
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
WARNING
For outdoor use only.
e department.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Amina Gas Table Base and is the answer not in the manual?

Questions and answers

Related Manuals for Frontgate Amina Gas Table Base

Summary of Contents for Frontgate Amina Gas Table Base

  • Page 1 Amina Gas Table Base - Bronze Item# 160188B AMB Model# HYFP50095-113 DANGER If you smell gas: 1. Shut off gas to the appliance. 3. If odor continues, keep away from the appliance and immediately call e department. WARNING Do not store or use gasoline or other vicinity of this or any other appliance.

  • Page 2: Safety Information

    SAFETY INFORMATION Before you assemble or operate this unit, please carefully read this entire manual. Failure to do so may r WARNING The installation of this unit must adhere to local codes or either the National Fuel Gas Code, ANSI Z223.
  • Page 3 • Combustible material should not be within 72 inches of the top of the unit, or within 48 inches around the entire unit. vapors and liquids. • Do not add water into the unit. • Do not operate unit if any part has been under water. Immediately call a technician to inspect the appliance and replace any part of the control system and any gas control that has been under water.
  • Page 4 SAFETY INFORMATION Only use the regulator and hose assembly provided with this unit. Replacement parts must be supplied directly by Bond Manufacturing Co., Inc. Inspect the burner before use of this unit. If the burner shows any kind of damage, do not operate the appliance.
  • Page 5 CONTENTS Item Description Firebowl (preassembled) Body (preassembled) Drawer (preassembled) Burner (preassembled) Guard Lava Rocks 2 boxes Protective Cover Battery Control Knob (preassembled) Electronic Igniter (preassembled) Feet (preassembled) Table top (not included) Page 5...
  • Page 6 ASSEMBLY INSTRUCTIONS 1. Check that the control knob (I) for the gas supply system is turned to the “OFF” position before starting any assembly. 2. Put the table top (L) upside down on a soft clean carpet, and then position table base (B) on the table top.
  • Page 7 4. Turn the cylinder valve on the tank clockwise to close the propane tank. PRESSURE Attach the preassembled regulator RELIEF VALVE from the body (B) to the cylinder valve CYLINDER VALVE by turning the regulator coupling nut BLACK COUPLING NUT BLEED-OFF clockwise.
  • Page 8 ASSEMBLY INSTRUCTIONS Remove the rubber cap on the electronic ignit (J) by unscrewing and slide battery (H) into the battery slot. Make sure the positive side of the battery faces outwards. Screw the electronic ignit r cap (J) over the battery tightly. 8.

  • Page 9: Operation

    OPERATION Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “off” position. Brush a soap and water mixture on all connections. Turn the gas supply on; push the control knob in but do not ignite the unit, if bubbles occur on any connection there may be a leak.

  • Page 10: Maintenance

    MAINTENANCE • Before performing any maintenance always disconnect propane gas tank. • Keep the heating item free and clear from combustible materials. • Visually inspect burner for obstructions and keep tank enclosure free and clear from debris. • Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner and pumice stones/ are completely cooled down.

  • Page 11: Troubleshooting

    TROUBLESHOOTING Igniter pin and burner are wet Dry off with a soft cloth Igniter battery is incorrectly inserted Check which direction the battery is inserted g Co., Inc. for Heating unit won’t light a replacement part Electrode wire is loose or disconnected Reconnect wire to the igniter box located inside the table behind the igniter box Electrode wire is shorting between valve...

  • Page 12: Warranty

    Please contact the manufacturer for replacement parts. CONTACT Please contact one of our Product Specialists for assembly assistance or questions at 1-800-537-8484 or email ps@frontgate.com. Specialists are available weekdays 8:00 a.m. to 8:00 p.m. EST or Saturday 9:30 a.m. to 6:00 p.m. Page 12...
