Jensen JHDHBCB Installation Instructions

Introduction

Thank you for choosing a Jensen product. The JHDHBCB universal handlebar control allows convenient
Operation of compatible Jensen radios including volume adjustment, mode selection and basic functions of
available sources such as AM/FM tuner, Weather Band, Bluetooth, USB, iPod/iPhone, SiriusXM satellite
radio.

Installation

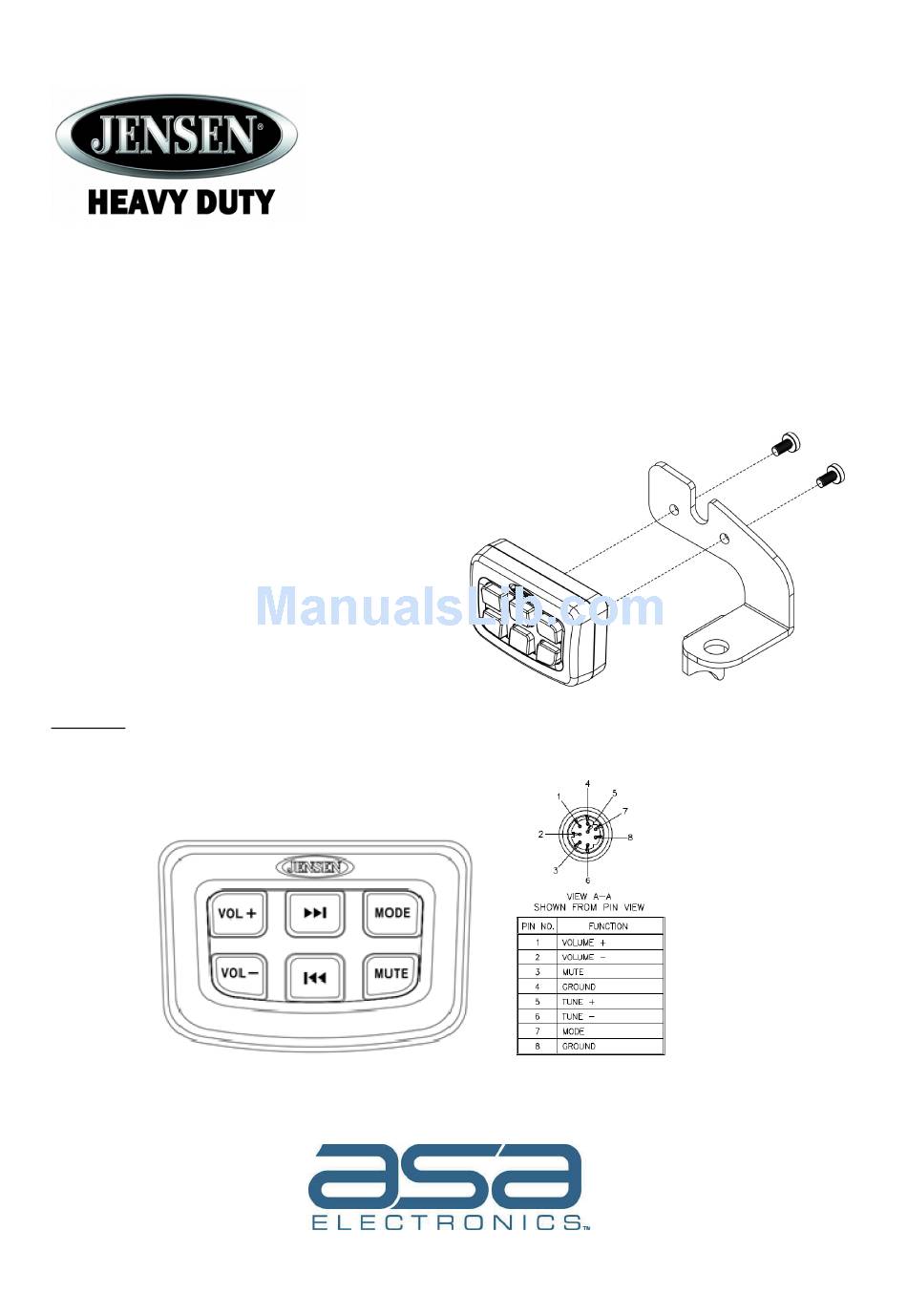

Installation method is shown as diagram.
1. Kit Includes 2pcs M4 x 8 Mounting Screws and
6pcs Cable Ties".
2. Custom mounting brackets sold separately.

Wiring

Once the remote has been mounted, route the cable
from the remote and connect the cable to the radio.
Note the connector polarity on the extension cable.
Important: When connecting the cables, be sure to route the extension cable away from sharp objects,
corners, and places where it might get pinched, as this could affect performance and cause damage to the
unit.
JHDHBCB Wired Remote
Installation Instructions
ASA Electronics Corporation
www.asaelectronics.com
www.jensenheavyduty.com
www.asaelectronics.com
©2017 ASA Electronics Corporation
©2013
v.200417
