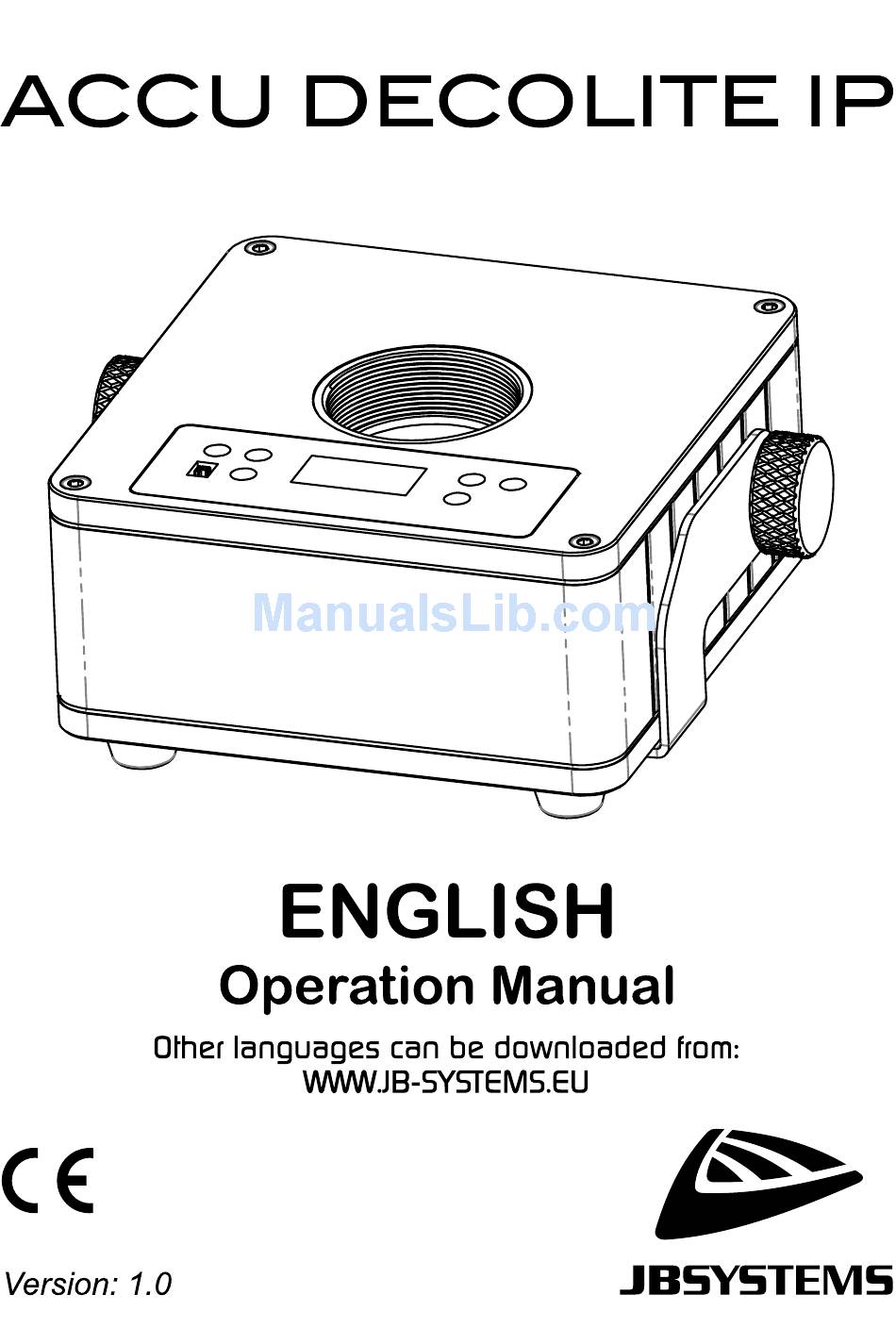

ENGLISH USER MANUAL OPERATION MANUAL ® Thank you for buying this JB Systems product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES •... -
Page 4: Safety Instructions
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately. • The housing and the lenses must be replaced if they are visibly damaged. • Please use the original packing when the device is to be transported. JB Systems 2/12 ACCU DECOLITE IP ®... -
Page 5: Overhead Rigging
• The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal. JB Systems 3/12 ACCU DECOLITE IP ®... - Page 6 15. Hole in the hanging bracket to fix the projector in truss, using a mounting hook. 16. Indicator for [Wireless DMX]. [Wireless DMX] is ON when this indicator lits. 17. Status LED shows [Wireless DMX]-mode (receiver, transmitter) 18. Battery capacity indicator 19. Valve JB Systems 4/12 ACCU DECOLITE IP ®...
-
Page 7: Electrical Installation
FOR WIRELESS OPERATION]) • Done Electrical installation for two or more units in DMX-mode: You can control the ACCU DECOLITE IP projector by wireless DMX. The projector’s wireless DMX protocol is fully compatible with “Wireless Solution Sweden”. WIRELESS SOLUTION • Switch all projectors on. -
Page 8: Setup Menu
Used to choose the desired color changing show. • Press the [■] button. • Press the ▲ or ▼ buttons until [ASC-] is shown on the display. • Press the [] button to select. JB Systems 6/12 ACCU DECOLITE IP ®... - Page 9 • Press the [] button to select. The display starts blinking. • Use ▲ and ▼ buttons to select the speed (A000…A255) • Once the desired value is selected, press [] to confirm. JB Systems 7/12 ACCU DECOLITE IP ®...
- Page 10 It will save you a lot of time and frustration: • Check information on the [ID] button (24) and status led (16). o Status LED (17) WHITE : unit is in setup mode or disconnected from any transmitter. JB Systems 8/12 ACCU DECOLITE IP ®...
- Page 11 SETTING UP IN TRANSMITTER MODE (LED = BLUE) • Keep the [ID] button (7) pressed while powering up the WIRELESS part of the ACCU DECOLITE IP by pressing the according button (2). The status LED will become WHITE shortly, than turns BLUE, RED or GREEN (the last selected mode).
-
Page 12: Dmx Charts
Master projector. D. Controlled by a wireless DMX-controller: • Turn on the wireless DMX controller. (for example : JB Systems LEDCON-XL (order code : 4661) + M-DMX Transceiver (order code : 4646) • Turn on all the units and put them in the desired channel mode. (4, 5, 9, 10 or [Ledc] : see DMX charts below). -
Page 13: User Manual
Dimmer 3 206-255 Dimmer 4 (slow) Ledcon 02Mk2-Mode: RGB + MASTER DIM/SOUND/STROBE Channel: Value: Function: Remarks 000-255 Red (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000=0% ~ 190=100% (full open) 000-190 Master dimmer JB Systems 11/12 ACCU DECOLITE IP ®... -
Page 14: Maintenance
10° Size: 172 x 138 x 62mm Weight: 1.69 kg Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.jb-systems.eu JB Systems 12/12 ACCU DECOLITE IP ®...
