Page 3: Before Use

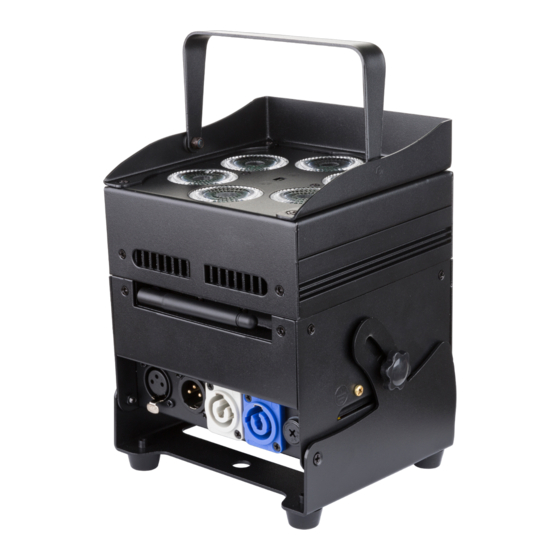

ENGLISH USER MANUAL OPERATION MANUAL ® Thank you for buying this JB Systems product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES •... -
Page 4: Safety Instructions
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately. • The housing and the lenses must be replaced if they are visibly damaged. • Please use the original packing when the device is to be transported. JB Systems ® 2/13 Accu Color... - Page 5 22. ▼ button : push this button to go down in the menu 23. [ENTER] button : push this button to confirm the selected setting 24. [Wireless ON/OFF] button : push this button to switch ON or OFF the wireless transmitter/receiver in the projector. JB Systems ® 3/13 Accu Color...
-
Page 6: Electrical Installation
Electrical installation for two or more units in DMX-mode: You can control the Accu Color by DMX in different ways, depending on your needs. You can go for a wired solution (using cables), you can go for a completely wireless solution or you can go for a combination of both…... - Page 7 • Same as the MIXED solution but the first unit in the chain also receives the DMX-signal from a DMX- cable plugged in its DMX-input connector. Note: when a DMX-signal is detected on the DMX-input connector, this “wired” DMX-signal will take precedence over the wireless DMX-signal. JB Systems ® 5/13 Accu Color...
-
Page 8: Using The Transparant Cover
Used to choose to select one of the preprogrammed colors or fades when used in standalone or master/slave mode. All projectors will always show an identical output. • Press the [MENU] button. • Press the ▲ or ▼ buttons until [Pr--] is shown on the display. JB Systems ® 6/13 Accu Color... - Page 9 • Press the ▲ or ▼ buttons until [UL--] is shown on the display. • Press the [ENTER] button to select. The display starts blinking. • Use ▲ and ▼ buttons to select the speed (U000…U255) JB Systems ® 7/13 Accu Color...
- Page 10 • Press the [MENU] button. • Press the ▲ or ▼ buttons until the display shows [UErn]. • Press the [ENTER] button. The display starts blinking and shows the version [UE2.0]. • Press the [MENU] button to leave. JB Systems ® 8/13 Accu Color...
- Page 11 To disconnect an individual receiver from a DMX universe / transmitter: • Press the [ID-SET] button (13) of the receiver until the status LED (15) is WHITE. • This receiver is now disconnected from the transmitter (DMX universe). JB Systems ® 9/13 Accu Color...
-
Page 12: Dmx Charts
The JBS LEDCON-02 Mk2 controller can only be used in standalone or master/slave mode. Connect the controller to the DMX-input of the first unit (master). Make sure that the Accu Color projectors are all set to channel mode [LEDc]. Now you can control all the connected units in 4 or 8channel mode. Refer to the user manual of the JBS LEDCON-02 Mk2 controller for more information. -
Page 13: User Manual
Color fading 160-191 Open-close-open (colors) 192-223 Color changing 224-255 Sound Speed automatic modes 000-255 SPEED AUTOMATIC MODES 0% -100% 000-005 Uses the nodE setting 006-055 Dimmer 0 (fast) 056-105 Dimmer 1 Dimmer 2 106-155 JB Systems ® 11/13 Accu Color... -
Page 14: Maintenance
16A max. (be aware for current peeks at start up!) Rechargeable battery: 11,1Vdc / 15600 mAh (lithium) Sound Control: Internal microphone DMX connections: XLR 3pin LEDs: 6 LEDs 5IN1 10W Beam angle: 22° Size: 167 x 138 x 185mm Weight: 3.7 kg JB Systems ® 12/13 Accu Color... - Page 15 ENGLISH USER MANUAL Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.jb-systems.eu JB Systems ® 13/13 Accu Color...
