Service Jacks

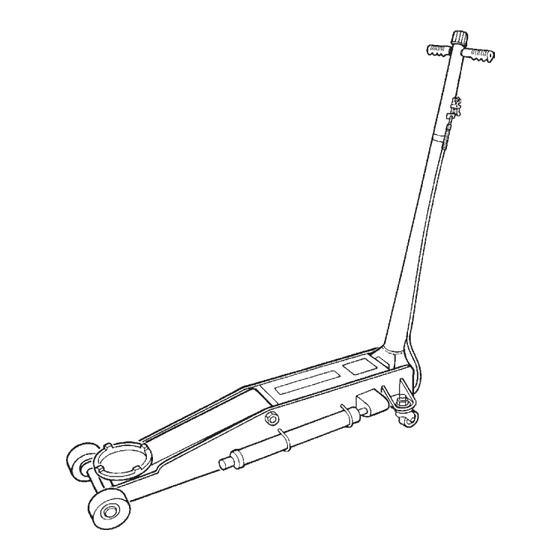

Operating Instructions & Parts Manual
Model Number
HW93657
HW93667 (Air/Manual)
HW93660
HW93662 (Air/Manual)
Model No. HW93657 & HW93660
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
HW93657-M0 rev A
Capacity
4 Ton
4 Ton
10 Ton
10 Ton
Model No. HW93667 & HW93662
10939 N. Pomona Ave. Kansas City, MO 64153
customerservices@heinwerner-automotive.com
Made in the
U.S.A.
SFA Companies

Advertisement

Table of Contents
loading

Related Manuals for HEIN-WERNER AUTOMOTIVE HW93667

Summary of Contents for HEIN-WERNER AUTOMOTIVE HW93667

  • Page 1 10 Ton Model No. HW93657 & HW93660 Model No. HW93667 & HW93662 This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

  • Page 2: Safety And General Information

    Gross Length Wheel Pressure for Weight Width Rated Load HW93657 219 lb. 4 Ton 5" 25-3/4" 49" 15" HW93667 140 psi 233 lb. HW93660 420 lb. 10 Ton 6-3/4" 25-1/2" 53-1/2" 20 1/2" HW93662 140 psi 435 lb. WARNING WARNING •...
  • Page 3 5. All necessary hardware is assembled loosely onto the jack. Instructions 1. For HW93657 and HW93667: (see figure 1) Remove the retaining rings and the handle pin from the jack base that connects through the handle fork. For HW93660 and HW93662: (see figure 2) Remove Clamp Lock Pliers Here the 5/8"-18 bolts and the handle pin from the jack...

  • Page 4: Operation

    Air Motor Caster Front Wheel Figure 3 - Model HW93657 & HW93660 Nomenclature Figure 4 - Model HW93667 & HW93662 Nomenclature OPERATION Lifting Only attachments and/or adapters supplied by the manufacturer shall be used. Lift only on areas of the vehicle as specified by the vehicle manufacturer.

  • Page 5: Maintenance

    MAINTENANCE Important: Use only a good grade hydraulic jack oil. Avoid mixing different types of fluid and Never use brake fluid, turbine oil, transmission fluid, motor oil or glycerin. Improper fluid can cause failure of the jack and the potential for sudden and immediate loss of load.
  • Page 6 Model HW93657 Replacement Parts Illustration Part I (refer to parts list on page 8) 234696 241982 241990 Handle Assembly 234695 227399 228354 Figure 5 - Parts Illustration for Model HW93657...
  • Page 7 Model HW93657 Replacement Parts Illustration Part II - Hydraulic Unit (refer to parts list on page 8) 230583 Assembly 203199 (1/4” O.D.) Figure 6 - Parts Illustration for Model HW93657 (Hydraulic Unit)
  • Page 8 (refer to figures on page 6 & 7) Model HW93657 Replacement Parts List Part# Description Qty. Part# Description Qty. Part# Description Qty. 200003* Gasket 221742 Ball Stop Plug (3/4" L) 1 230583 Ram Assy. 200472 Screw 221764* Ram Quad Ring 231316 Vent Valve Assy.
  • Page 9 Model HW93660 Replacement Parts Illustration Part I (refer to parts list on page 11) 230006 ` 241551 214538 244253 244317 230407 Figure 7 - Parts Illustration for Model HW93660...
  • Page 10 Model HW93660 Replacement Parts Illustration Part II - Hydraulic Unit (refer to parts list on page 11) 245119 229956 229900 Figure 8 - Parts Illustration for Model HW93660 (Hydraulic Unit)
  • Page 11 (refer to figures on page 9 & 10) Model HW93660 Replacement Parts List Part# Description Qty. Part# Description Qty.. Part# Description Qty. 200003 Gasket 220769 Cross Pin 229927 Cap Housing 200472 Bolt 221739 Poppet 229929 Bearing 201110 Lockwasher 221742 Ball Stop Plug 229932 Spring 201115...
  • Page 12 Model HW93662 Replacement Parts Illustration Part I (refer to parts list on page 14) 229999 Figure 9 - Parts Illustration for Model HW93662...
  • Page 13 Model HW93662 Replacement Parts Illustration Part II - Hyd. Unit (refer to parts list on page 14) Note: Poppet valve operates until it reaches 150 psi. then the Poppet valve opens & allows the high presure circuit to open for raising the load. Figure 10 - Parts Illustration for Model HW93662 (Hydraulic Unit)
  • Page 14 Model HW93662 Replacement Parts Illustration Part III - Air Hyd. Pump CAUTION Do not overtighten. 229754 tube must not Piston Assembly protude into I.D. pump cylinder 35100007 Piston Figure 11 - Parts Illustration for Model HW93662 (Air Hyd. Pump) (refer to figures on page 12, 13 & 14) Model HW93662 Replacement Parts List Part# Description...
  • Page 15 Model HW93662 Replacement Parts List (Cont.) Part# Description Part# Description Part# Description 221938 Roll Pin 230008 Bracket 227713 Lockwasher 222095 Release Stem Assy. 1 228235 Cotter Pin 230010 Caster 222098 Speed Pump Assy. 230011 Spacer 228813 Washer 230407 Universal Assy. 222201* Spring 228814# Gland Nut...
  • Page 16 Model HW93667 Replacement Parts Illustration Part I (refer to parts list on page 18) 241990 Figure 12 - Parts Illustration for Model HW93667...
  • Page 17 Model HW93667 Replacement Parts Illustration Part II - Hyd. Unit (refer to parts list on page 18) Figure 13 - Parts Illustration for Model HW93667 (Hyd. Unit)
  • Page 18 Model HW93667 Replacement Parts Illustration Part III - Air Hyd. Pump Piston Assembly 242162 BJ479096 35100007 Figure 14 - Parts Illustration for Model HW93667 (Air Hyd. Pump) (refer to figures on page 16, 17 & 18) Model HW93667 Replacement Parts List...
  • Page 19 Model HW93667 Replacement Parts List (cont.) Part# Description Part# Description Part# Description 234696 Parallel Link Pin 233917* Plastic Spring 226353* Spring 233921 Release Stem 221829 226366 Hex Head Bolt 234976 Cap Housing 221937 Turning Knob 226372 Spring 221938 Roll Pin...

  • Page 20: Two Years Limited Warranty

    TWO YEARS LIMITED WARRANTY For a period of two (2) years from date of purchase, SFA Companies will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship under normal usage. This limited warranty is a consumer's exclusive remedy.
