Power adapter
(A different type, or no power
adapter is supplied, depend-
ing on the version.)
Optional OPC-515L*
(for power source)
or CP-23L (for 12 V
cigarette lighter socket)
can be used instead of
the power adapter.
*
OPC-515L Porality
White line:
Black line :
Chraging indicator
Orange: Charging
Green: Normal charging is completed
Orange or green (blink):
There is a problem with the battery
pack and/or the charger.
NOTE: The battery charger, BC-171, has a
charging timer which stops charging after approx-
imately 16 hours of charging is performed.
D Specifications
• Dimensions:
(projections not included)
• Weight (approximately):
• Usable temperature range: 10˚C ~ 45˚C, 50˚F ~ 113˚F
All stated specifications are subject to change without notice or obligation.
Icom is not responsible for the destruction or damage to the Icom transceiver, if the malfunction is
because of:
• Force majeure, including, but not limited to, fires, earthquakes, storms, floods, lightning, other
natural disasters, disturbances, riots, war, or radioactive contamination.
• The use of Icom transceivers with any equipment that is not manufactured or approved by Icom.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in the United States, the
United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand and/or other countries.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan

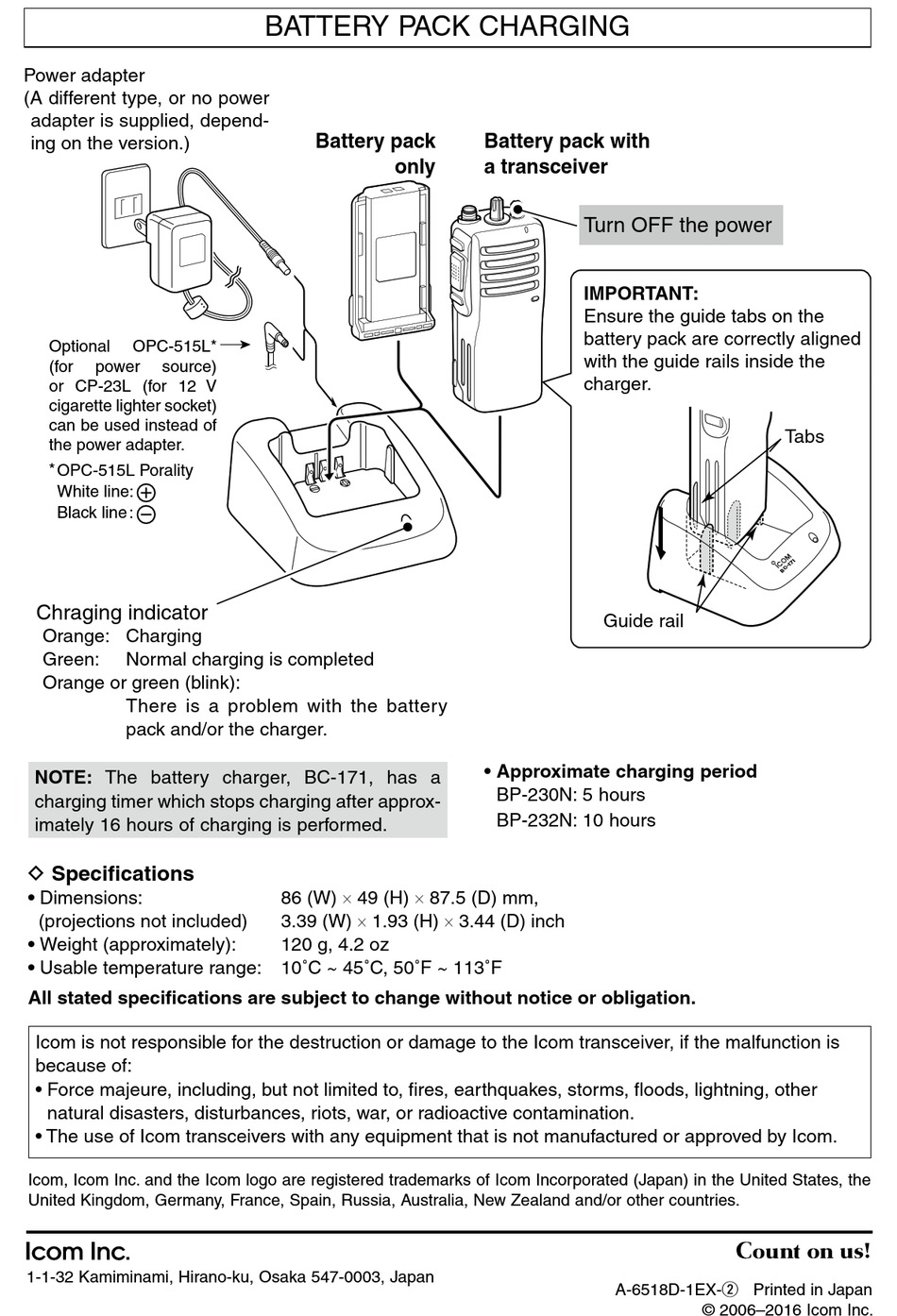

BATTERY PACK CHARGING
Battery pack
only
86 (W) × 49 (H) × 87.5 (D) mm,
3.39 (W) × 1.93 (H) × 3.44 (D) inch
120 g, 4.2 oz
Battery pack with
a transceiver
Turn OFF the power
IMPORTANT:
Ensure the guide tabs on the
battery pack are correctly aligned
with the guide rails inside the
charger.
Guide rail
• Approximate charging period
BP-230N: 5 hours
BP-232N: 10 hours
