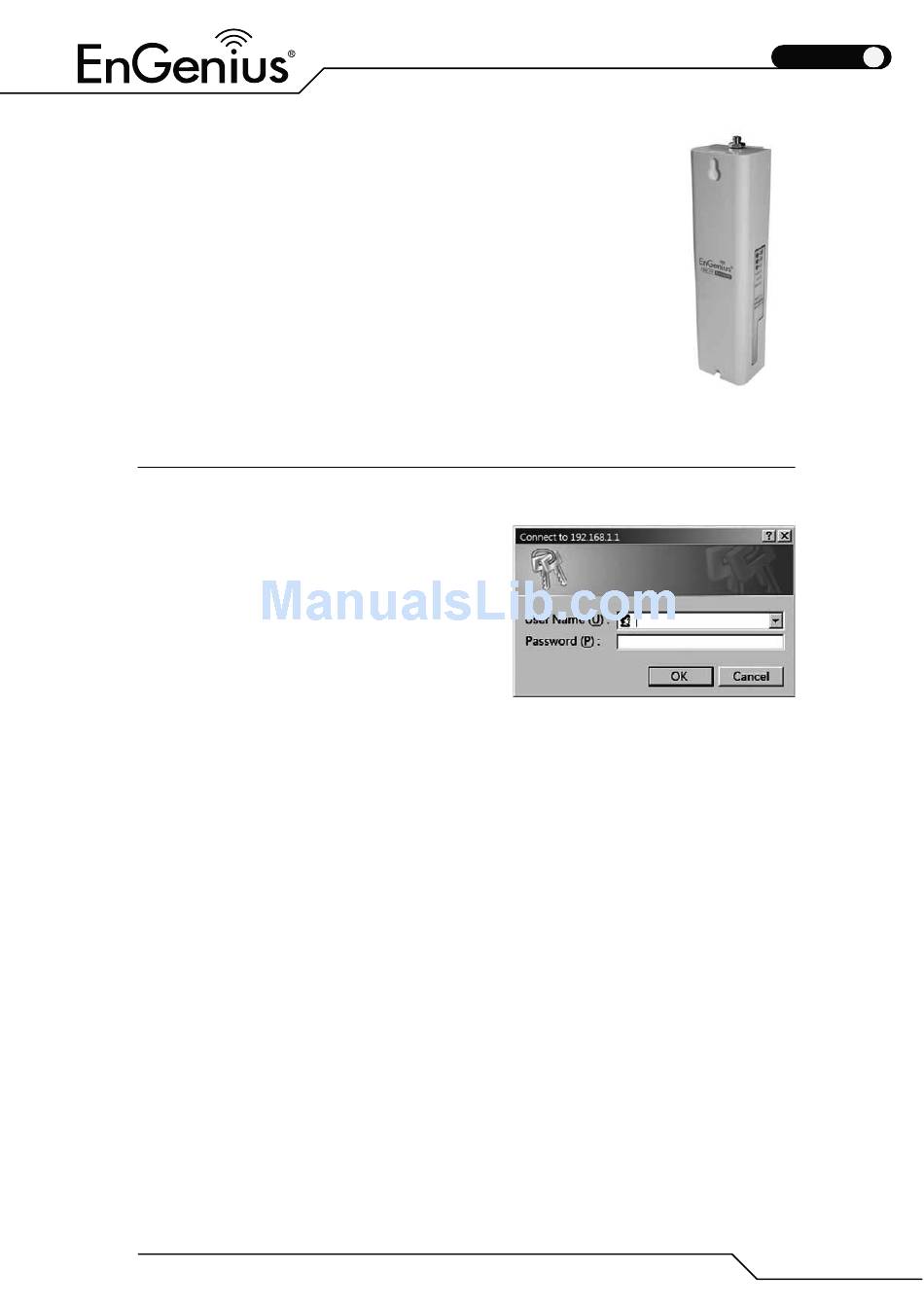

EnGenius EOC5510 Quick Start Manual

EOC5510
EOC5510 is a long range outdoor wireless Access Point / Client Bridge that
operates in 5GHz frequency. It provides high bandwidth up to 54Mbps and
features high transmitted output power as well as superior sensitivity. EOC5510
extends radio coverage, avoids unnecessary roaming between Access Points and
ensures a stable wireless connection while reduces the number of required
equipments.
EOC5510 provides user friendly interface including user friendly distance control
ranges from 1KM up to 30KM and RSSI LED indicator offering real time signal
status. It comes with PoE injector for convenient outdoor installation.
EOC5510 enforces transmission security with full support of latest encryption
mechanism including 64/128/152-bit WEP, WPA and WPA2. With 10dBi internal antenna and superior
performance, EOC5510 makes an optimal wireless solution for both small and large scale projects.
IP Address Configuration
The default IP address of the device is
192.168.1.1. In order to log into this device, you
must first configure the TCP/IP settings of your
PC/Notebook.
1. In the control panel, double click Network
Connections and then double click on the
connection of your Network Interface Card
(NIC). You will then see the following
screen.
2. Select Internet Protocol (TCP/IP) and then
click on the Properties button. This will
allow you to configure the TCP/IP settings
of your PC/Notebook.
3. Select Use the following IP Address radio
button and then enter the IP address
(192.168.1.21)
(255.255.255.0). Ensure that the IP address
and subnet mask are on the same subnet as
the device.
4. Click on the OK button to close this window,
and once again to close LAN properties
window.
Logging In
1. To configure the device through the
web-browser, enter the IP address of the
Bridge (default: 192.168.1.1) into the
address bar of the web-browser and
press Enter.
2. After connecting to the IP address, the
web-browser will display the login page.
Specify admin as the default User Name
Q i u k c S a t t r G u d i e
R f e r e o t U s r e s ' M a
4Gon www.4Gon.co.uk info@4gon.co.uk Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299
Wireless Access Point & Clent Bridge
and subnet
v 1 . 0 .
n u a f l r o c o m p e l e t n i t s u r t c o i n s
and Password, and then click on the Login
button.
Administration
1. Click on the Administration link under the
Management section. This option allows
you to modify for a new user name and
mask
password on the device. For security it is
highly recommended for security reasons.
2. Name: Specify a user name into the first
field.
3. Password: Specify a password into this field
and then re-type the password into the
Confirm Password field. Then click on the
Apply button.
4. Click on the Apply button to save the
changes.
System Properties
1. Click on the System Properties link on the
System section. This feature allows you to
configure the device as an Access Point or
Repeater.
2. Device Name: Specify a name for the
device – this is not the SSID.
a
802.11
Quick Start Guide
