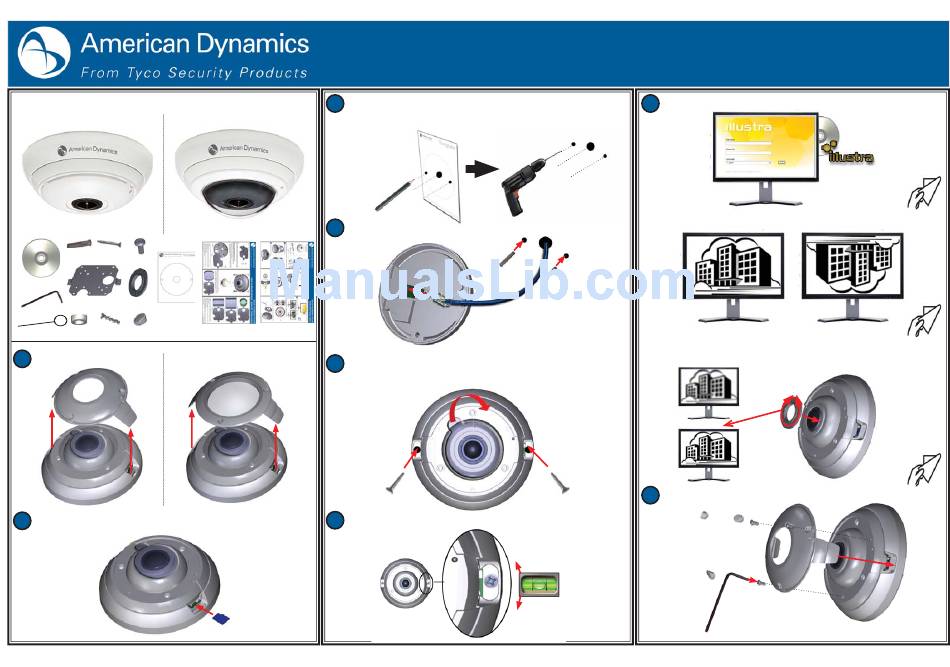

American Dynamics ADCi825-F312 Quick Installation Manual

What's in the box?
ADCi825-F312
1x
2x 2x
3x
1x
1x 1x
1x 1x
1x 2x 2x 3x
1
Remove the camera cover
2
Insert MicroSD Card (if required)
Use the template to mark the holes then drill. If you are using the
3
Mounting Bracket, refer to 8200-1031-03 Attach the Mounting
ADCi825-F311
Bracket Quick Installation Guide
1x 4
Insert the rawl plugs and connect the Ethernet cable
1x 1x
5
Attach the camera using the supplied screws and remove the
plastic fi lm from the lens
6
Adjust the horizontal alignment (if required)
7
NOTE:
For transient protection we recommend
that shielded cable is used for the
installation.
8
+ / - 5 °
Quick Installation Guide
Illustra 825 Fisheye Camera
Please turn over for Installation and Confi guration procedures
Refer to Set Mounting Option for camera; wall or ceiling
Wall Ceiling
Refer to Manually Adjust Focus
Focus should only to be adjusted if required
+ / - 45°
Attach the camera cover, secure the screws and insert the plastic
covers
© 2013 Tyco Security Products. All Rights Reserved
8200-1031-02 A0
