INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.

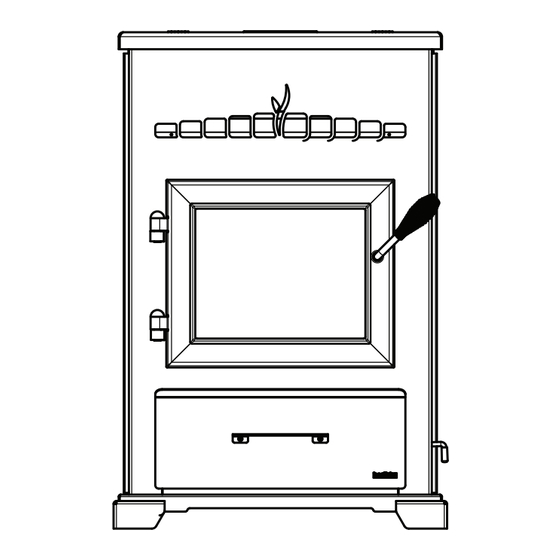

PELLET BURNING APPLIANCE
MODEL(S):
ECO-ADV-PS35
ECO-ADV-PS50
ECO-CAB50
CAUTION
Check building codes prior to installation.
•
Installation MUST comply with local, regional, state
and national codes and regulations.
•
Consult local building, fire officials or authorities
having jurisdiction about restrictions, installation
inspection, and permits.
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
1
Installation Manual
Installation & Appliance Set-Up
NOTICE: DO NOT DISCARD THIS MANUAL
If the information in these instructions is not
followed exactly, a fire could result causing
property damage, personal injury, or death.
•
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
•
Do not over fire - If appliance or chimney connector
glows, you are over firing. Over firing will void your
warranty.
•
Comply with all minimum clearances to combustibles
as specified. Failure to comply may cause house
fire.
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
fireplace.
•
Alert children and adults to hazards of high
temperatures
•
High temperatures may ignite clothing or other
flammable materials.
•
Keep clothing, furniture, draperies and other
flammable materials away.
Tested and approved for wood pellets, Burning of any
other type of fuel voids your warranty.
To obtain a French translation of this manual, please
contact your dealer or visit www.heatilator.com.
Pour obtenir une traduction francaise de ce manuel, s'il
vous plait contacter votre revendeur ou visitez
www. heatilator.com.
7058-205K
WARNING
WARNING
CAUTION
NOTE
August 21, 2018
Advertisement
Table of Contents
Related Manuals for Heatilator ECO CHOICE ECO-ADV-PS35
Summary of Contents for Heatilator ECO CHOICE ECO-ADV-PS35
- Page 1 To obtain a French translation of this manual, please qualified personnel. Hearth & Home Technologies recommends HHT Factory Trained or NFI certified professionals. contact your dealer or visit www.heatilator.com. Pour obtenir une traduction francaise de ce manuel, s’il vous plait contacter votre revendeur ou visitez www.
-
Page 2: Table Of Contents
G. Equivalent Feet of Pipe ....20 H. Pipe Selection Chart ..... . . 20 Heatilator is a registered trademark of Hearth & Home Technologies. 7058-205K... -
Page 3: Important Safety Information
NOTICE: This installation must conform with local codes. In the absence of local codes you must comply with the ASTM E1509-04, ULC S627-00, (UM) 84-HUD and ULC/ORD-C-1482. The Heatilator ECO Choice Pellet Appliance meets the U.S. Environmental Protection Agency’s emission limits for pellet appliances sold after May 15, 2015. -
Page 4: Glass Specifications
HEATILATOR ECO-CHOICE I. Stove Composition C. Glass Specifications These pellet burning stoves are made of steel, cast iron or This appliance is equipped with 5mm ceramic glass. a combination of both with a ceramic viewing glass. These Replace glass only with 5mm ceramic glass. Please stoves incorporate a self-feeding system including a fuel contact your dealer for replacement glass. -
Page 5: Getting Started
HEATILATOR ECO-CHOICE Install Guide Getting Started A. Design, Installation & Location Considerations must consider the location of: 1. Appliance Location • Windows • Air Intakes Notice: Check building codes prior to installation. • Air Conditioner • Overhang, soffits, porch roofs, adjacent walls •... -
Page 6: Thermostat Wall Control Location
HEATILATOR ECO-CHOICE B. Thermostat Wall Control Location WARNING The thermostat wall control’s location will have some affect on the appliance’s operation. Risk of Fire! • Maximum wire length from appliance is 100 feet • Damaged parts could impair safe operation. -
Page 7: Install Checklist
HEATILATOR ECO-CHOICE E. Install Checklist ATTENTION INSTALLER: Follow this Standard Work Checklist This standard work checklist is to be used by the installer in conjuction with, not istead of, the instructions contained in this installation manual. _________________________________________________________________________________ Customer: ______________________________________________________________________________ Date Installe:... -
Page 8: Dimensions And Clearances
HEATILATOR ECO-CHOICE Dimensions and Clearances A. Appliance Dimensions - ECO-ADV-PS35 22-1/4 (565) 2-3/8 8-3/4 (60) (223) 31-3/4 (806) 22-15/16 (711) (583) 24-13/16 24-13/16 (630) (630) 20-1/4 (514) Figure 7.1 - Top View Figure 7.2- Front View 4-3/8 (111) 3-1/8 (79) -
Page 9: Appliance Dimensions - Eco-Adv-Ps50
HEATILATOR ECO-CHOICE B. Appliance Dimensions - ECO-ADV-PS50 24-1/4 24-1/4 (616) (616) 9-3/4 2-3/8 (248) (60) 35-3/4 (908) 26-7/16 (672) (813) 28-5/16 (719) 20-1/4 (514) Figure 8.1 - Top View Figure 8.2- Front View 4-3/8 (111) 3-1/8 (79) 31-5/8 (803) 29-5/8... -
Page 10: Appliance Dimensions - Eco-Cab50
HEATILATOR ECO-CHOICE C. Appliance Dimensions - ECO-CAB50 2-3/8 (60) 23-3/4 (603) 36-1/2 (927) 24-1/2 (622) Figure 9.1 - Top View Figure 9.2- Front View 25-7/8 (657) 4-3/8 (111) 3-1/8 (79) 30-1/8 (765) (711) (228) 26-3/4 (681) Figure 9.4 - Side View with Top Vent Adapter Figure 9.3 -Side View... -
Page 11: Clearances To Combustibles (Ul And Ulc)
HEATILATOR ECO-CHOICE D. Clearances to Combustibles (UL and ULC) Installations with 3 to 3 inch Top Vent Adapter Straight Back Against Wall Inches Millimeters Vertical Installation Inches Millimeters Back Wall to Appliance Back Wall to Adapter Side Wall to Appliance... -
Page 12: Hearth Pad Requirements - Ps35
HEATILATOR ECO-CHOICE E. Hearth Pad Requirements - PS35 (UL and ULC) USA INSTALLATIONS: A non-combustible floor protection EMBER PROTECTION: It is necessary to install a Type I is recommended extending beneath the flue pipe when floor protector. installed with horizontal venting or under the Top Vent Adapter with vertical installation. -
Page 13: Hearth Pad Requirements - Ps50
HEATILATOR ECO-CHOICE F. Hearth Pad Requirements - PS50 (UL and ULC) EMBER PROTECTION: It is necessary to install a Type I USA INSTALLATIONS: A non-combustible floor protection floor protector. is recommended extending beneath the flue pipe when installed with horizontal venting or under the Top Vent Floor protector must be non-combustible material, Adapter with vertical installation. -
Page 14: Hearth Pad Requirements - Cab50
HEATILATOR ECO-CHOICE G. Hearth Pad Requirements - CAB50 (UL and ULC) EMBER PROTECTION: It is necessary to install a Type I USA INSTALLATIONS: A non-combustible floor protection floor protector. is recommended extending beneath the flue pipe when installed with horizontal venting or under the Top Vent Floor protector must be non-combustible material, Adapter with vertical installation. -
Page 15: Alcove
HEATILATOR ECO-CHOICE H. Alcove Installations Into Alcove All minimums listed are to a combustible surface. Model: Minimum Maximum PS35 Inches Millimeters Inches Millimeters A Height 51-3/4 1314 B Width 50-1/4 1276 C Depth 1219 Side Wall E Top Mantel Depth... -
Page 16: Vent Information
HEATILATOR ECO-CHOICE Vent Information A. Venting Termination Minimum Requirements Electrical Service Inside Corner FIXED FIXED OPEN CLOSED CLOSED OPEN J or K Figure 12.1 Termination Cap Restricted Area Air Supply Inlet Gas Meter All minimum clearances are listed with an Outside Air Kit (OAK) installed, unless otherwise noted in table below. -
Page 17: Avoiding Smoke And Odors
HEATILATOR ECO-CHOICE B. Avoiding Smoke and Odors appliance to immediately turn off and may create conditions where smoke will back draft into the house. Negative Pressure, Shut-Down and Electrical Power In order to reduce the likelihood of smoke back drafting... -
Page 18: Negative Pressure
HEATILATOR ECO-CHOICE C. Negative Pressure NOTICE Negative pressure results from the imbalance of air available for the appliance to operate properly. It can be Hearth & Home Technologies assumes no responsibility strongest in lower levels of the house. for the improper performance of the chimney system caused by: •... -
Page 19: Venting Termination Requirements
HEATILATOR ECO-CHOICE F. Venting Termination Requirements 1. Termination must exhaust above air inlet elevation. 2. Distance from doors and opening windows, or gravity or ventilation air inlets into building: a. Not less than 48 inches (1.2m) below; b. Not less than 48 inches (1.2m) horizontally from;... -
Page 20: Equivalent Feet Of Pipe
HEATILATOR ECO-CHOICE G. Equivalent Feet of Pipe WARNING The table below can help you calculate the equivalent feet of pipe which is a method used to determine pellet vent Vent surfaces get HOT, can cause burns size (Figure 19.1). if touched. Non-combustible shielding or guards may be required. -
Page 21: Venting Systems
HEATILATOR ECO-CHOICE Venting Systems A. Through The Wall NOTE: In Canada, where passage through a wall or Horizontal termination cap must be a minimum of 6 partition of combustible construction is desired, inches. (152mm) from the wall. Approved for mobile home the installation shall conform to CAN/CSA-B365 installations. -
Page 22: Vertical Into Existing Class A Chimney
HEATILATOR ECO-CHOICE B. Vertical into Existing Class A Chimney We strongly recommend a minimum of 60 inches (1.5m) vertical, however above the eve is Rain Cap preferred. Both installations are approved for mobile home installations. Must use 3 or 4 inch (76 to 102mm) “L” or Flashing “PL”... -
Page 23: Masonry
HEATILATOR ECO-CHOICE WARNING Fire Risk Inspection of Chimney: • Masonry chimney must be in good condition. • Meets minimum standard of NFPA 211 • Factory-built chimney must be a minimum 6 inch (152mm) UL103 HT. E. Masonry Fireclay flue Concrete Cap... -
Page 24: Appliance Set-Up
HEATILATOR ECO-CHOICE Appliance Set-Up A. Outside Air Kit 1. Measure distance from floor to air vent opening in appliance and mark location on wall. There are two Outside Air Kits available for purchase with 2. Use a saw to cut opening in wall: this appliance. -
Page 25: Top Vent Adapter Installation
HEATILATOR ECO-CHOICE C. Rear Vent Adapter Installations B. Top Vent Adapter Installation 1. Put a layer of high temperature silicone on the 3 inch (76mm) exhaust outlet. Do not put silicone inside of 3 to 3 inch Top Vent Adapter pipe (Figure 22.1). -
Page 26: Thermostat Installation
HEATILATOR ECO-CHOICE D. Thermostat Installation CAUTION 1. A low voltage thermostat is required to operate this pellet appliance. You may use the included wall mount thermostat (Figure 23.2) or purchase an optional Shock hazard. programmable thermostat or remote control. It is •... -
Page 27: Mobile Home Installation
HEATILATOR ECO-CHOICE Mobile Home Installation You must use a Quadra-Fire Outside Air Kit for CAUTION installation in a mobile home. THE STRUCTURAL INTEGRITY OF THE MOBILE 1. An outside air inlet must be provided for the HOME FLOOR, WALL AND CEILING/ROOF MUST BE... -
Page 28: Reference Materials
HEATILATOR ECO-CHOICE Reference Materials A. Service & Maintenance Log Date of Service Performed By Description of Service 7058-205K August 21, 2018... -
Page 29: Accessory List - Ps35
HEATILATOR ECO-CHOICE B. Accessory List - PS35 ECO-ADV-PS35 Service Parts Beginning Manufacturing Date: Apr 2010 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Stocked Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. -
Page 30: Accessory List - Ps50
HEATILATOR ECO-CHOICE C. Accessory List - PS50 ECO-ADV-PS50 Service Parts Beginning Manufacturing Date: Apr 2010 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Stocked Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. -
Page 31: Accessory List - Cab50
HEATILATOR ECO-CHOICE D. Accessory List - CAB50 ECO-CAB50 Service Parts Beginning Manufacturing Date: May 2011 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Stocked Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. - Page 32 Hearth & Home Technologies 352 Mountain House Road Halifax, PA 17032 Division of HNI INDUSTRIES Please contact your Heatilator dealer with any questions or concerns. For the number of your nearest Heatilator dealer log onto www.heatilator.com CAUTION DO NOT DISCARD THIS MANUAL...
