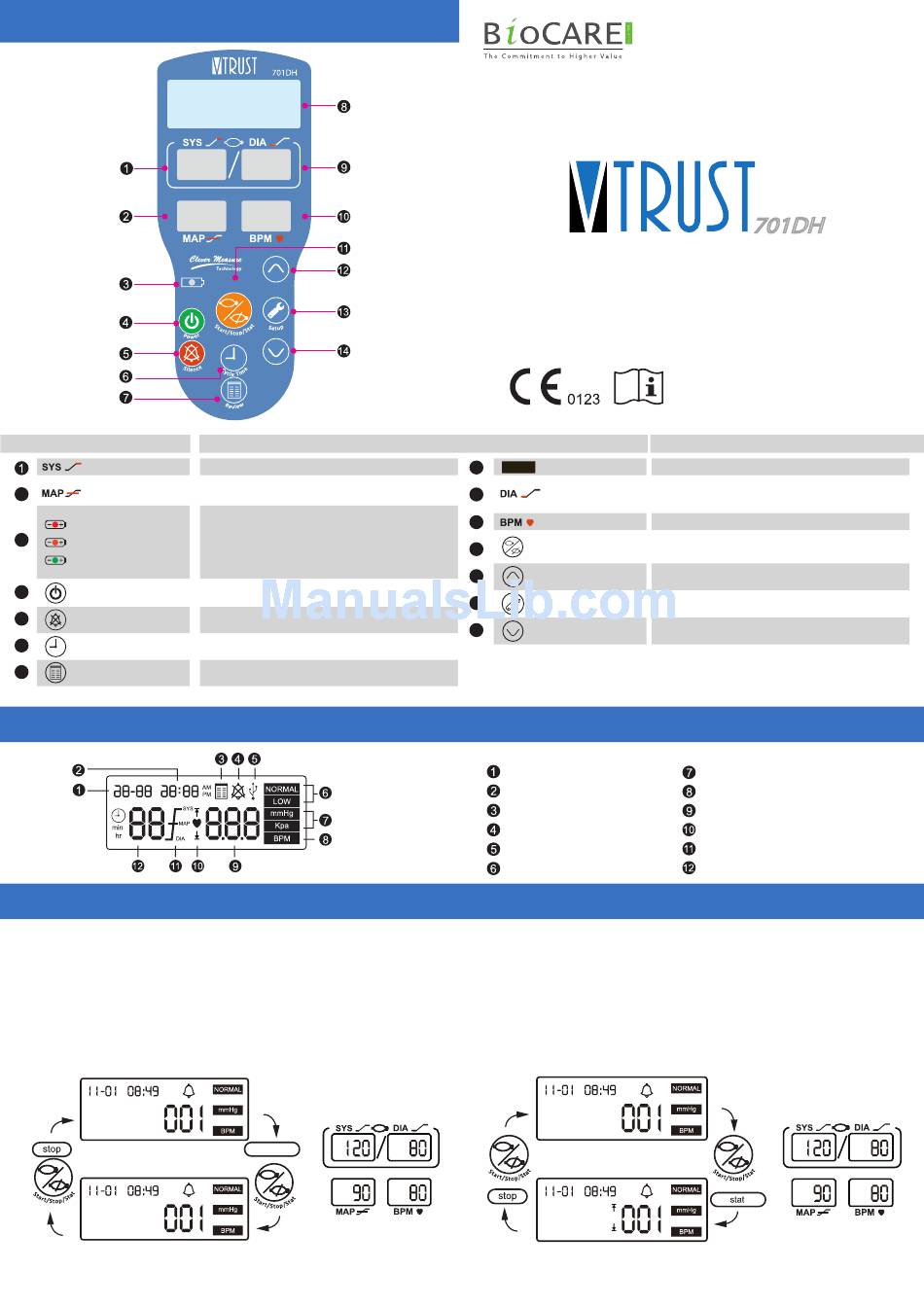

Biocare VTRUST 701DH Quick Start Manual

Monitor Front View
Monitor Front View Key
Systolic pressure
2
Mean arterial pressure
3
Battery status indicator
4
Power on/off key
5
Warning silence key
6
Cycle time key
7
Review key
LCD Drawing
Measurement Mode
Press the "Start/Stop/Stat" button to start a measurement.
The monitor might take second measurement when detect
an unexpected motion signal during the first measurement
period.
Function
Systolic pressure measurement
Mean arterial pressure measurement
○Red light : Indicates when approximately one hundred NIBP
measurements remain. If battery power falls below a level consistent
with reliable operation, the device will automatically turn off.
The battery must then be recharged.
○ Orange light : Connecting the battery charger with the device and
the batteries are charging.
○ Green light : The batteries are fully charged.
○ Press briefly to turn power on.
○ Press and hold for 3 seconds to turn power off.
○ Press this key for silence.
Press this key momentarily to activate the NIBP cycle time menu.
Press key again, a second time, to step through cycle time selctions.
Press this key to review stored data.
start
H a n d h e l d N o n - I n v a s i v e B l o o d
P r e s s u r e ( N I B P ) M o n i t o r
Monitor Front View Key
8
LCD display
9
Diastolic pressure
10 Heart Rate
NIBP Start/
11
Stop/Stat
12
Up key
13
Setup key
14
Down key
Date
Time
Review Data
Warning Silence
USB Connecting
Measurement Mode
Stat Measurement Mode
Press the "Start/Stop/Stat" button for 3 seconds to activate
the "Stat" measurement mode. VTRUST 701DH will continue
measure the blood pressure within 5 minutes during
"Stat measurement mode".
701DH
Quick Start Guide
Function
LCD display
Diastolic pressure measurement
Heart Rate measurement
○ NIBP measurement start key.
○ Press the key again to cancel a NIBP measurement.
○ Press and hold the key for 3 secs the monitor in STAT mode.
Press this key to scroll up through sub selections.
Press this key to setup the functions or parameters.
Press this key to scroll down through sub selections.
BP Unit
Pulse Rate Unit
Measure/Memory Sequence
Pulse Rate Symbol
Warning Linit Range
Cycle Time
